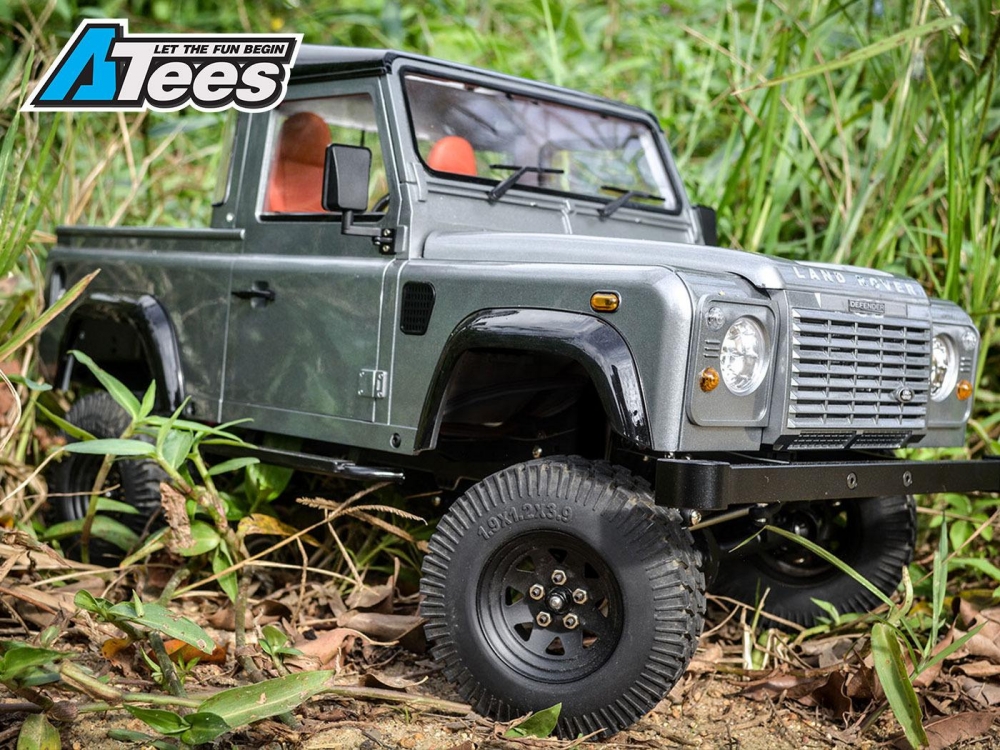

 Team Raffee Co. 1/10 D90 Chassis Kit (Without Wheels Tires Shocks) w/ Defender D90 Pickup Hard Body

Miscellaneous All

The RC Hardware That You Can Trust
PART: #BRQD90KIT/PU
OUR INVENTORY:
Out Of Stock
USD $334
SALE!
USD $314
Best Price Guarantee


CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

TAGGED CATEGORIES:
PRODUCT INFORMATION:
  • D90 Metal Chassis Kit. Front 3-link setup with CMS and Panhard mount. Rear runs links as well. These three new kits come unassembled.

    Includes Team Raffee Co. Scale Axles, steel front and rear driveshafts, transmission, T-case, aluminum links, HD gears, battery plate, mounts, skid plate, bumpers, shock towers and receiver box. Does not come with shocks, wheels and tires.

    Recommended shocks length 80mm to 90mm and 1.9 wheels with tires not exceeding 96mm.

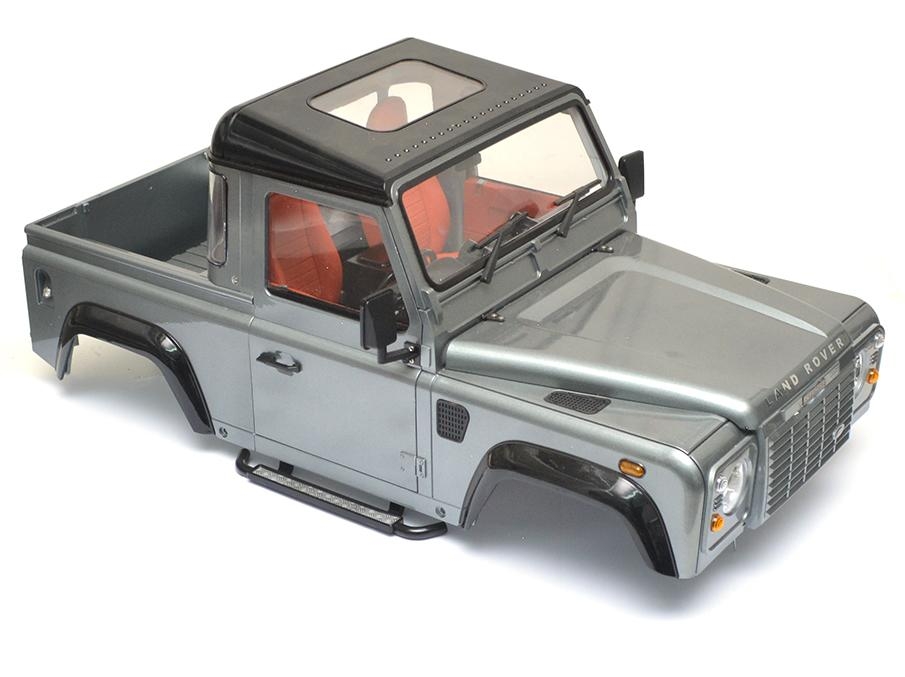

    This combo comes with  Team Raffee Co. body D90 Pickup body.

    Specification:

      • Scale 1:10
      • Comes with Team Raffee Co. Scale Axles
      • Over 45-degree steering angle
      • 27/10T heavy-duty helical axle gears and input shafts
      • Heavy Cast Knuckles
      • Overall length (bumper to bumper): 434mm
      • Wheelbase: variable 282-287 mm
      • Frame width: 85mm (outside) 73mm (inside)
      • Front bumper width: 195mm
      • Rear bumper width: 190mm
      • Body post width: 190mm
      • Body post distance hole to hole: 138mm
      • Mainly all parts in 6061 alloys assembled
      • Full metal internal gears in axles
      • Full metal internal gears in the transmission
      • Full metal internal gears in the transfer case
      • HD universal driveshafts
      • Aluminum M3 upper and lower links, drag link, and Panhard link
      • Stainless steel steering tie rod link
      • 4x cast metal adjustable shock mounts
      • 4x aluminum shock extension
      • 1x helical pinion gear
      • 1x helical main gear
      • 4x 12mm aluminum hex
      • Full ball bearings

    Includes:
    • D90 Chassis (without tires/wheels/shocks)
    • Defender D90 Pickup Body

    To complete this chassis you will need:
    • 2-channel radio system
    • Steering servo
    • Electronic Speed Controller (ESC)
    • Motor
    • Battery & Charger
    • Wheels & Tires
    • Shocks


    Directions:
    When you receive the car, do not put electronics and battery on it immediately and run it immediately. Inspect the vehicle and take it apart, including the axles, which you need to shim them and grease them properly. Check all of the screws to make sure they are tightened and nothing is loose.

    Note:
    The photo is for reference only. Accessories are extra options. The body comes unpainted. Price includes body and chassis. Electronics are not included.

  • Package total weight: 4380.00 grams (incl. packaging)
  • Package size: 26.00 x 48.00 x 40.00cm
  • Factory description: Team Raffee Co. 1/10 Defender D90 Chassis Kit With TRC Raffee Pickup Hard Body
  • Manufactured by Team Raffee Co.
  • Manufacturer number: BRQD90KIT/PU
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it!
Report An Error

1/10 D90 Chassis Kit (Without Wheels Tires Shocks) w/ Defender D90 Pickup Hard Body by Team Raffee Co.
