PRODUCT INFORMATION:

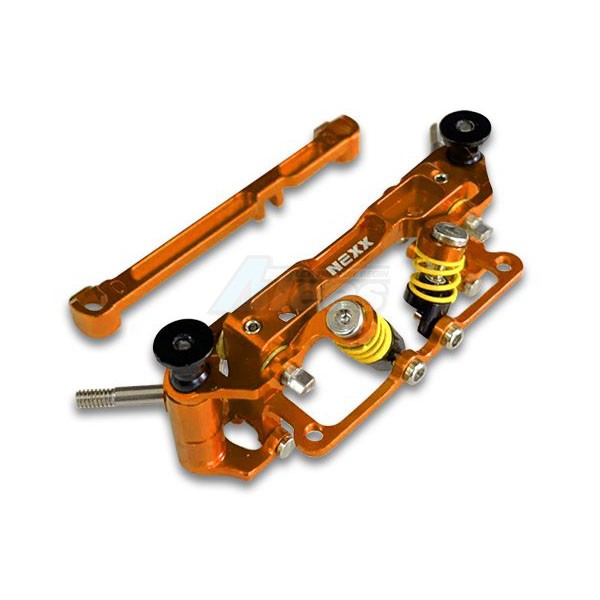

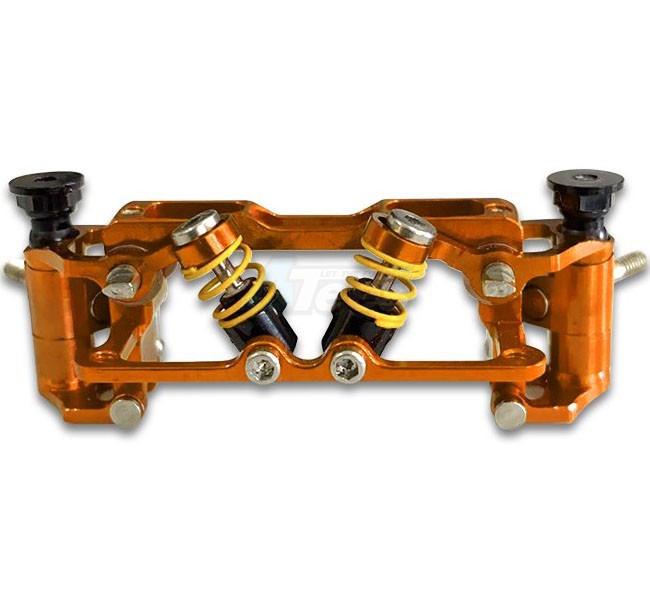

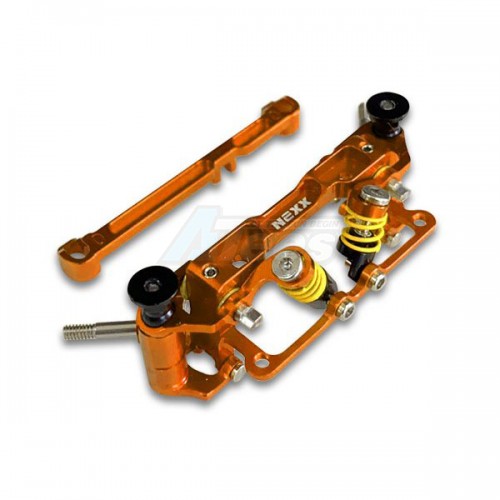

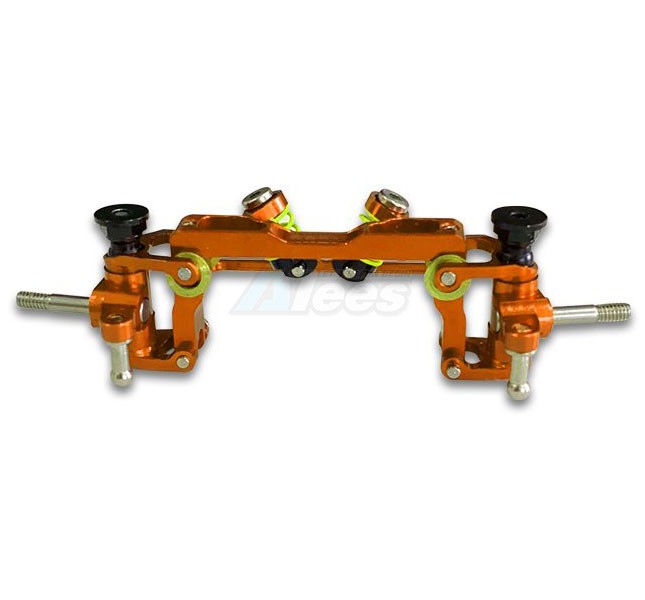

NEXX RACING Narrow V-line Front Suspension system is designed with innovative features such as, quick adjustable camber, adjustable ride height…. It makes the Mini-Z looks much like a real car, not only fast but also stable, better cornering and better suspension overall.
With locknuts and kingpins, V-LINE is designed to minimize most of the play resulting very smooth performance. The V-LINE suspension systems fits only Mini-Z MR03 Narrow base models and also fits PN 2.5 Chassis. For easy assembly, we pre-install the Narrow V-LINE suspension system at factory so it’s very easy and fast to assembly it on the Mini-Z.
Features:
Narrow V- line suspension is designed with 2 V-shaped suspension forks to bring you a cool suspension system·
Same width as stock. (MR02N/ MR03N/ PNR2.5 Chassis )
Suspension movement use ball joints instead of sliding knuckle and locknut easy adjustment play between knuckle and upper arm make joints will not pop out even during hard collision.·
Adjustable camber from 0-3 degrees with 4 position eccentric shaft with easy operation·
Adjustable caster by shims from 1-2 degrees ·
Ride height adjustment with turn of a screw·
Tie rods toe 0 degree included ·
High quality Precision CNC Swiss 7075 aluminum
Narrow Body combine : http://kyosho.com/mini-z-info/support/body-specifications/
Package total weight: 30.00 grams (incl. packaging)
Factory description: Nexx Racing Kyosho Mini-Z MR-03 Narrow V-Line Front Suspension System (Orange)
NEXX RACING Narrow V-line Front Suspension system is designed with innovative features such as, quick adjustable camber, adjustable ride height…. It makes the Mini-Z looks much like a real car, not only fast but also stable, better cornering and better suspension overall.
With locknuts and kingpins, V-LINE is designed to minimize most of the play resulting very smooth performance. The V-LINE suspension systems fits only Mini-Z MR03 Narrow base models and also fits PN 2.5 Chassis. For easy assembly, we pre-install the Narrow V-LINE suspension system at factory so it’s very easy and fast to assembly it on the Mini-Z.
Features:
Narrow V- line suspension is designed with 2 V-shaped suspension forks to bring you a cool suspension system·
Same width as stock. (MR02N/ MR03N/ PNR2.5 Chassis )
Suspension movement use ball joints instead of sliding knuckle and locknut easy adjustment play between knuckle and upper arm make joints will not pop out even during hard collision.·
Adjustable camber from 0-3 degrees with 4 position eccentric shaft with easy operation·
Adjustable caster by shims from 1-2 degrees ·
Ride height adjustment with turn of a screw·
Tie rods toe 0 degree included ·
High quality Precision CNC Swiss 7075 aluminum
Narrow Body combine : http://kyosho.com/mini-z-info/support/body-specifications/
Product weight: 30.00 grams
Factory description: Nexx Racing Kyosho Mini-Z MR-03 Narrow V-Line Front Suspension System (Orange)
