PART: #PH/S15-Y
|
**Discount shipping applies to this item.
|
|
||||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:

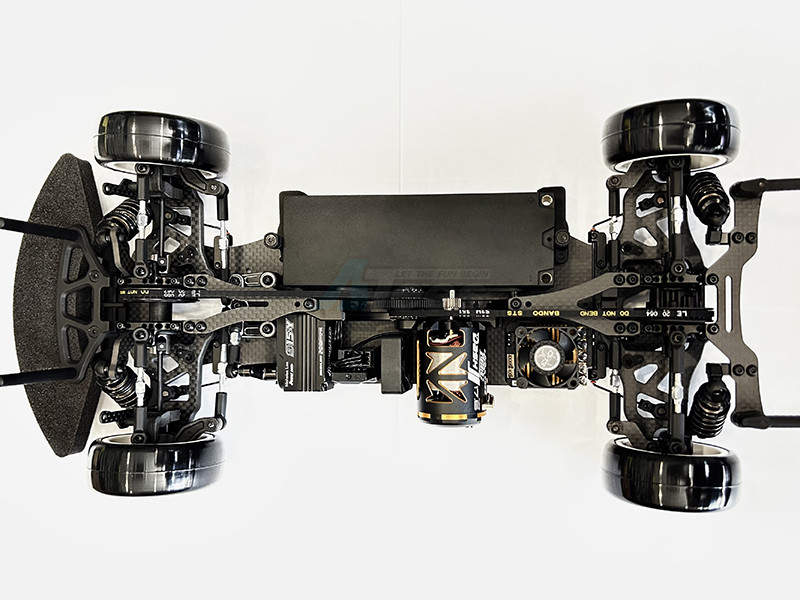

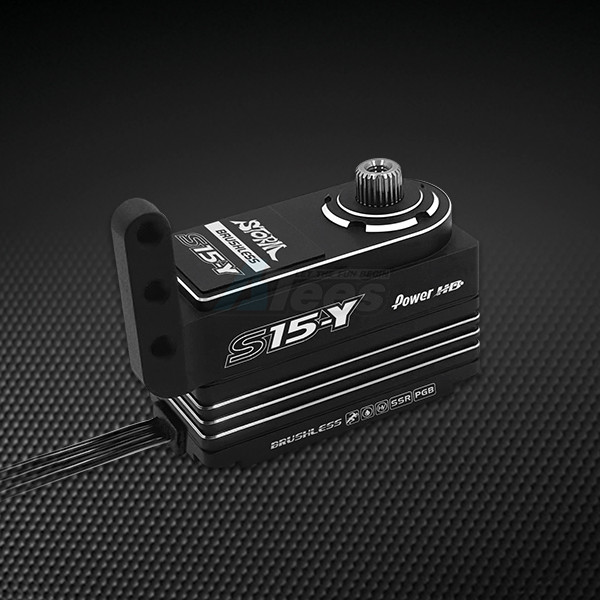

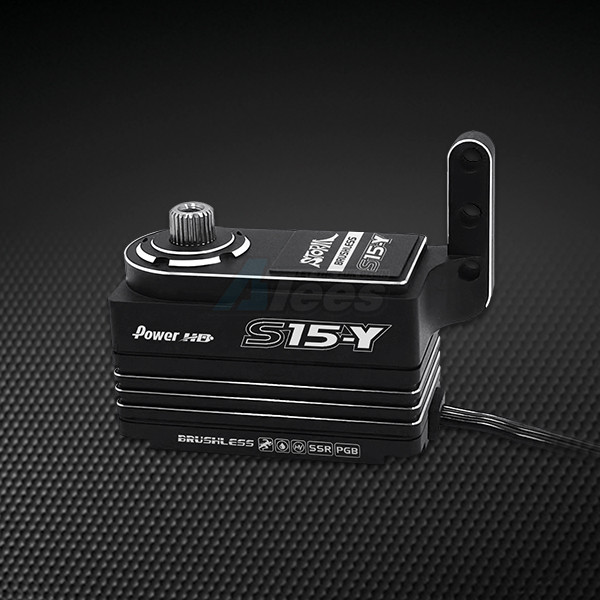

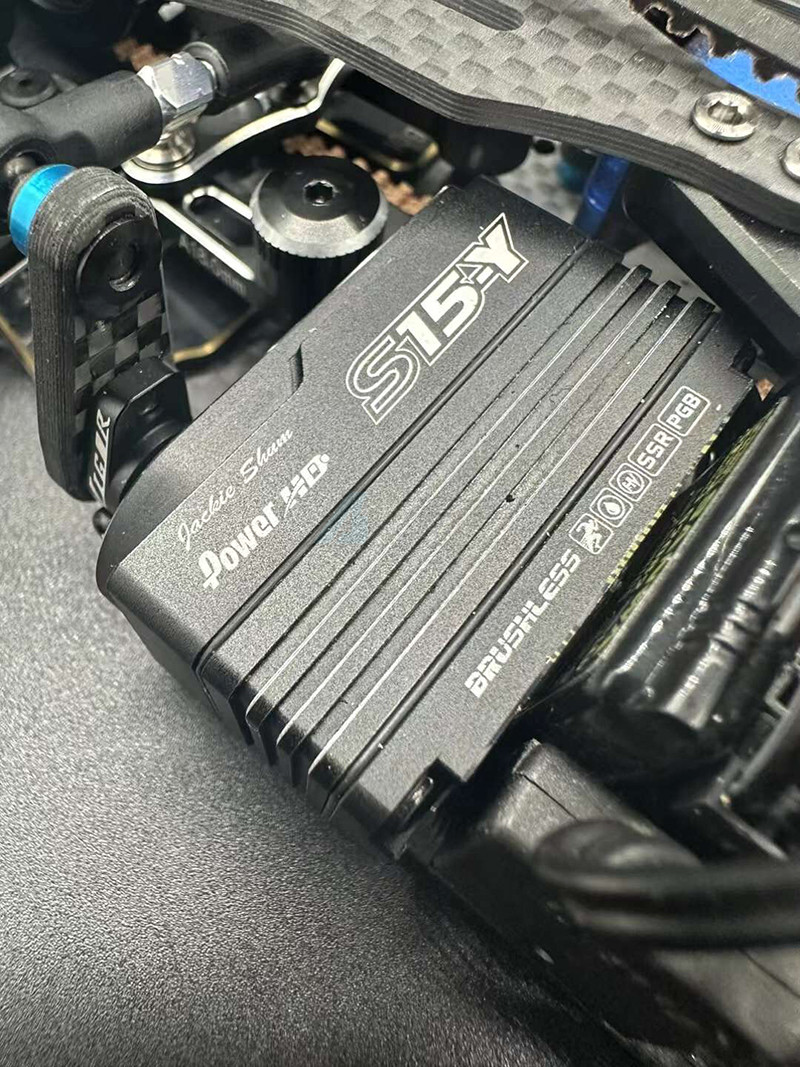

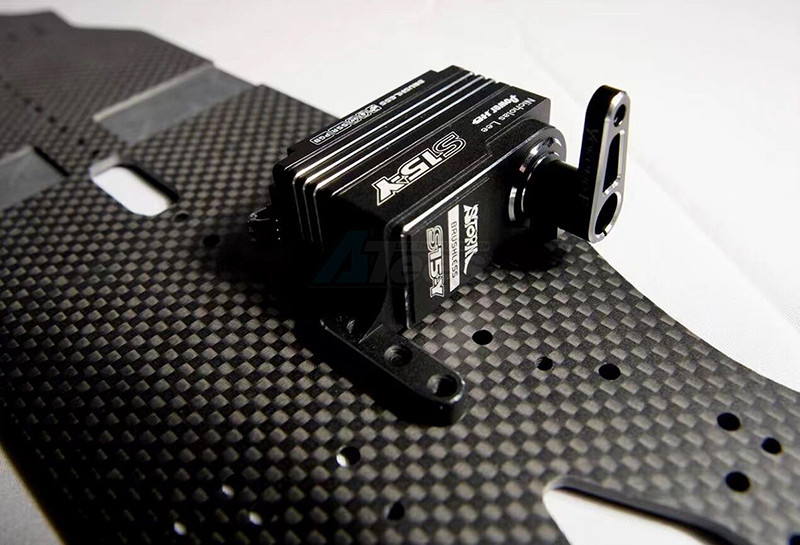

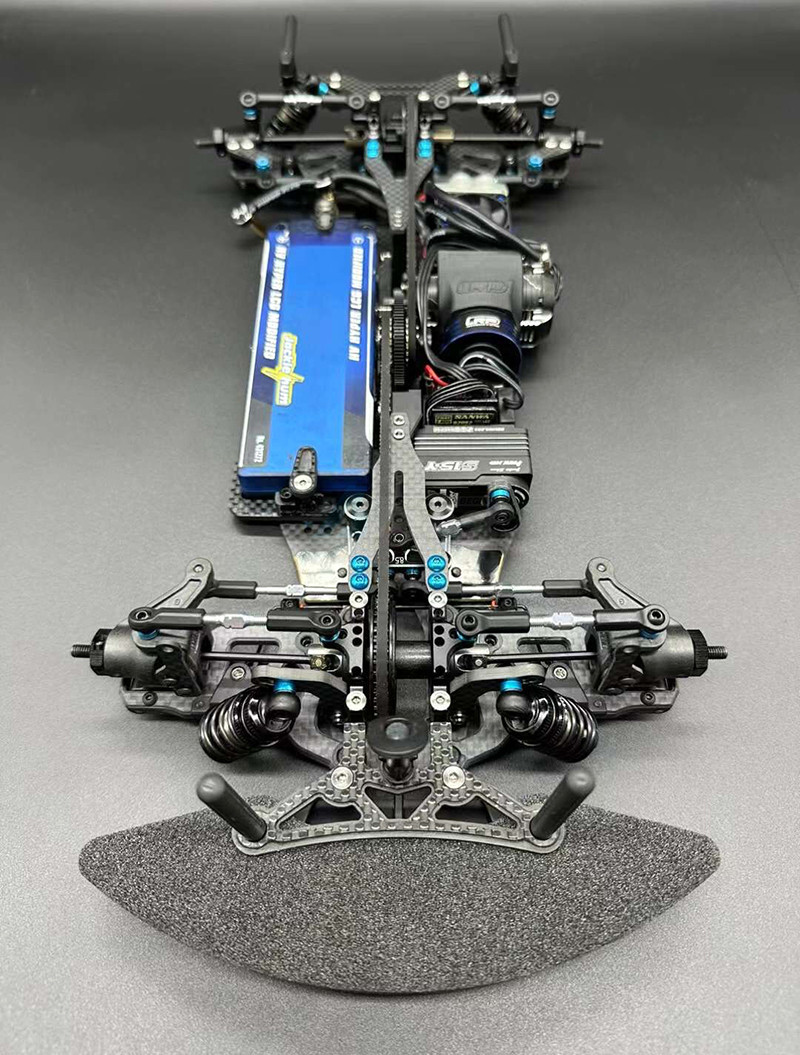

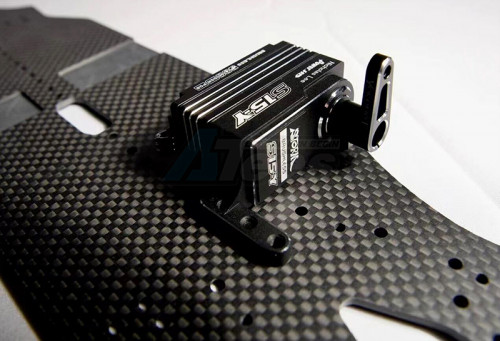

- With the integrated CNC mount, this S15-Y could directly mount to the Yokomo BD12, perfectly matching the original servo mount screw hole. The reverse receiver wire output offers neater wiring for the BD12, contributing to a lower gravity center. With the same superior performance as S15, the S15-Y could be programmed with Power HD program box PG-CB63 to set your favorite parameter according to the different tracks and get better lap time and steering. S15-Y is compatible with Yokomo BD12 and BD11.
Features:- 7075+303 imported steel gear
- Japanese NOBLE potentiometer
- High voltage brushless motor, compatible with 6.0-8.4V
- Gold plating PCB, support SSR, SUR ultra-high-speed mode
- Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
- Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
- Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
- Speed: 0.072 sec (6.0V) ?060 sec (7.4V) ?
- Speed: 0.050 sec (8.4V)
- Operating Voltage?0 ~ 8.4 DC Volts
- Weight: 56.5 g (2.0 oz)
- Bearing Type? Ball Bearing x 2
- Motor Type? Brushless Motor
- Gear Type? Titanium & Steel
- Operating Temperature: -20?~60?
- Working frequence?1520μs / 333hz
- Size?0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)
- Color: Black
- Package total weight: 124.75 grams (incl. packaging)
- Package size: 7.50 x 11.50 x 3.20cm
- Factory description: Power HD Yokomo BD12 SSR PCB Low Profile HV Digital Servp 16.5kg/0.050 Sec @8.4V
- Manufactured by Power HD
- Manufacturer number: PH/S15-Y
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
