- FURITEK STINGER BRUSHLESS POWER SYSTEM FOR AX24
With the incredibly successful release of Stinger brushless systems for SCX24, FCX24, Traxxas TRX-4M, and Axial UTB18, the Furitek team has expanded the Stinger family for the newest Axial AX24 crawler kit.
The new Furitek STINGER brushless power system for AX24 includes the Micro Komodo 1212 3450kv with the lightest and smallest size yet very powerful at low speed yet providing powerful and fast at high speed. The motor is designed with high torque at low-speed crawling and with special firmware from the Lizard Pro ESC, this motor is super smooth without any cogging at both low and high-speed operation.
With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for their favorite settings.
For convenience, the CNC aluminum skid plate is also included to mount the Stinger system directly on the Axial AX24 kit.
This is Furitek's first Stinger brushless system that is compatible with stock radio and receiver which means you do not have to get a new radio and receiver to upgrade to brushless.
Features:
- A smaller and lighter brushless motor Micro Komodo for low C.G. setup same like stock
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Built-in Bluetooth module for wireless connection
- Precision CNC aluminum motor mount for better holding motor in place.
- Precision CNC brass pinion for long-lasting operation
- Powerful at low speed but also more powerful and fast at high speed
- High torque at low speed crawling
- Super smooth without any cogging at both low and high speed operation¬
- Lifetime FREE firmware upgrade!
- Drop in replacement for stock brushed system and skid plate.
- Note: Works perfectly with stock radio and receiver (Not compatible with HRZ00015 board)

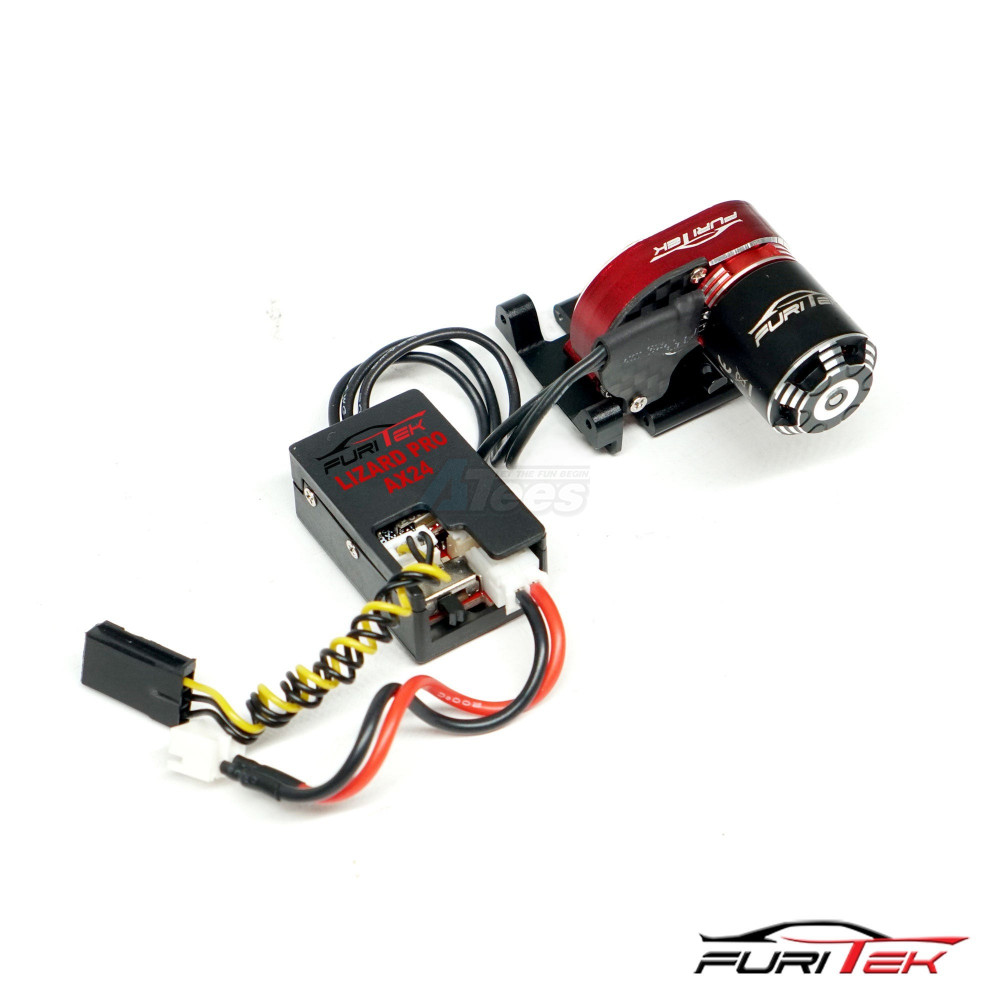

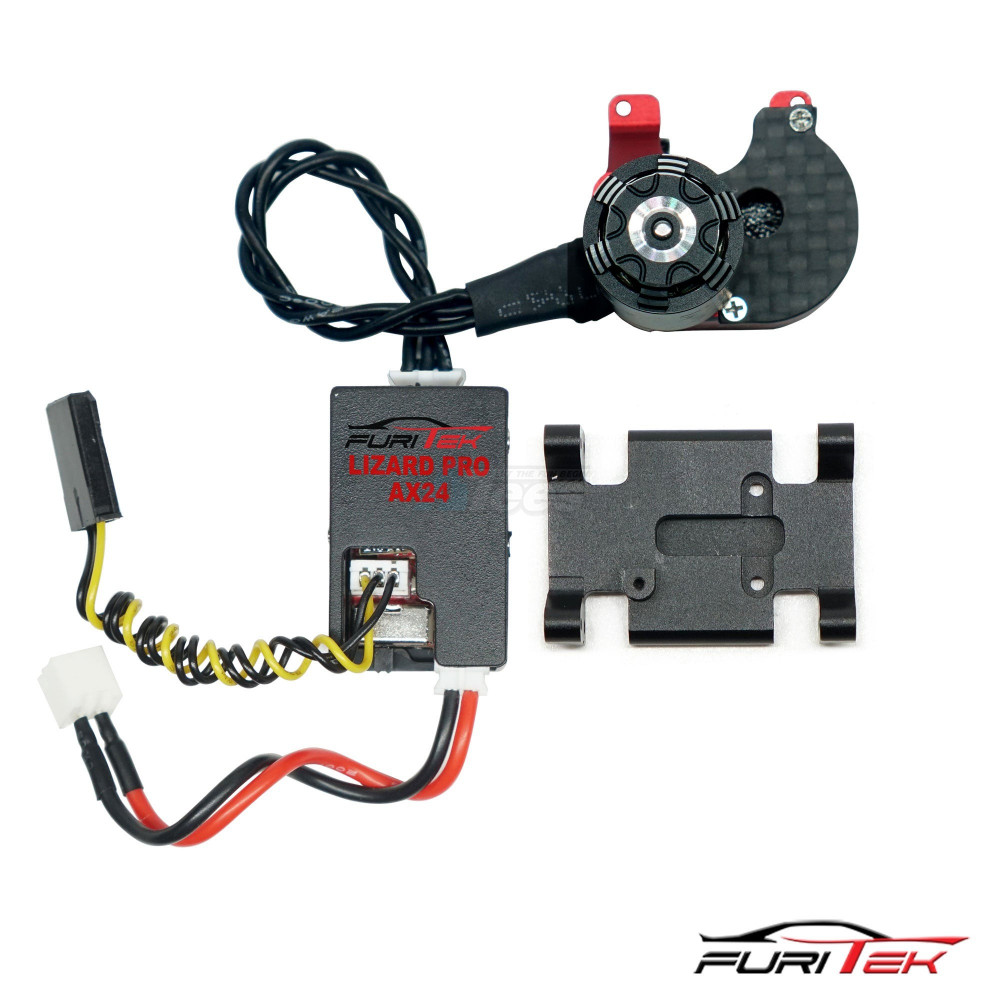

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR AXIAL AX24 WITH FOC TECHNOLOGY
- 1 x built-in Bluetooth module

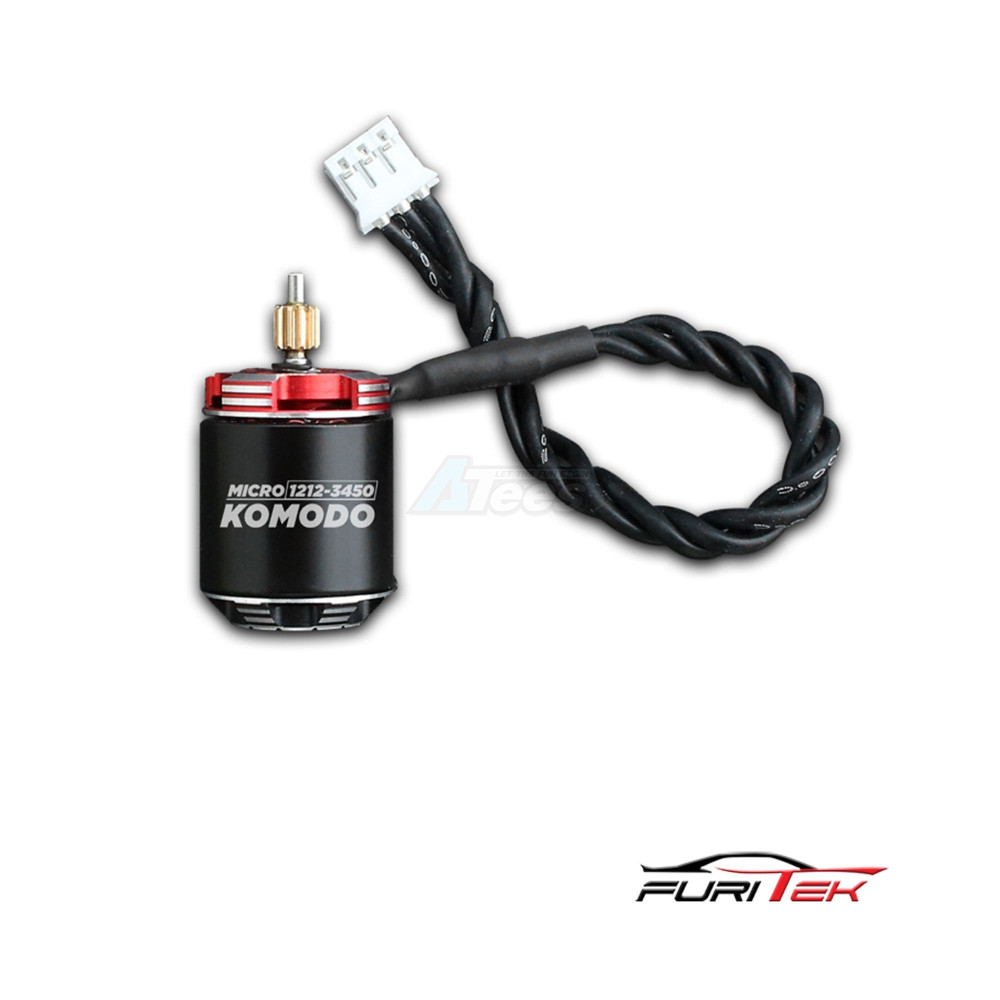

- 1 x Micro Komodo 1212 3450KV brushless motor
- 1 x 11T 0.3M CNC Brass Pinion

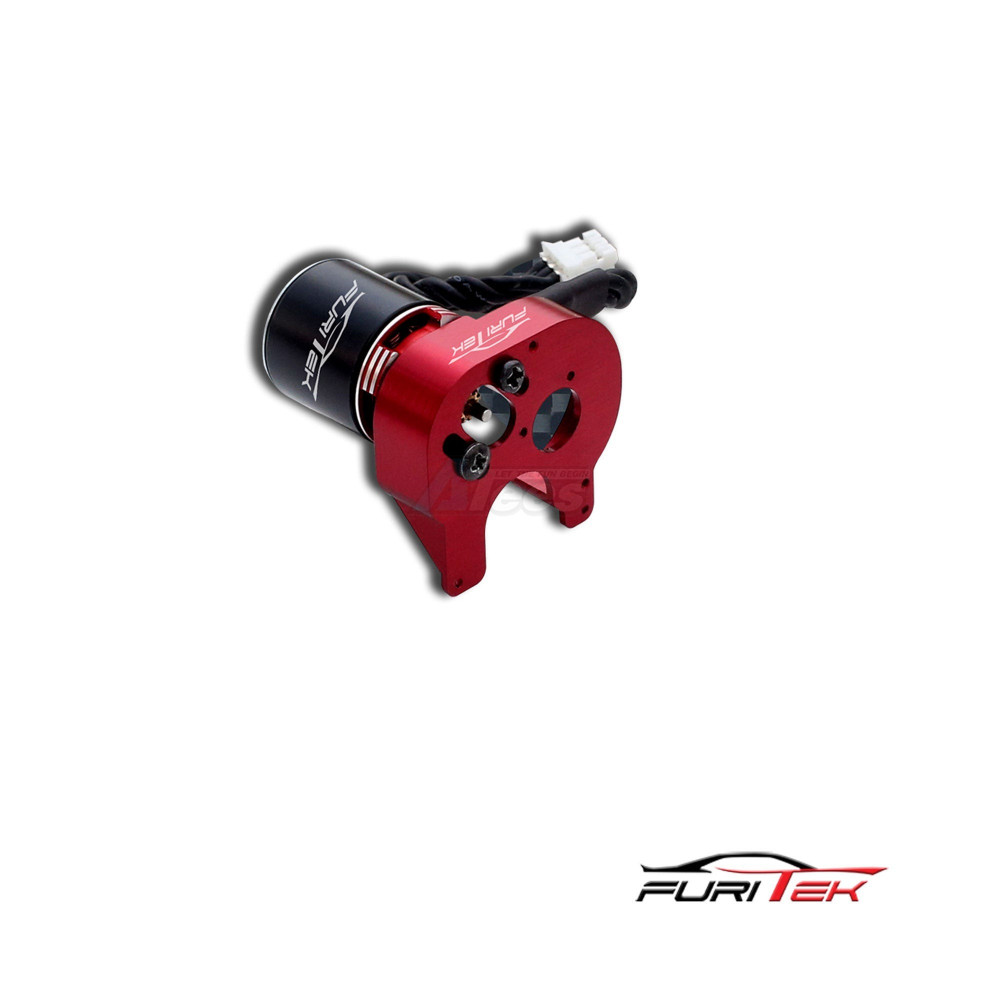

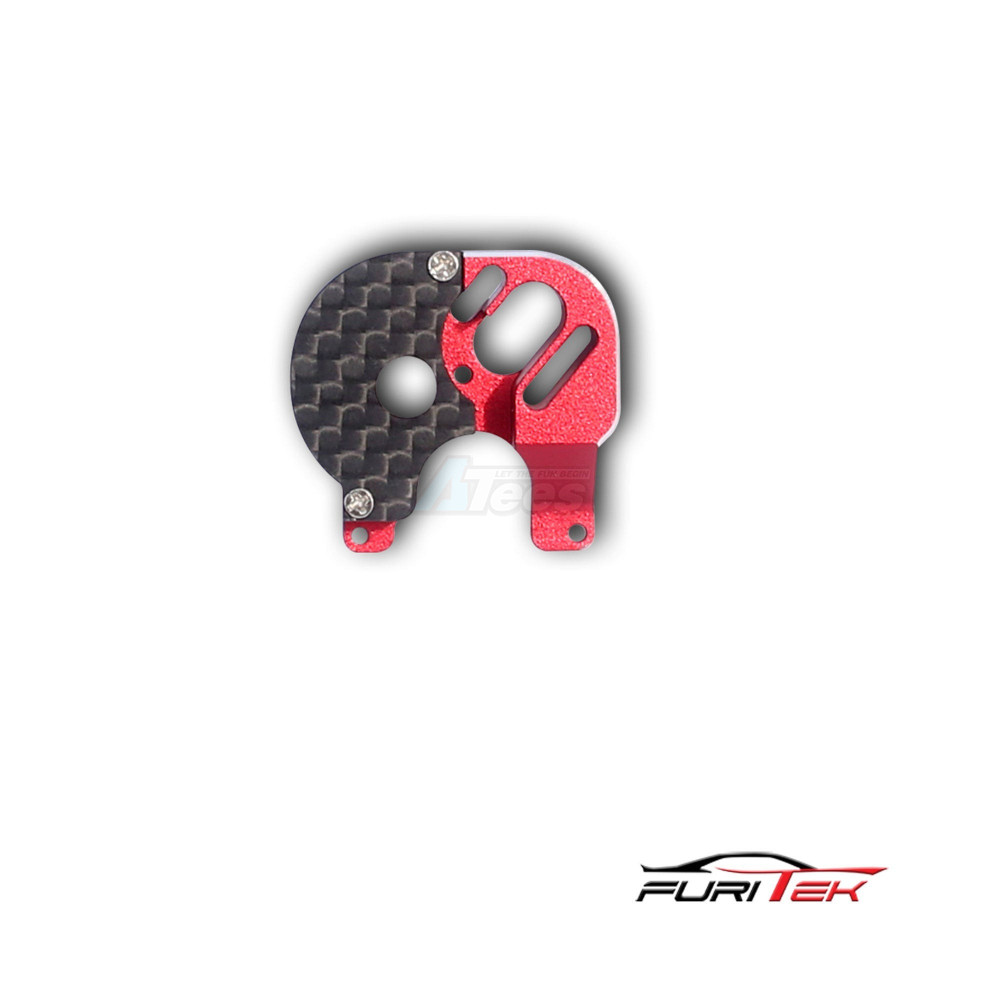

- 1 x CNC aluminum motor mount
- 1 x CNC aluminum skid
Motor Features and Specs:
Features:
- 12 Pole hi-torque motor design.
- Super thin (0.2 mm) stator laminations---lower eddy losses--- maximize efficiency.
- Japanese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision-engineered for maximum energy conversion.
- High purity and higher temperature single copper windings ---lower copper losses,
- very good heat dissipating--maximizes efficiency.
Specifications:
- KV (RPM/Motor) – 3450
- No-load current @10V – 0.7A
- Watt – 120W
- Battery – 2-3S
- Resistance – 0.16 Ohms
- Max Current – 10A
- Slot/Pole – 12
- Motor size (mm) – 15.5x20.6
- Shaft (mm) – 1.5x6
- Weight (g) – 17.5
ESC Features and Specs:
Features:
- Support sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL AX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX
Specifications:
- Support 2S-3S lipo battery
- Constant current: 30A
- Burst current: 50A
- Built-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 grams
- Package total weight: 71.00 grams (incl. packaging)
- Factory description: Furitek Axial AX24 XC-1 Furitek Stinger Brushless Power System
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2288
