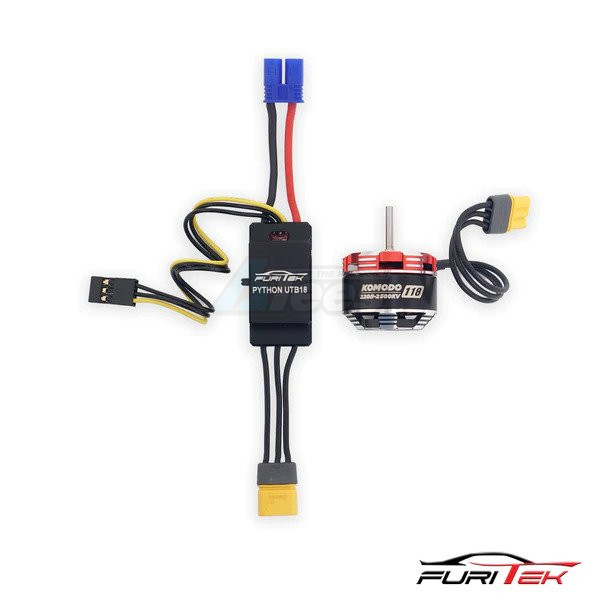

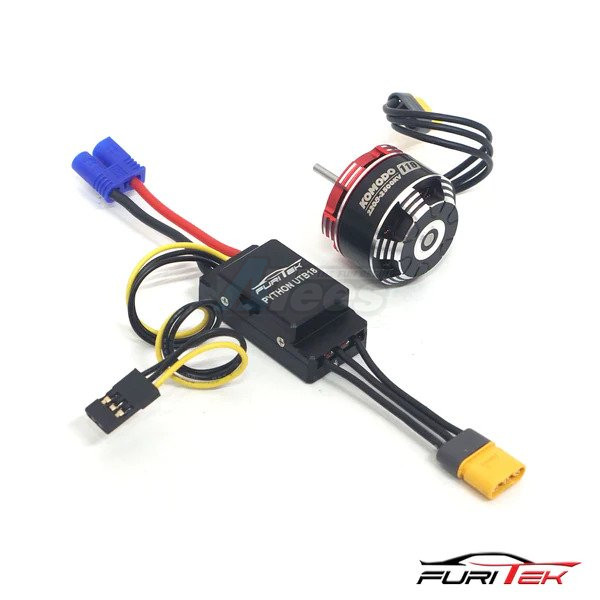

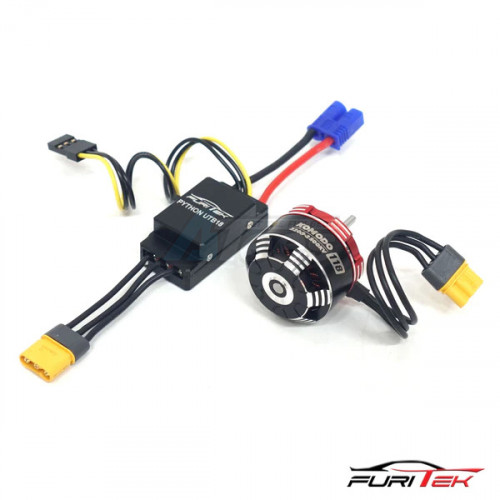

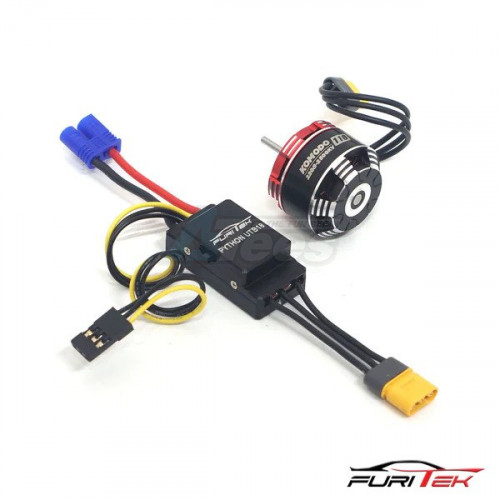

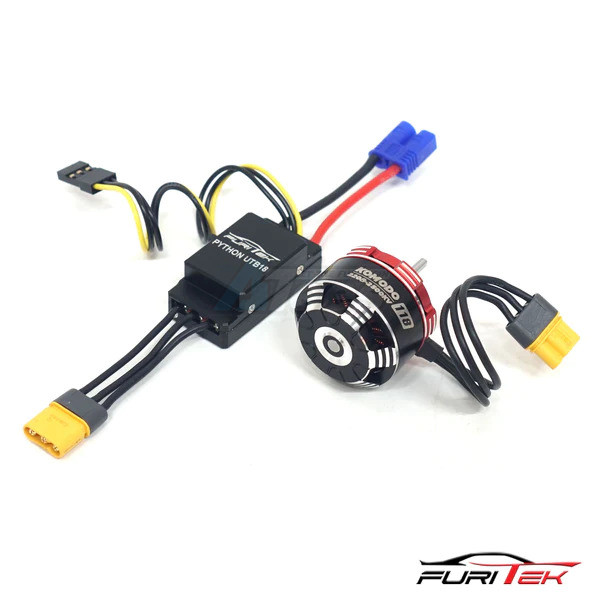

 Furitek Furitek Torpedo Utb18 Brushless Power System for Axial UTB18 Capra
UTB18 Capra
Prev
Showing #49 of UTB18 Capra Parts


LOADING IMAGES

Request Additional Photos
PART: #FT/FUR-2340
This item ships Free WORLDWIDE. Details
OUR INVENTORY:
In Stock and Ready To Ship!
USD $134.99
SALE!
USD $129.99
Best Price Guarantee

Add To Cart
Shipping Options

Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)		 You Save Click To Order
2 USD $126.09 USD $7.80 ADD
TAGGED CATEGORIES:
Electronic Combos
PRODUCT INFORMATION:
  • Features:
    • 14 Pole 12 Slot hi-torque motor design.
    • High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency
    • Super thin (0.2mm) stator laminations---lower eddy losses--- maximize efficiency.
    • Japanese NMB --High RPM ABEC5 bearings.
    • Precision balanced rotor, smoothness for best reliability, and maximum RPM.
    • CNC machined 6061 T6 billet aluminum heatsink can.
    • Precision-engineered for maximum energy conversion.
    Motor Specifications :
    • Motor KOMODO118 2208-2500
    • KV (RPM/Volt) 2500 kv
    • No-load Current(@10v) 5A
    • Watt 270W
    • Battery 2-4S
    • Resistance 06 ohm
    • Max Current 25A
    • Slot/Pole 12S14P
    • Motor Size Ø 28 * 23mm
    • Stator Size 2204
    • Shaft/extend Length (mm) Ø 2.3 * 14mm
    • Weight oz (gr) 93 oz (39.5 gr)
    • Only recommended for KOMODO 118 2500kv
    • Fit with stock pinion gear
    ESC Specifications :
    • Support 2S-3S lipo battery
    • BIG BEC: 5V or 6.5V 2A (Don’t need external BEC if using big Servo)
    • Constant current: 40A
    • Burst current: 70A
    • Built-in Bluetooth module
    • Waterproof: NO
    • Dimension : 1.0 x 0.6 x 0.3in (26x15.5x9mm)
    • Weight: 0.3 oz (8.3 gr)
  • Package total weight: 94.00 grams (incl. packaging)
  • Package size: 7.00 x 13.00 x 5.00cm
  • Factory description: Furitek Axial UTB18 Capra Furitek Torpedo Utb18 Brushless Power System
  • Manufactured by Furitek
  • Manufacturer number: FT/FUR-2340
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it! Report An Error
