PART: #REEFS/S129
|
|
|
|||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
TAGGED CATEGORIES:

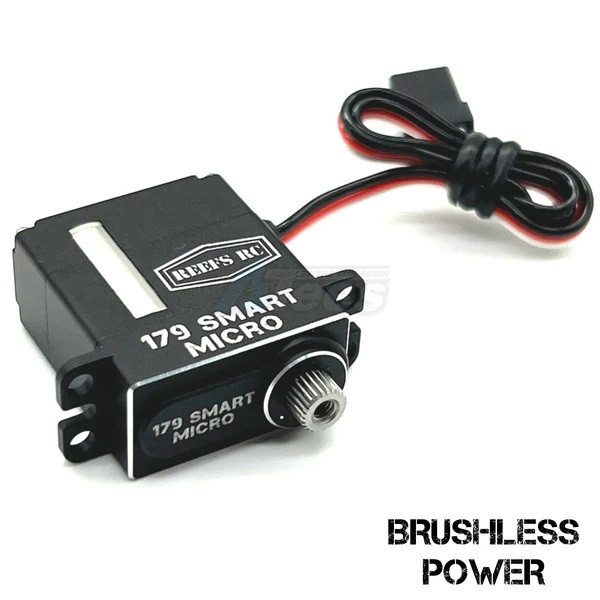

- With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It's smart too, which allows you to program this servo for either standard servo or winch duty with our optional programmer.
SPECIFICATIONS:
- High Torque High Speed
- BRUSHLESS Servo / Winch FULLY PROGRAMMABLE
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for Programming (Optional) Comes as Servo
- Voltage: 6-8.4v
- Internal: Metal & Steel Gears
- CNC Aluminum Casing
- Bearing Type: 2BB
- Temp Rate: -15C°~ +70C
- Weight: .74oz / 21g

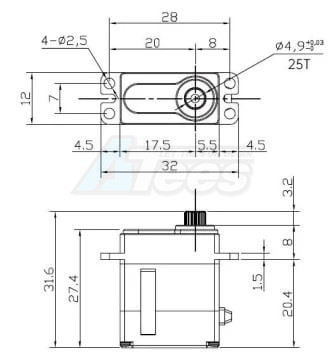

- Dimension: (LWH) .90 x .47 x 1.08 in / 23 x 12 x 27.5 mm
- Torque:
- 135 oz @ 6.0v
- 159 oz @ 7.4v
- 179 oz @ 8.4v
- Speed:
- .09 sec @ 6.0v
- .07 sec @ 7.4v
- .06 sec @ 8.4v
- Spline: 25T Micro
- Dead Band Width: 2μs
- Unload Current:
- 150mA @ 4.8V
- 180mA @ 6.0V
- 240mA @ 7.4V
- 300mA @ 8.4V
- Load Current:
- 1600mA @ 4.8V
- 2000mA @ 6.0V
- 2200mA @ 7.4V
- 2400mA @ 8.4V
- Factory description: REEFS RC 179 Smart Brushless Micro Servo
- Manufactured by REEFS RC
- Manufacturer number: REEFS/S129
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
