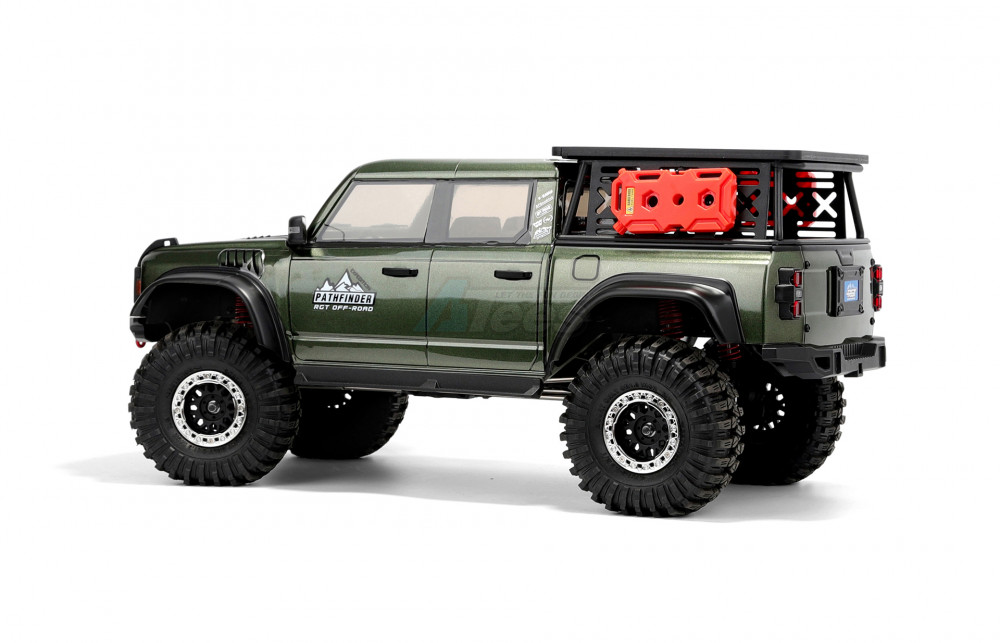

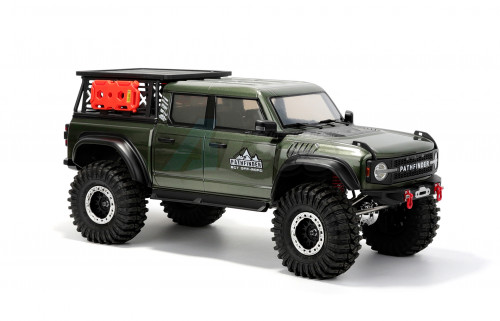

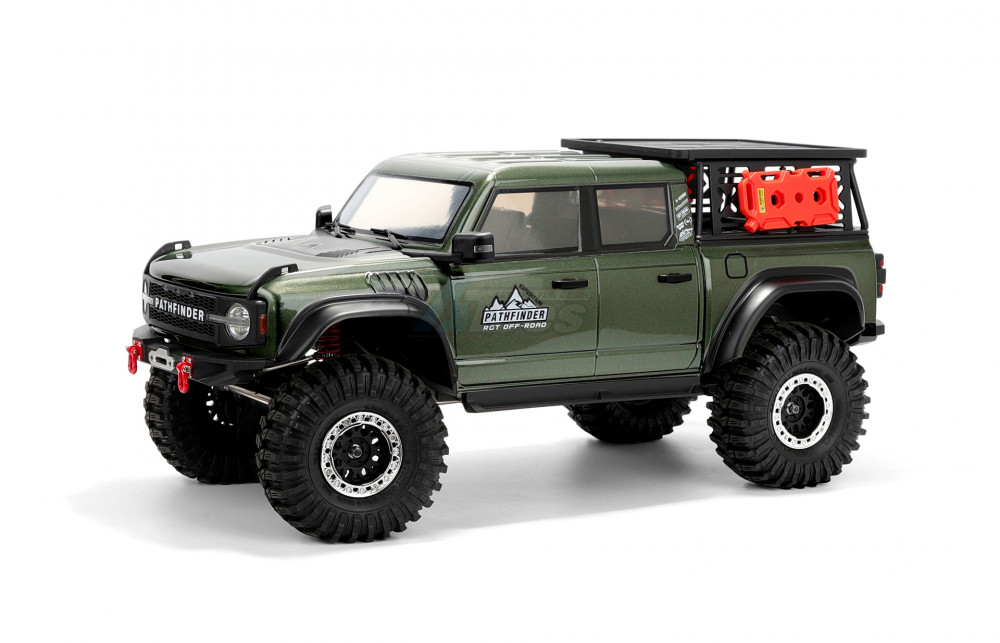

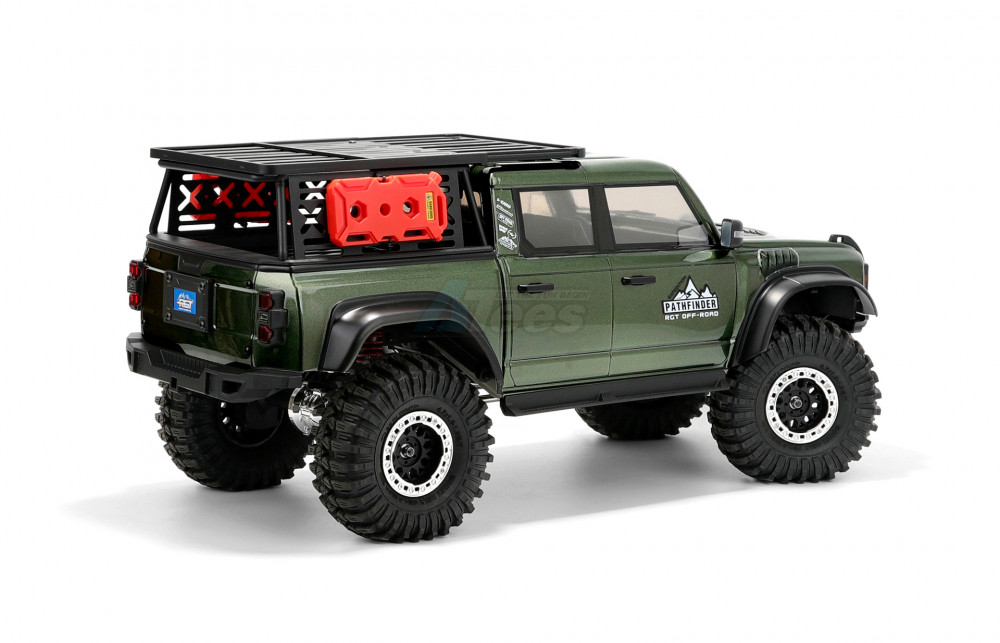

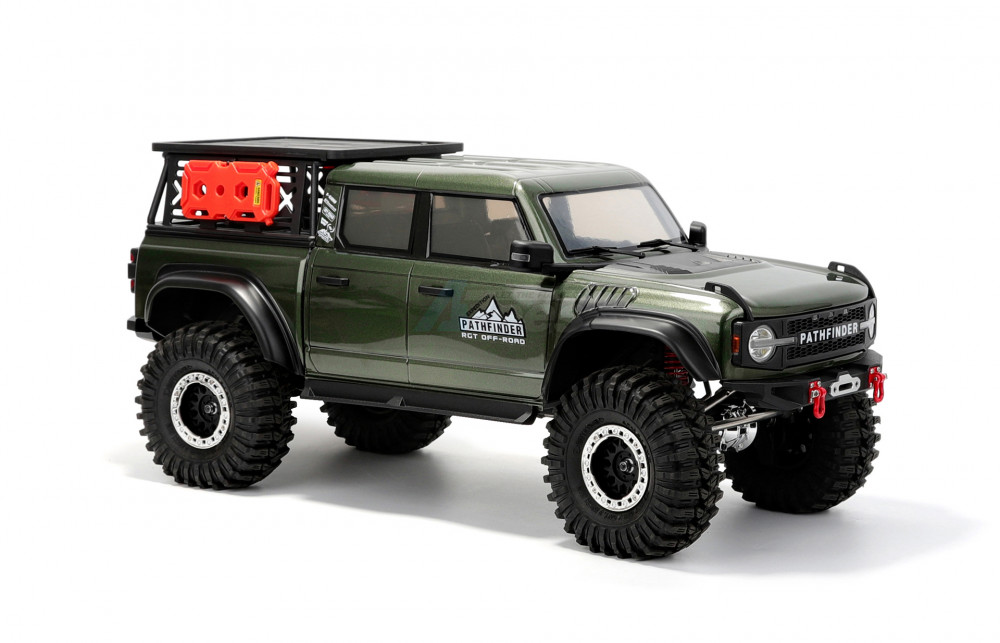

- RGT/EX86150 Pathfinder, a new 1/10 crawler. Based on the LC76 chassis platform, Pathfinder aims to build a long-wheelbase rock crawler. With a long wheelbase, the vehicle will have less transmission jerk and better movement curves in driving posture. The "Pathfinder" features a front and rear integrated portal axle structure, a front and rear differential lock function, and a two-speed reverse transmission case. The "Pathfinder" uses a simulated pickup truck appearance, making the overall center of gravity relatively lower and providing a larger vehicle approach angle. It comes with a 1.5MM thick PC material body and a simulated interior. Equipped with a multi-function nylon luggage rack, it can freely match realistic outdoor equipment according to players' needs. Considering the needs of players who want to cross through heavy loads, Pathfinder comes with an 80A high-power ESC that is only used for 1/8 cars, a 7.4V BEC output, and an RC550 motor. Pathfinder comes with a multi-mode linked LED light group and, an 8-channel 2.4G remote controller as standard configuration. It has 4 high-pressure metal gear servos, including a 30KG high torque steering servo.
Specifications:
- Scale: 1/10 Crawler / Off-road
- Drive Type: 4WD
- Length 566mm x Width 248mm x Height 250mm
- Wheelbase: 355mm
- Wheel: 120*45mm
- Clearance: 54mm (Steel) 70mm (Chassis)
- Weight: 3.687kg (no battery)
- Motor: 8020-RC550/20T
- Gear Ratio: 26:1 (H); 50.4:1 (L)
- Radio/RX: 2.4G/6CH
- ESC: WP-1080/80A
- Breakover: 21°
- Approach: 60°
- Departure: 51°
- Body type: PC soft
- Steering servo: Digit metal gear 30kg
- Function servo: 7.4v/9g *3pcs
- Battery size: <142*48*55mm (L*W*H)
- Battery recommendation: 2S or 3S Lipo; 5-9 cells NiMH
- Color: Green
- Package total weight: 5880.00 grams (incl. packaging)
- Package size: 30.00 x 66.00 x 29.00cm
- Factory description: RGT EX86150 Pathfinder 1/10 Pathfinder 4WD Long Wheelbase 355mm Rock Crawler RTR
- Manufactured by RGT
- Manufacturer number: RGT/EX86150
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
