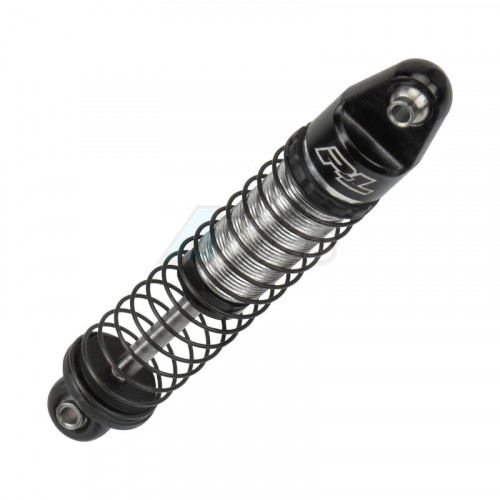

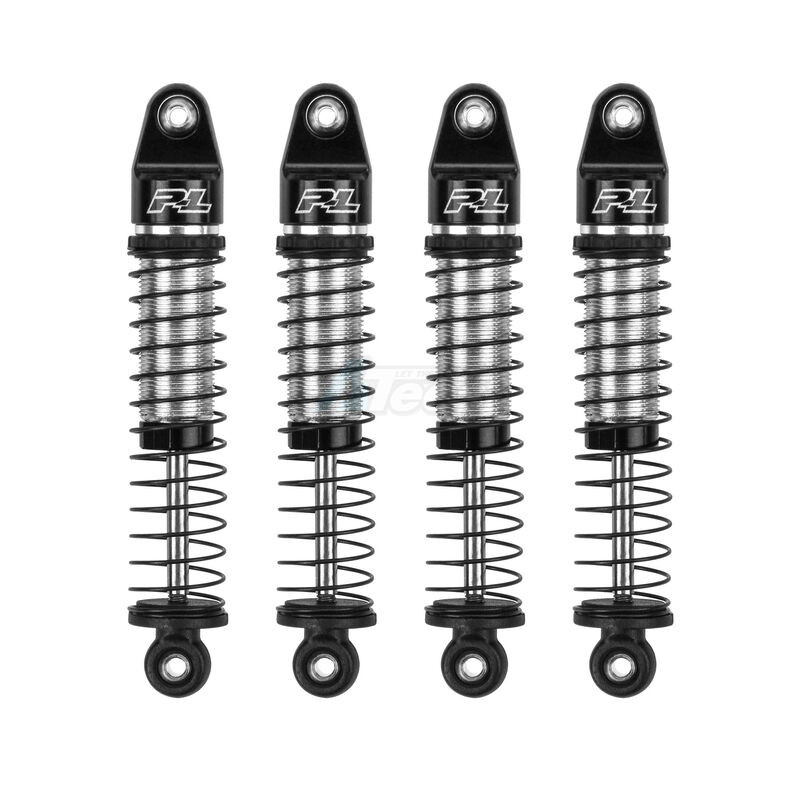

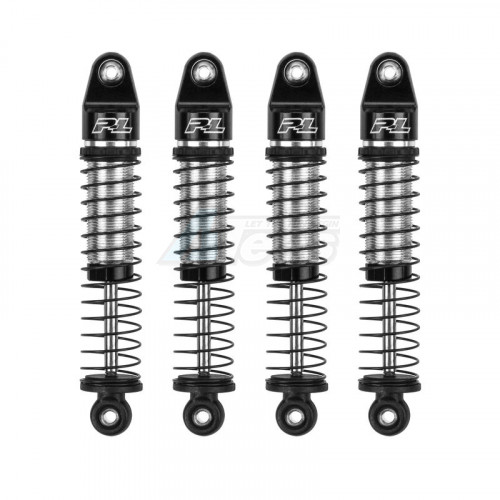

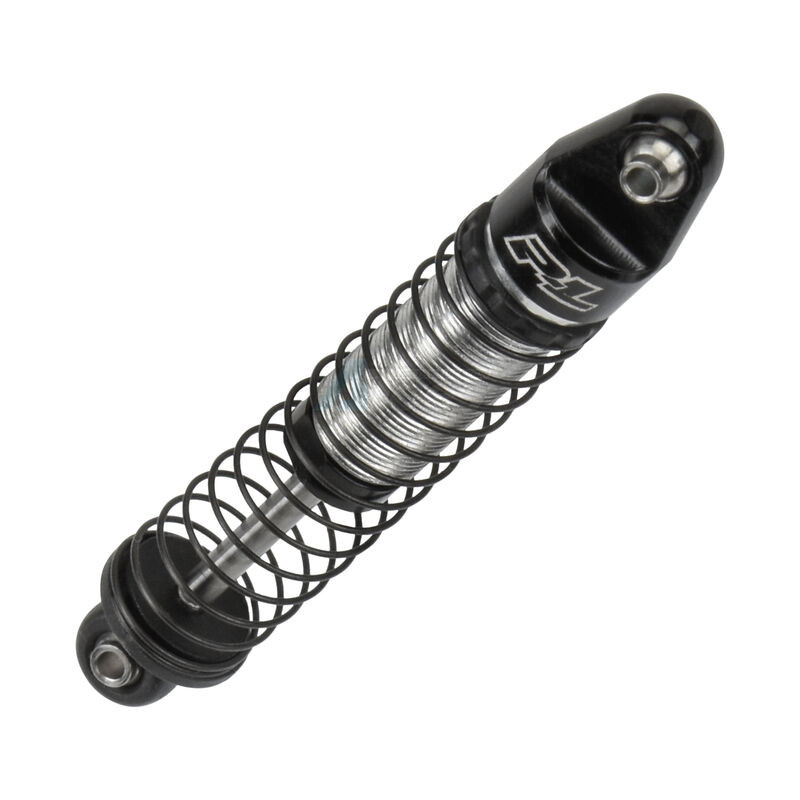

This a set of Big Bore Scaler Shocks, designed specifically for the Axial® AX24™. Take your AX24™ to the next level of performance in Pro-Line Style! Just like our best-selling 1/10 version, these miniature Big Bore Scaler Shocks feature CNC machined Aluminum Shock Caps, Threaded Bodies, Bottom Caps, and Polished Steel Shock Shafts for added style and durability over the stock shocks. The large 5mm bore shock bodies allow the shocks to function as true performance Big Bore Shocks due to the larger oil volume. A double O-ring seal on the main shaft eliminates leaks and provides a smooth, low-friction shock action. The long-travel 50mm length is a direct replacement on the AX24™ but can also be used as an extended-travel option on the SCX24™!
The Big Bore Shocks come pre-assembled in a set of 4 with all mounting hardware included. All you need to do is unscrew the top cap and add silicone shock oil (20wt recommended) to fill the shock body. Replace the cap and compress the shock 3-4 times to fully lubricate the shock shaft. Now you're ready to start your next small-scale adventure!
Two sets of springs are included in the Big Bore Scaler Shock set. The shocks come pre-assembled with a standard spring rate perfect for those stock or close-to-stock rigs. The optional stiffer springs (marked with red paint) are ideal for rigs with heavier bodies or just to tune to your specific conditions. It includes all hardware needed to mount up to either your AX24™ or SCX24™. Don't miss out on the coolest looking and best performing mini shocks on the Planet, Get your own Pro-Line Big Bore Scaler Shocks today!
Features:
Ultimate Performance AX24™ or SCX24™ Shocks
CNC Machined Aluminum Shock Caps, Bodies, and Bottom Caps
True Big Bore Holds More Oil for Better Performance
Pre-Assembled, Just Add Oil! (20wt Oil Recommended)
Leak-free Double O-Ring Seal
Polished Steel Shock Shaft
Optional Stiff Springs Included, Ideal for Heavier Bodies
Hardware Included for Mounting on AX24™ or SCX24™
Specs:
Extended Length: 50mm (eye-to-eye)
Collapsed Length: 35.25mm (eye-to-eye)
Stroke: 14.75mm
Spring Length: 36mm
Scale: 1/24
Vehicle Type: Rock Crawler

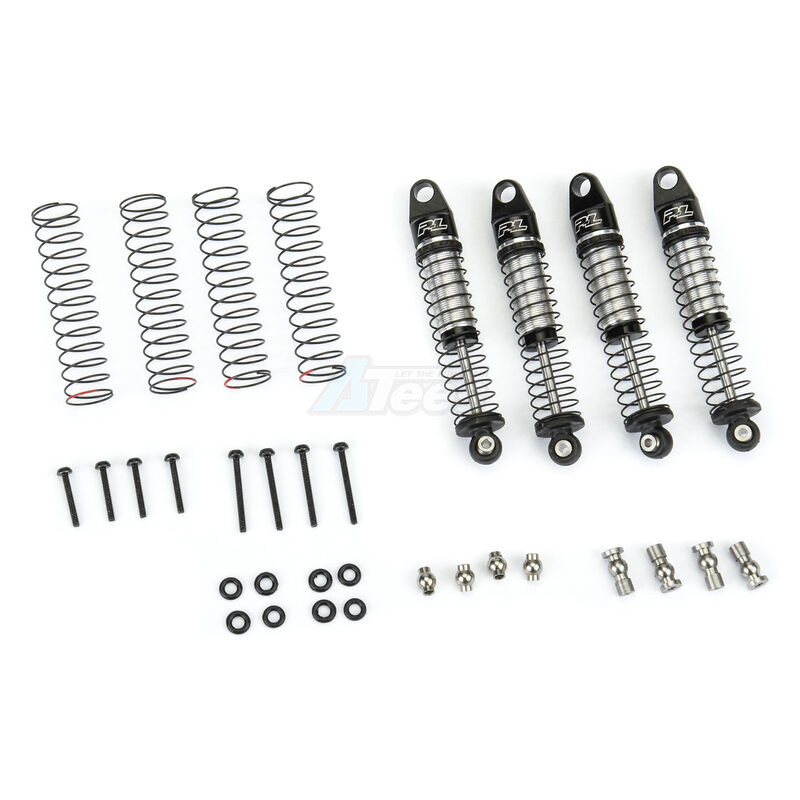

In The Box:
(4 pcs) Big Bore Scaler Shocks
(4 pcs) AX24™ Upper Shock Ball
(4 pcs) SCX24™ Upper Shock Ball
(8 pcs) SCX24™ Upper Shock Ball O-Rings
(4 pcs) Optional Stiff Springs
(4 pcs) M1.4 x 14mm Upper SCX24™ Screws
(4 pcs) M1.4 x 10mm Lower Screws
Fits:
AX24™
SCX24™
Package total weight: 29.00 grams (incl. packaging)
Factory description: Pro-Line Racing Axial SCX24 1/24 Big Bore Scaler Shocks 50mm (4): SCX24 and AX24
This a set of Big Bore Scaler Shocks, designed specifically for the Axial® AX24™. Take your AX24™ to the next level of performance in Pro-Line Style! Just like our best-selling 1/10 version, these miniature Big Bore Scaler Shocks feature CNC machined Aluminum Shock Caps, Threaded Bodies, Bottom Caps, and Polished Steel Shock Shafts for added style and durability over the stock shocks. The large 5mm bore shock bodies allow the shocks to function as true performance Big Bore Shocks due to the larger oil volume. A double O-ring seal on the main shaft eliminates leaks and provides a smooth, low-friction shock action. The long-travel 50mm length is a direct replacement on the AX24™ but can also be used as an extended-travel option on the SCX24™!
The Big Bore Shocks come pre-assembled in a set of 4 with all mounting hardware included. All you need to do is unscrew the top cap and add silicone shock oil (20wt recommended) to fill the shock body. Replace the cap and compress the shock 3-4 times to fully lubricate the shock shaft. Now you're ready to start your next small-scale adventure!
Two sets of springs are included in the Big Bore Scaler Shock set. The shocks come pre-assembled with a standard spring rate perfect for those stock or close-to-stock rigs. The optional stiffer springs (marked with red paint) are ideal for rigs with heavier bodies or just to tune to your specific conditions. It includes all hardware needed to mount up to either your AX24™ or SCX24™. Don't miss out on the coolest looking and best performing mini shocks on the Planet, Get your own Pro-Line Big Bore Scaler Shocks today!
Features:
Ultimate Performance AX24™ or SCX24™ Shocks
CNC Machined Aluminum Shock Caps, Bodies, and Bottom Caps
True Big Bore Holds More Oil for Better Performance
Pre-Assembled, Just Add Oil! (20wt Oil Recommended)
Leak-free Double O-Ring Seal
Polished Steel Shock Shaft
Optional Stiff Springs Included, Ideal for Heavier Bodies
Hardware Included for Mounting on AX24™ or SCX24™
Specs:
Extended Length: 50mm (eye-to-eye)
Collapsed Length: 35.25mm (eye-to-eye)
Stroke: 14.75mm
Spring Length: 36mm
Scale: 1/24
Vehicle Type: Rock Crawler
In The Box:
(4 pcs) Big Bore Scaler Shocks
(4 pcs) AX24™ Upper Shock Ball
(4 pcs) SCX24™ Upper Shock Ball
(8 pcs) SCX24™ Upper Shock Ball O-Rings
(4 pcs) Optional Stiff Springs
(4 pcs) M1.4 x 14mm Upper SCX24™ Screws
(4 pcs) M1.4 x 10mm Lower Screws
Fits:
AX24™
SCX24™
Product weight: 29.00 grams
Factory description: Pro-Line Racing Axial SCX24 1/24 Big Bore Scaler Shocks 50mm (4): SCX24 and AX24
