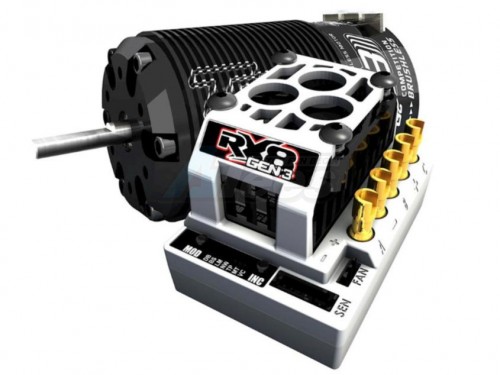

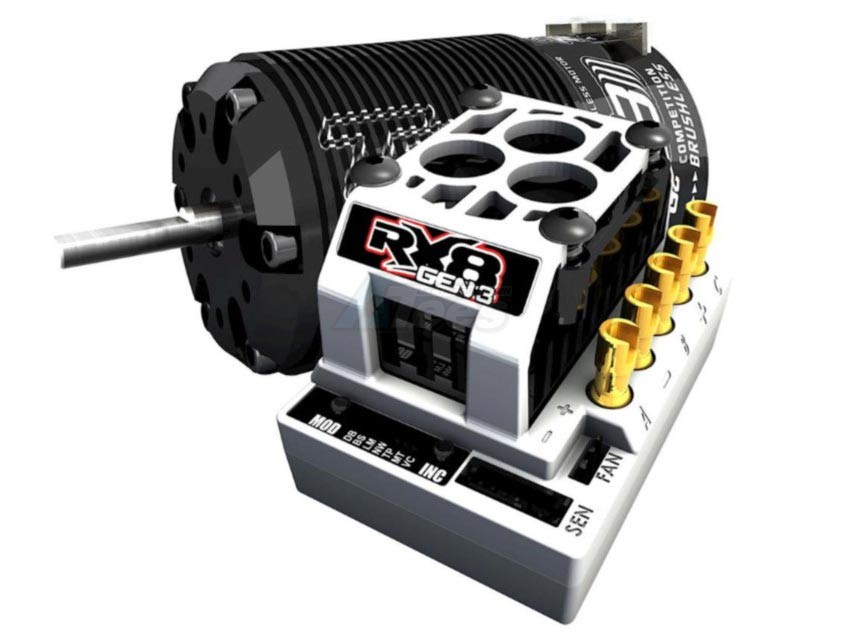

Motor: Tekin's Redline T8 GEN2 motor defines large scale, high-performance racing. Featuring sensors for flawless, reliable on-track operation, the T8 GEN2 provides pro-level controllability and power. Capable of both sensored and sensorless operation, the T8 GEN2 motors are the leading edge of large scale motor technology. Utilize the torque and speed of your T8 to propel you across the finish line!
With the GEN2 name comes exceptional performance, superior smoothness and control. The award-winning and track-proven reputation of the T8 series received a new look and extensive tuning to better an already dominant design. The optimized stack design and ultra-smooth power band bring unrivaled professional performance to uphold the GEN2 name.
Couple the power of a Redline T8 GEN2 with the RX8 GEN2 for the ultimate in 1/8 racing equipment!
Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
Motor Length: 69mm / 2.71"
Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm *all
Rebuildable: Yes
Features:
CNC Machined 6061 T6 Billet Aluminum Ribbed Heat sink Can
Matte Anodized for Maximum Corrosion Resistance
Sensored and Sensorless Operation
High Current Solder Tabs
Rebuildable Design
Solderless Sensor PCB Replacement
4-Pole Neodymium Sintered Magnet
Dual-Plug Sensor Wire Harness
ABEC5 Precision High Speed Oversized Bearings
Precision Engineered for Maximum Energy Conversion
Designed to be paired with the RX8 GEN2 ESC
ROAR Approved
ESC: Tekin's RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPo’s, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security. Combo the RX8 GEN3 with a Tekin T8 Brushless Motor for 1/8 Scale Buggies and Truggies or a Pro for 4WD Short Course domination!
Specifications:
Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
BEC: 6.0v / 7.4v @ 8amps
Motor Limit Brushless Mode: 2S - No Limit 3S - 4000kV 4S - 3500kV 5S - 2200kV 6S - 2200kV
Motor Limit Brushed Mode: No Limit
Max Current: 300amps per phase*
Burst Current: 1000amps per phase*
Timing Profiles: 7 choices (on board)
Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
Weight: 2.7oz / 76.5g
*Per Manufacturer Specs
Features:
New HD Gold-plated Solder Posts for Easy Soldering
New Adjustable Torque Control
New Adjustable Throttle and Brake Frequencies
New HD High Voltage Programmable BEC
Ultra-smooth and Precise Throttle and Braking Control
Compatible with Brushless and Brushed Motors
Easily Access Programming, Anywhere, Anytime
Data logging Capability
EZ Access HotWire Programming Port
HotWire Interface for Advanced Programming and Updating
D2: Dual Drive Mode Technology
On-Board Temperature Indicator
HDAC: High Density Copper PCB's
Sensor Plug for Precise Commutation with all Motors
Self-Test Diagnostics and Factory Reset
Pit Tune Mode
DGF2: Digital Glitch Filtering V2
QuickTune™ Programming
One-Touch Radio Calibration
This item replaced these previous versions: TK/TT2325
Package total weight: 592.00 grams (incl. packaging)
Package size: 14.00 x 16.00 x 7.00cm
Factory description: Tekin RX8 Gen3 T8Gen2 4038 2250kv System
Motor: Tekin's Redline T8 GEN2 motor defines large scale, high-performance racing. Featuring sensors for flawless, reliable on-track operation, the T8 GEN2 provides pro-level controllability and power. Capable of both sensored and sensorless operation, the T8 GEN2 motors are the leading edge of large scale motor technology. Utilize the torque and speed of your T8 to propel you across the finish line!
With the GEN2 name comes exceptional performance, superior smoothness and control. The award-winning and track-proven reputation of the T8 series received a new look and extensive tuning to better an already dominant design. The optimized stack design and ultra-smooth power band bring unrivaled professional performance to uphold the GEN2 name.
Couple the power of a Redline T8 GEN2 with the RX8 GEN2 for the ultimate in 1/8 racing equipment!
Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
Motor Length: 69mm / 2.71"
Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm *all
Rebuildable: Yes
Features:
CNC Machined 6061 T6 Billet Aluminum Ribbed Heat sink Can
Matte Anodized for Maximum Corrosion Resistance
Sensored and Sensorless Operation
High Current Solder Tabs
Rebuildable Design
Solderless Sensor PCB Replacement
4-Pole Neodymium Sintered Magnet
Dual-Plug Sensor Wire Harness
ABEC5 Precision High Speed Oversized Bearings
Precision Engineered for Maximum Energy Conversion
Designed to be paired with the RX8 GEN2 ESC
ROAR Approved
ESC: Tekin's RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPo’s, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security. Combo the RX8 GEN3 with a Tekin T8 Brushless Motor for 1/8 Scale Buggies and Truggies or a Pro for 4WD Short Course domination!
Specifications:
Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
BEC: 6.0v / 7.4v @ 8amps
Motor Limit Brushless Mode: 2S - No Limit 3S - 4000kV 4S - 3500kV 5S - 2200kV 6S - 2200kV
Motor Limit Brushed Mode: No Limit
Max Current: 300amps per phase*
Burst Current: 1000amps per phase*
Timing Profiles: 7 choices (on board)
Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
Weight: 2.7oz / 76.5g
*Per Manufacturer Specs
Features:
New HD Gold-plated Solder Posts for Easy Soldering
New Adjustable Torque Control
New Adjustable Throttle and Brake Frequencies
New HD High Voltage Programmable BEC
Ultra-smooth and Precise Throttle and Braking Control
Compatible with Brushless and Brushed Motors
Easily Access Programming, Anywhere, Anytime
Data logging Capability
EZ Access HotWire Programming Port
HotWire Interface for Advanced Programming and Updating
D2: Dual Drive Mode Technology
On-Board Temperature Indicator
HDAC: High Density Copper PCB's
Sensor Plug for Precise Commutation with all Motors
Self-Test Diagnostics and Factory Reset
Pit Tune Mode
DGF2: Digital Glitch Filtering V2
QuickTune™ Programming
One-Touch Radio Calibration
Product weight: 592.00 grams
Package size: 14.00 x 16.00 x 7.00cm
Factory description: Tekin RX8 Gen3 T8Gen2 4038 2250kv System
