 ob1-RC V4 Type D Professional LED System For Drift
All


LOADING IMAGES

Request Additional Photos
PART: #OB1/BL-V4D
OUR INVENTORY:
Out Of Stock
USD $35.16
Best Price Guarantee

Temporarily Unavailable for Checkout

Notify me when this item is in stock



Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

TAGGED CATEGORIES:
LED Light Set
PRODUCT INFORMATION:
  • This is ob1-RC 4-Channel Professional LED System V4 Type D. The successor of V3.0, fits RC Drift, touring cars.

    Functions:
    • Power supply by BEC: 5 – 7.4V Max
    • Max 4 RC channels (Min 1-2 channels), V4 supports High Response RC Systems, e.g.
      • Futaba : FASST-C1, C2 / S-FHSS / T-FHSS (SR)
      • Sanwa : NOR / SHR Mode
    • CH1: Steering (Left / Right winker lamp)
    • CH2: Throttle (2-level brightness brake lamp)
      • Toggle function (Hold brake >60% for 3 sec. to Toggle LED ON/ OFF, total 5 steps)
    • CH3: Toggle Flash modes
      • V4 Smart Toggle (Start Toggle from any position of RC channel, lever, or switch…)
    • CH4: Manual hazard lamp
    • Flash mode (All LED) Toggle by pressing the [SET] switch anytime (or use CH3) after powering
      • V4 adds 3 more, a total of 10 flashing styles
    • LED driving Max 112 pcs, 46 pcs more than V3

    Special functions:
    • CF plug (in Sub unit) is good for installing intercooler lamp
    • Fine-tune your system by entering Setup Mode, for example:
    • EXB (Exhaust Backfire, redesigned from MUF), 3 flashing styles options
    • Auto hazard lamp (when CH4 is not a “Manual hazard“)
    • Power Options (Low/ Mid/ High / Extra High) for all High power plugs, each driving 2-16 LED
      • V4 adds 3 more HP plugs, a total 6,
    • Reverse lamp with Reverse beeper (BR3 plug, Buzzer buy separately)
    • Low Voltage Detection (LVD), Buzzer uses as an audible alarm (Buy separately)

    Features:

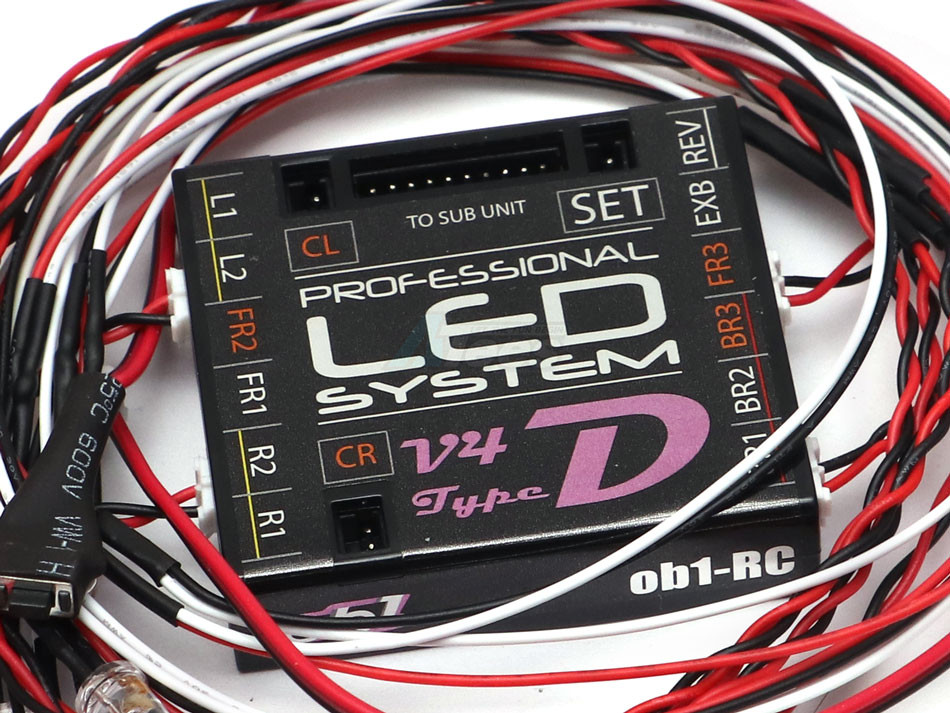

    • 15 LED plugs:
      • FR1-3 (Front lamp)
      • BR1-3 (Brake lamp)
      • L1-2, R1-2 (Left & Right Winkers)
      • EXB (Exhaust Backfire)
      • REV (Reverse lamp)
      • V4 adds CL / CR (Chassis lamp)
      • V4 adds CF (Chassis lamp in Sub unit)
    • CH2 Auto-calibration on every power, Plug & Play
    • Main / Sub Unit design, uses 1 cable to connect each other
    • External BEC may require if using high-power options

    Specification:
    • Input Voltage: 5 - 7.4V (Powered by ESC's BEC)
    • Battery type for LVD: LiPo 2S (User define: MAX 25.2V)
    • Support RC System :
      • All Normal Response RC Systems:PCM/ PPM (FM)/ AM
      • Some High Response RC Systems, for example :
      • Futaba : FASST-C1, C2 / S-FHSS / T-FHSS (SR)
      • Sanwa : NOR / SHR Mode
    • Dimension (Excludes cables) :
      • Main Unit : 45mm (L), 41.3mm (W), 11.7mm (H)

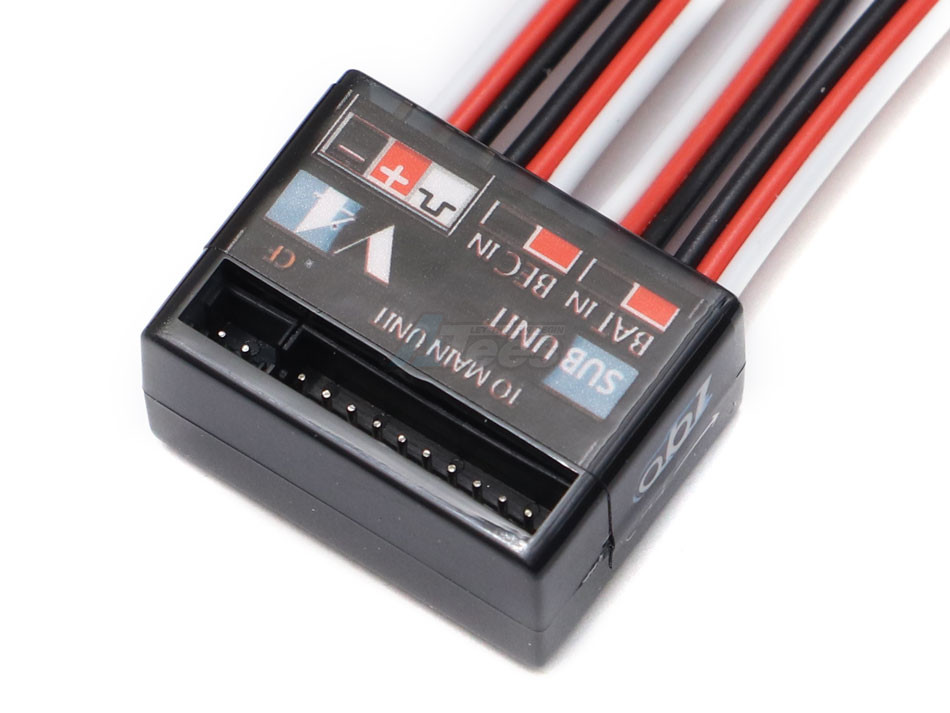

      • Sub Unit : 24.5mm (L), 18.5mm (W), 12mm (H)
    • Weight : MAIN / SUB Unit : 14g / 10g

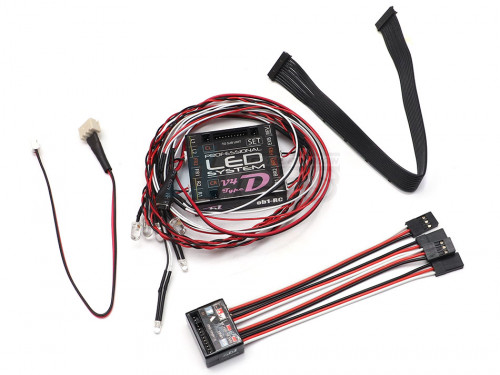

    The kit Includes:
    • Main unit x 1
    • Sub unit x 1
    • Main cable x 1
    • SET Switch cable x 1
    • Battery cable (LiPo 2S) x 1
    • User manual (ENG) x 1
    • Front LED cable x 1 (5mm high brightness WHITE LED 2P)
    • Brake LED cable x 1 (5mm high brightness RED LED 2P)
  • This item replaced these previous versions:
    OB1/BL-V30
  • Package total weight: 57.00 grams (incl. packaging)
  • Factory description: ob1-RC V4 Type D Professional LED System For Drift
  • Manufactured by ob1-RC
  • Manufacturer number: OB1/BL-V4D
  • This item is not eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it! Report An Error

V4 Type D Professional LED System For Drift by ob1-RC
