 Tamiya 1/10 RC TB EVO.8 Chassis Kit for TB Evo 8

 TB Evo 8

First In Quality Around the World
PART: #TAMIYA/42383
Warehouse Availability:

HK: Out of stock (ships worldwide)

USD $519.9
Best Price Guarantee

Temporarily Unavailable for Checkout

Notify me when this item is in stock



CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

TAGGED CATEGORIES:
PRODUCT INFORMATION:
  • Tamiya welcomes a new variant to the TB Evo. series - the fastest shaft-driven chassis produced by Tamiya - which started in the year 2000. With an updated chassis layout from the TB Evo. 7, its suspension features popular A-shaped suspension arms which was used for the Tamiya TA08 PRO Chassis kit. Additionally, the motor can be positioned in two locations. Do not miss this chance to get this chassis featuring efficient drive and superior controllability!

    Features:

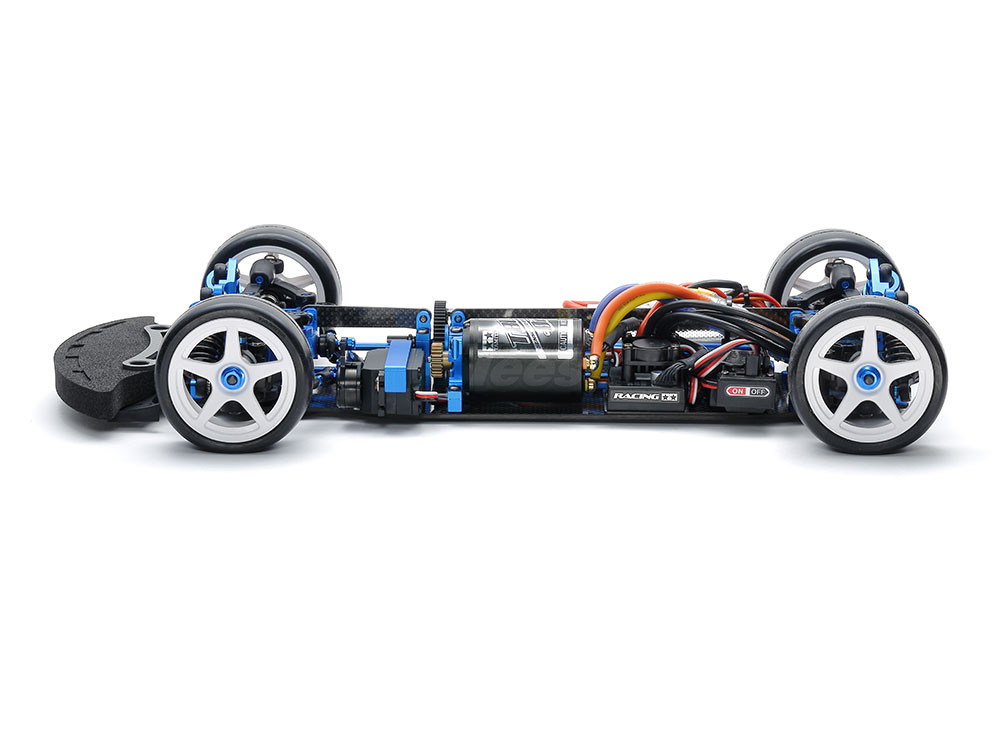

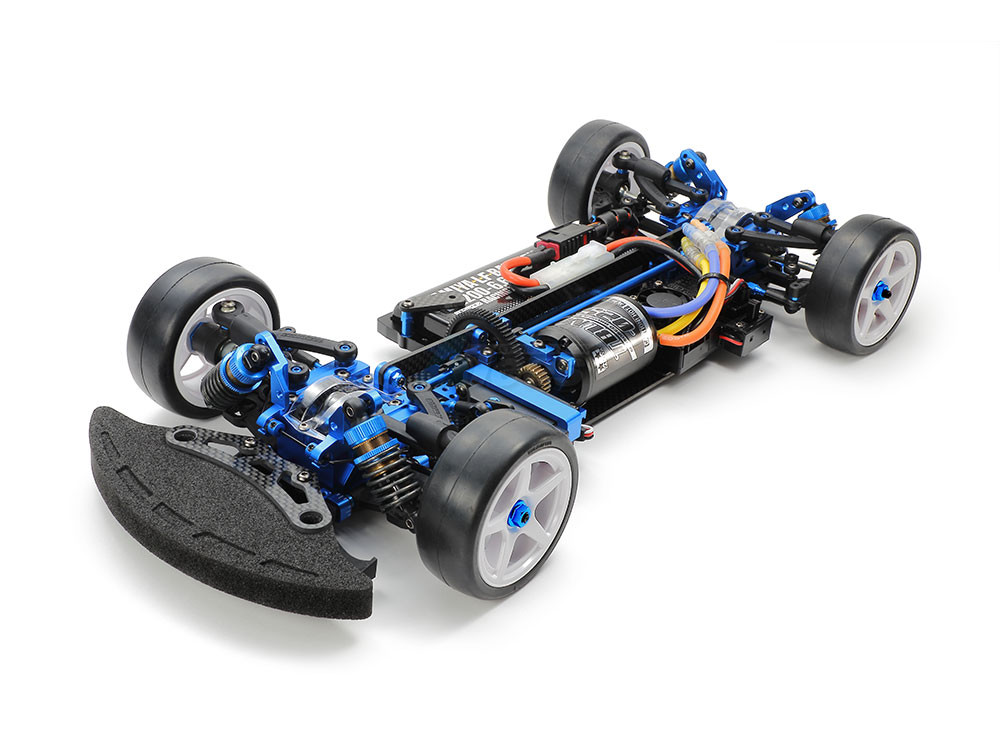

    • 1/10 scale R/C shaft driven 4WD chassis assembly kit.

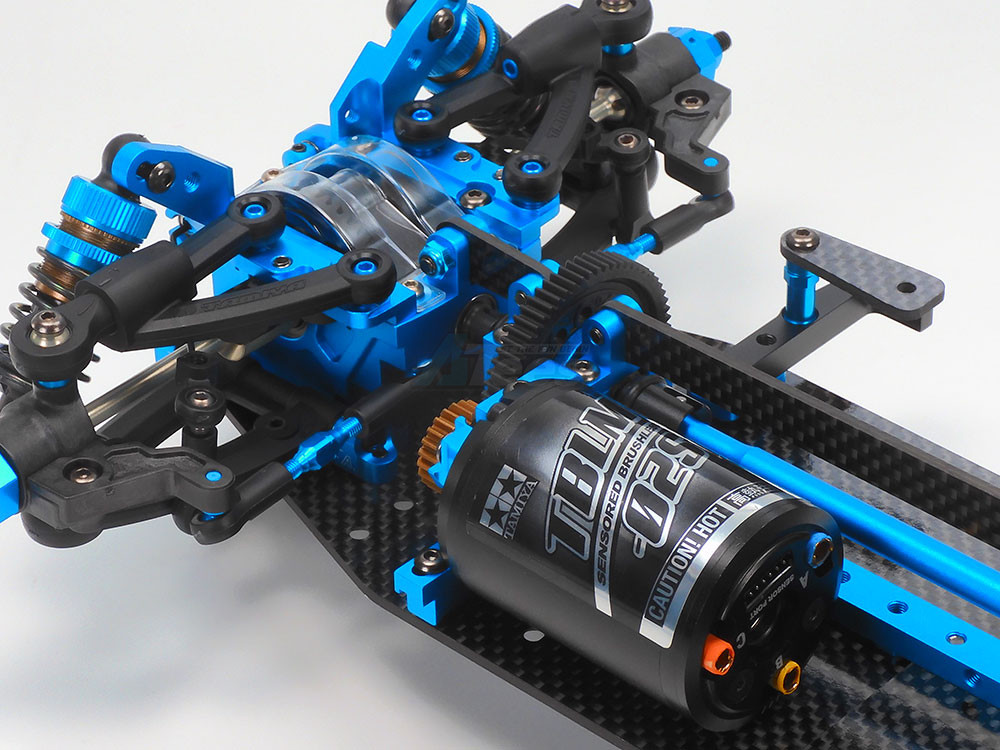

    • Choose from two types of motor layout - front mid motor layout or rear mid motor layout.
    • Lower deck and vertical upper decks are crafted in carbon fiber, and ensure pitch rigidity.
    • Aluminum bulkhead and damper stay are one-piece component.
    • 7mm suspension balls and king-pins are combined for smooth motion. (Item 22016)

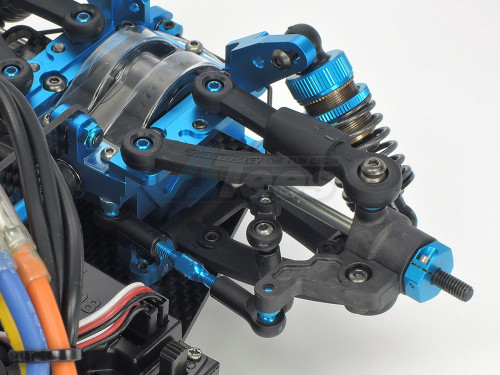

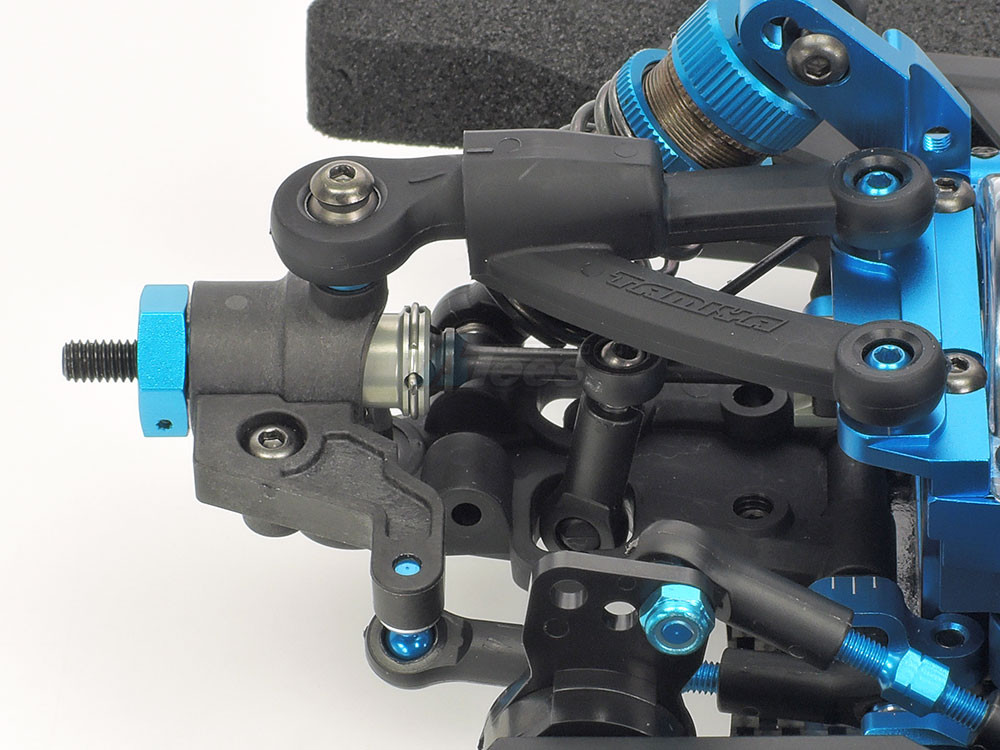

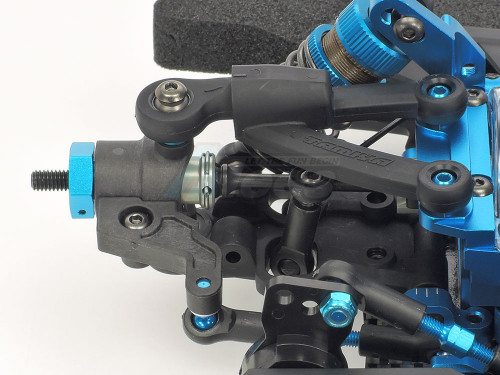

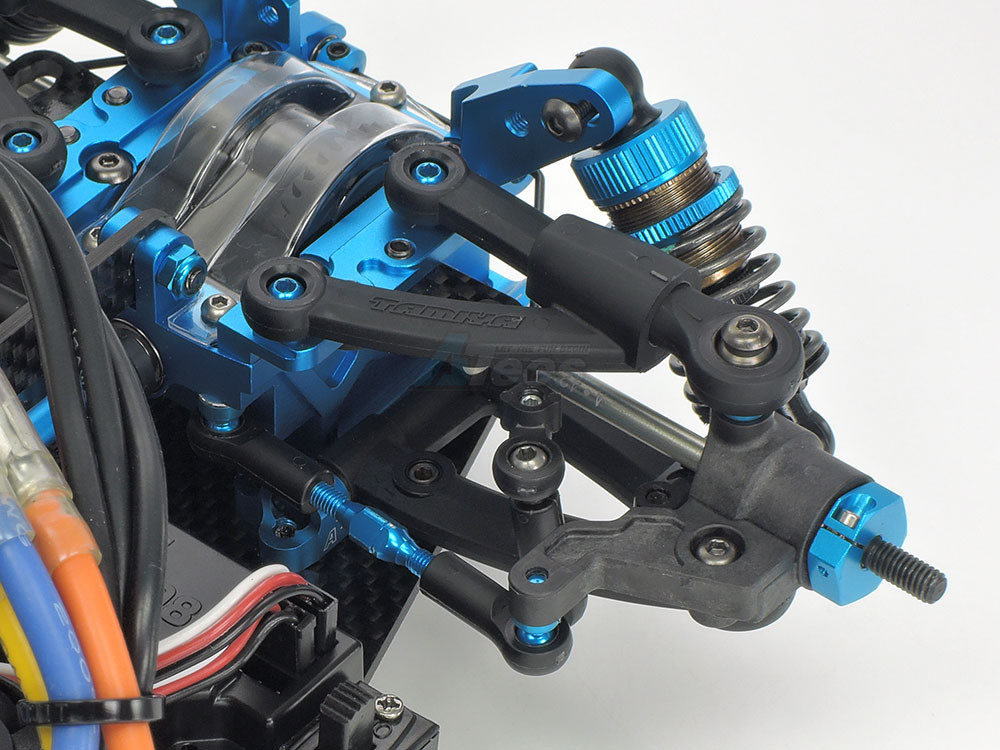

    • The front A-shaped arm suspension employs Super Short Big Bore dampers and uses 5.8mm balls to connect top and bottom sections for superior responsiveness.
    • The rear suspension utilizes tie rods for easy adjustment of toe angle on upright side.

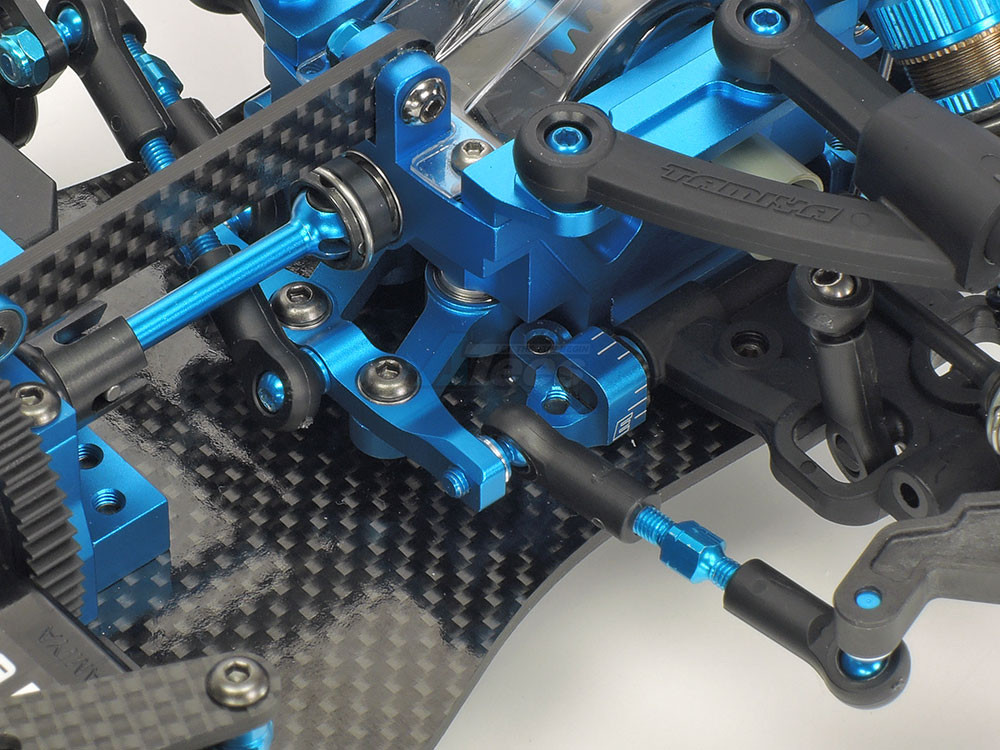

    • The steering linkage is affixed directly to bulkhead to limit any impact upon chassis roll.

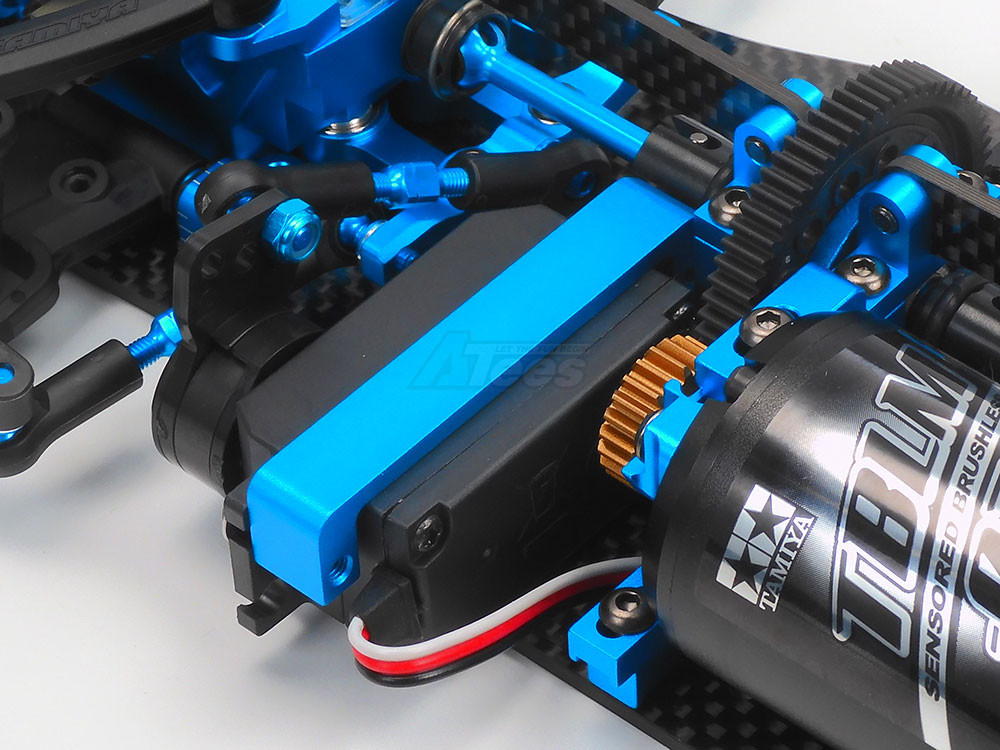

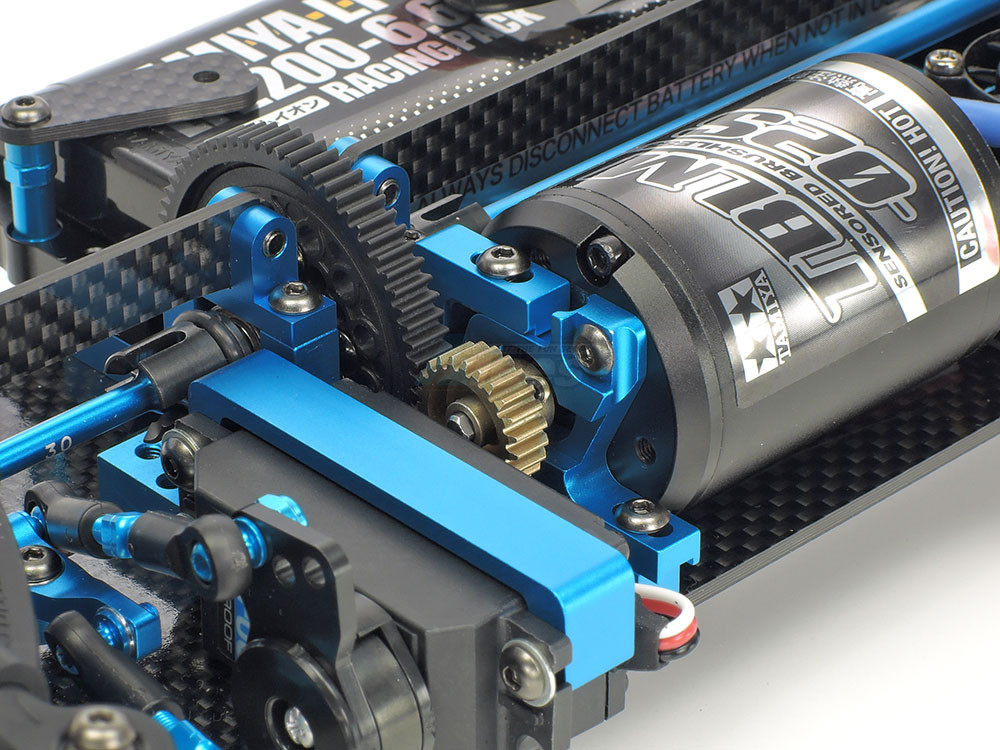

    • Features efficient, fuss-free adjustment of motor backlash via two screws on chassis upside.

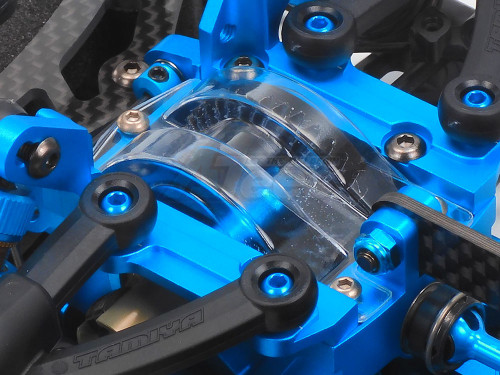

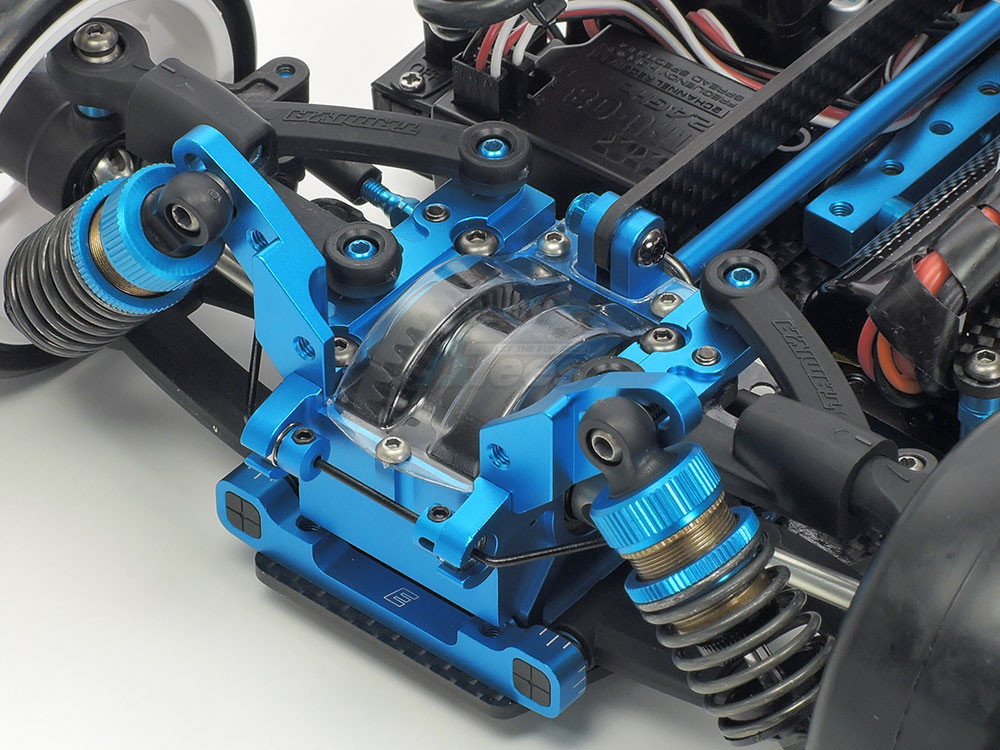

    • Highly-efficient shaft-driven 4WD is achieved with a front direct coupling and double cardan drive shafts, plus a rear gear differential unit and aluminum drive shafts.
    • Uses urethane front bumper (from Item 58693: TA08 PRO chassis) for great aerodynamics.

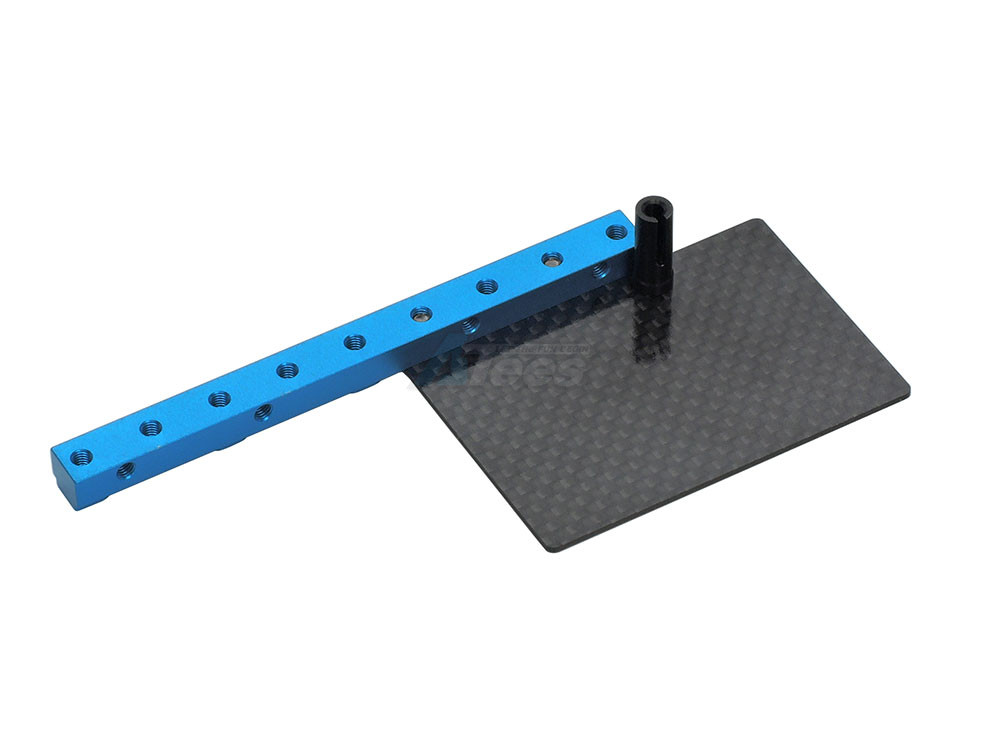

    • Carbon fiber, floating R/C equipment deck attached by screws removes use of double-sided tape for maintenance.

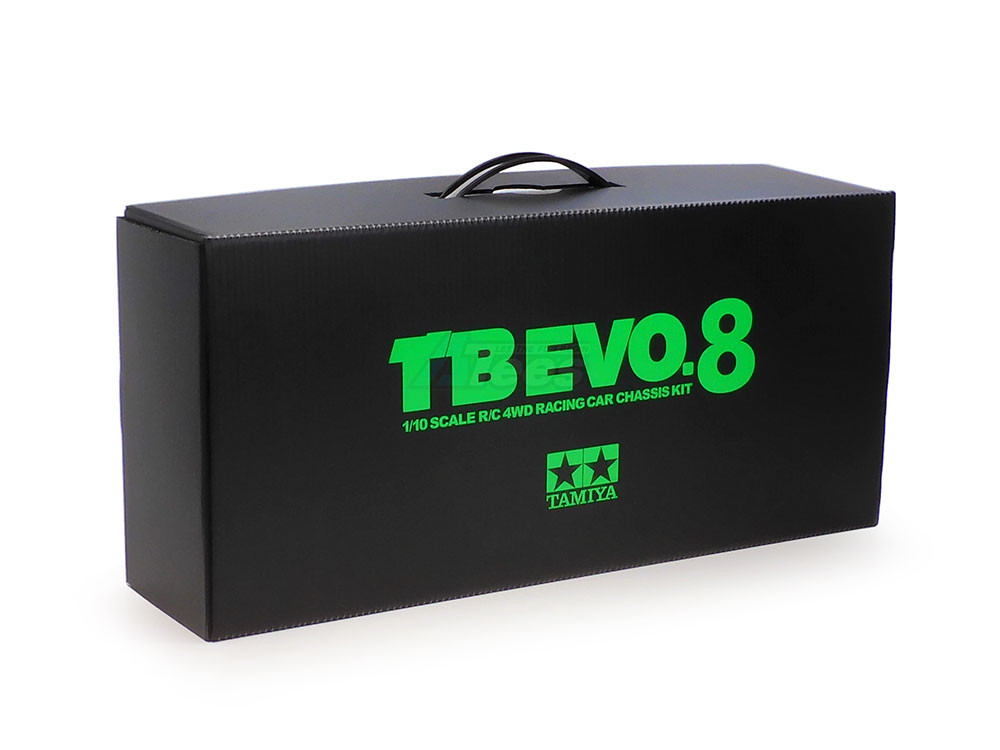

    • Comes with a carrying case.

    Specification:
    • Length: 383mm (no body)
    • Width: 186mm
    • Wheelbase: 257mm
    • Carbon fiber double deck frame (2.25mm upper, 2.0mm lower)
    • Aluminum center stiffener
    • Shaft-driven 4WD with 2 motor positions
    • Front direct coupling, rear oil-filled gear differential
    • 3-piece steering tie-rod
    • 4-wheel independent double wishbone suspension
    • Super-short big bore oil dampers

    Requires:
    • 2-channel radio
    • Steering servo
    • ESC
    • Motor
    • 7.2-7.4volt battery
    • 1/10 scale touring car body
    • Tires

    New Parts
    • Carbon fiber components:
    • Lower deck / upper decks x4 (two each for front mid motor layout or rear mid motor layout respectively) R/C equipment deck

    Aluminum components:
    • One-piece lower bulkheads / front upper bulkhead / rear upper bulkhead / motor mount /
    • propeller shafts (two for front mid motor layout and one for rear mid motor layout) / servo mount /
    • center stiffener / king pin balls (Item 22016) / steering bridge / battery mount & mount spacer

    Polycarbonate component:

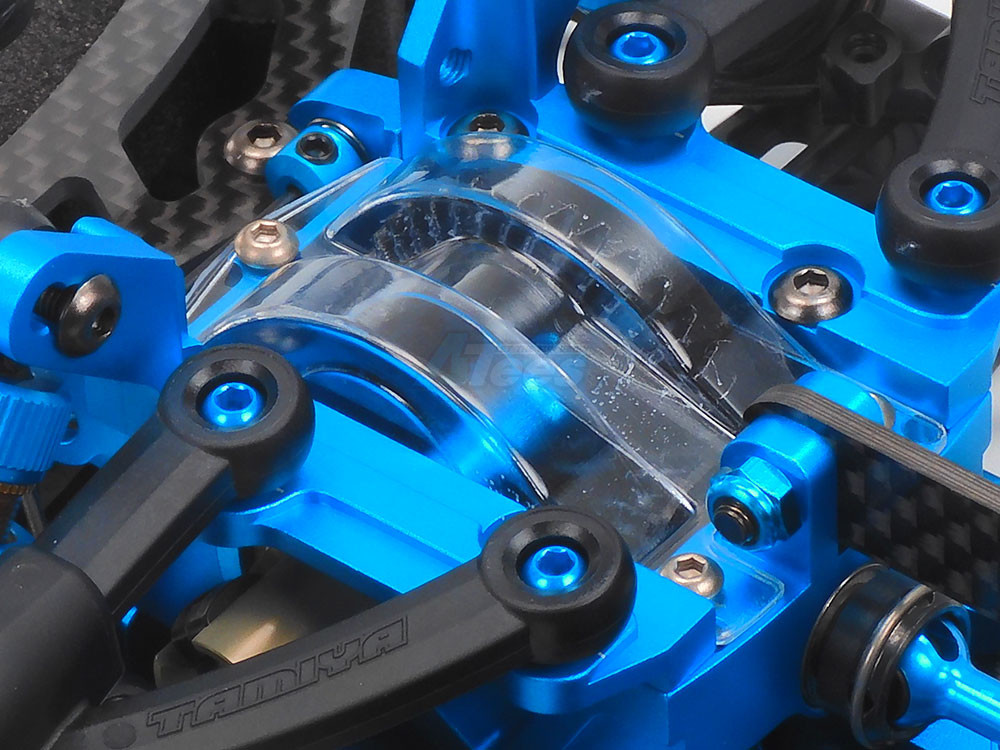

    • Differential covers
  • Package total weight: 1380.00 grams (incl. packaging)
  • Package size: 23.00 x 48.00 x 14.00cm
  • Factory description: Tamiya TB Evo 8 1/10 RC TB EVO.8 Chassis Kit
  • Manufactured by Tamiya
  • Manufacturer number: TAMIYA/42383
  • This item is not eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
