Showing #6 of 1:24 FCX24 Power Wagon Parts
LOADING IMAGES
|
PART: #FT/FUR-2330
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
TAGGED CATEGORIES:
- Support:
- FMS 1:24 FCX24 Power Wagon RTR
- FMS 1:24 FCX24 Chevrolet K5 Blazer RTR
- FMS 1:24 FCX24 Smasher V2 Monster Truck RTR
Features:
- A smaller and lighter brushless motor Micro Komodo for low C.G. setup, same like stock
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Built-in Bluetooth module for wireless connection
- Precision CNC Steel pinion for long-lasting operation
- Powerful at low speed but also more powerful and fast at high speed
- High torque at low-speed crawling
- Super smooth without any cogging at both low and high speed operation¬
- Lifetime FREE firmware upgrade!
- Drop in replacement for stock brushed system and skid plate.
- (Not compatible with STOCK RX board)

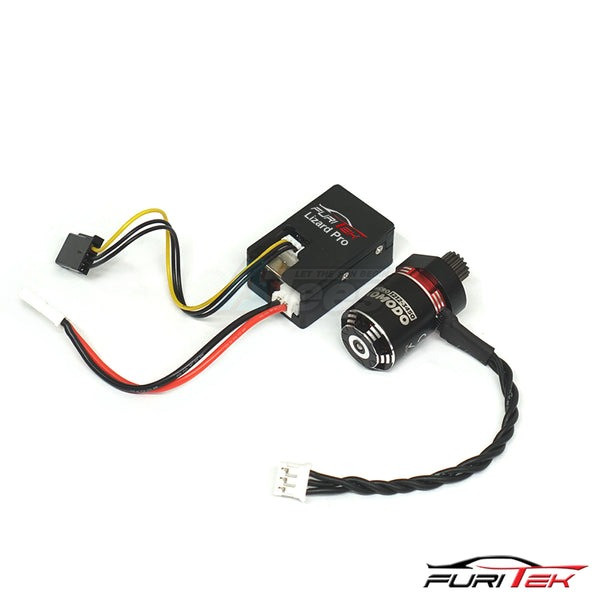

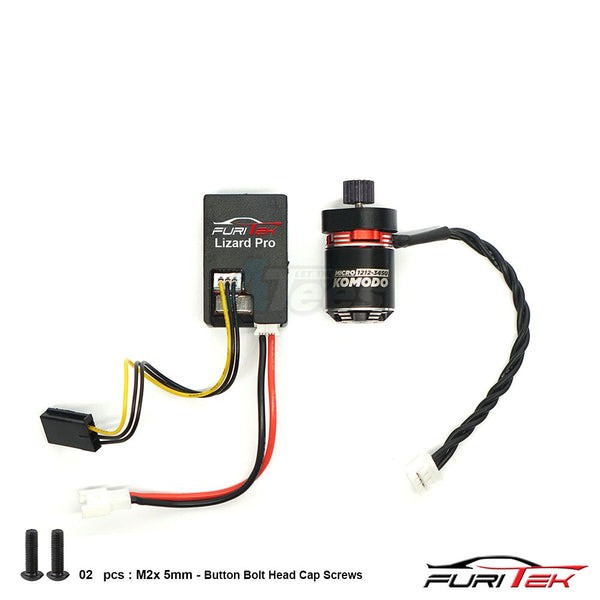

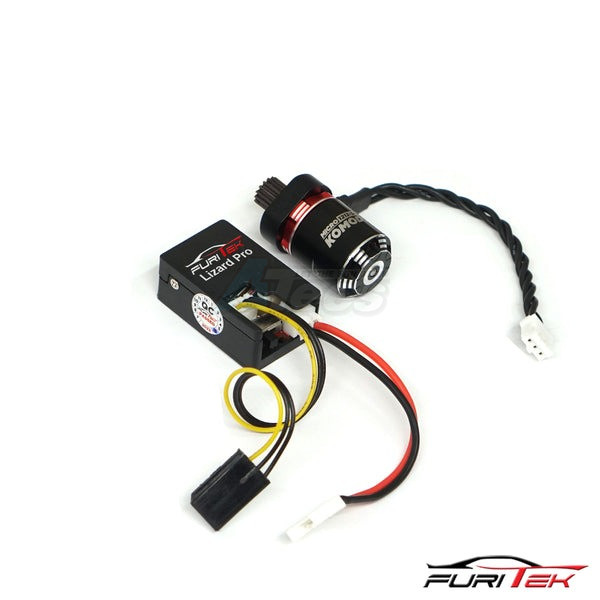

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC WITH FOC TECHNOLOGY
- 1 x built-in Bluetooth module
- 1 x Micro Komodo 1212 3450KV brushless motor
- 1 x 15T CNC STEEL Pinion
- 1 x CNC aluminum motor mount
Motor Features and Specs
Features:
- 12-pole hi-torque motor design.
- Super thin (0.2 mm) stator laminations---lower eddy losses--- maximize efficiency.
- Japanese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision-engineered for maximum energy conversion.
- High purity and higher temperature single copper windings ---lower copper losses,
- Very good heat dissipating--maximizes efficiency.
Specifications:
- KV (RPM/Motor) – 3450
- No-load current @10V – 0.7A
- Watt – 120W
- Battery – 2-3S
- Resistance – 0.16 Ohms
- Max Current – 10A
- Slot/Pole – 12
- Motor size (mm) – 15.5x20.6
- Shaft (mm) – 1.5x6
- Weight (g) – 17.5
ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL AX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX
Specifications:
- Support 2S-3S lipo battery
- Constant current: 30A
- Burst current: 50A
- Built-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 grams
- Package total weight: 52.00 grams (incl. packaging)
- Factory description: Furitek FMS 1:24 FCX24 Power Wagon Furitek Stinger Brushless Power System
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2330
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
