***Pre-order specials*** Each pre-order or first batch kit gets one Team Raffee Co. Mini Hardware Toolset #TRC/302912. This tool set is useful for building hard bodies, smaller hardware. The tool set will be packed inside the kit.
Introducing the all-new Boom Racing BRX01 AWB 1/10 Adjustable Wheelbase Chassis Kit with ZIL Pickup Hard Body. This product is Recon G6 certified by AMS Scale Performance at the European The FIX 2024 event.

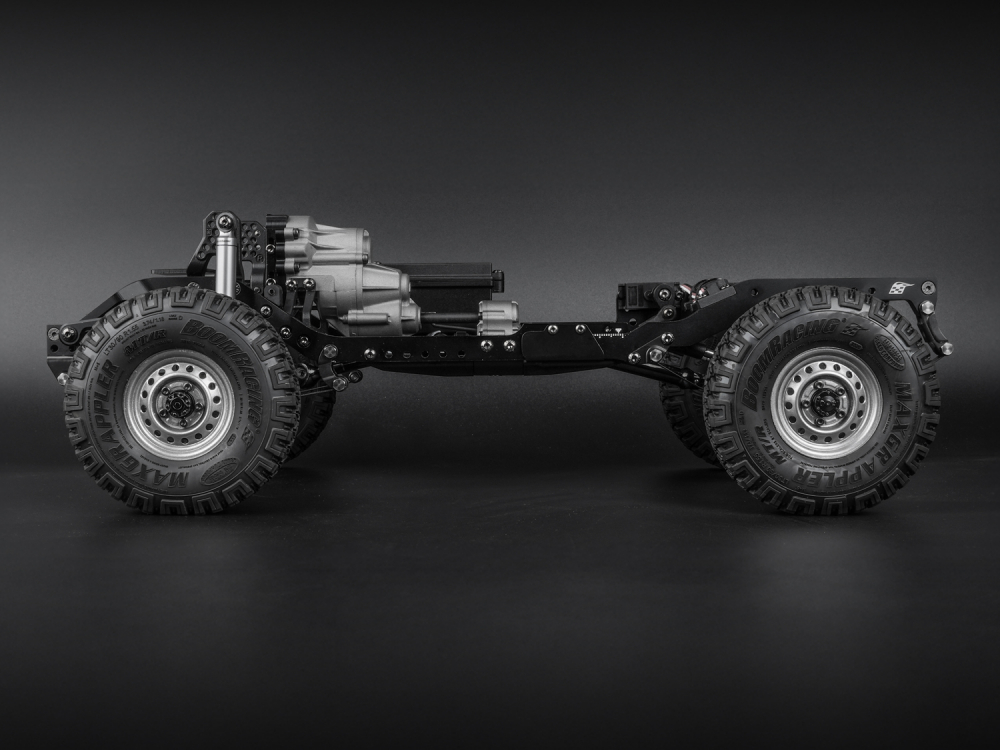

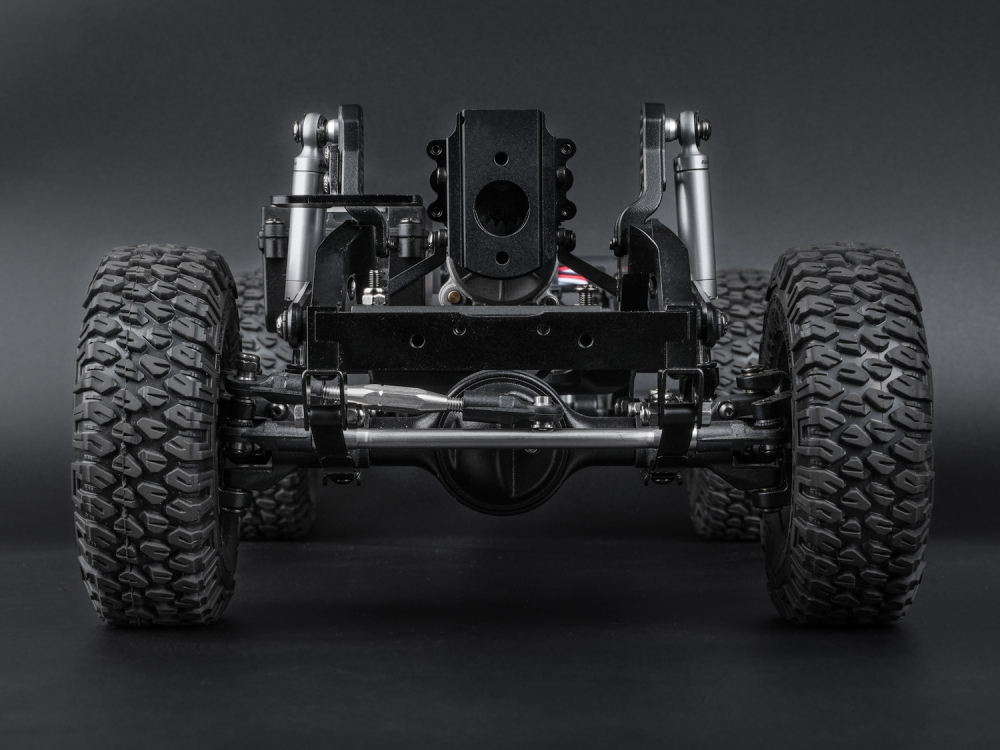

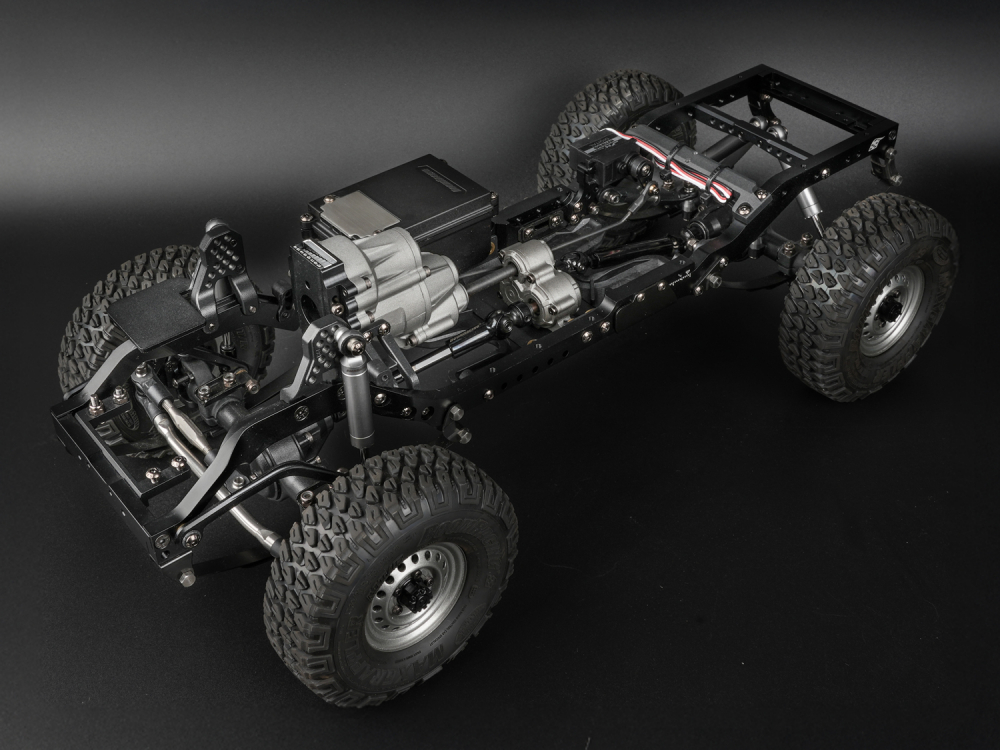

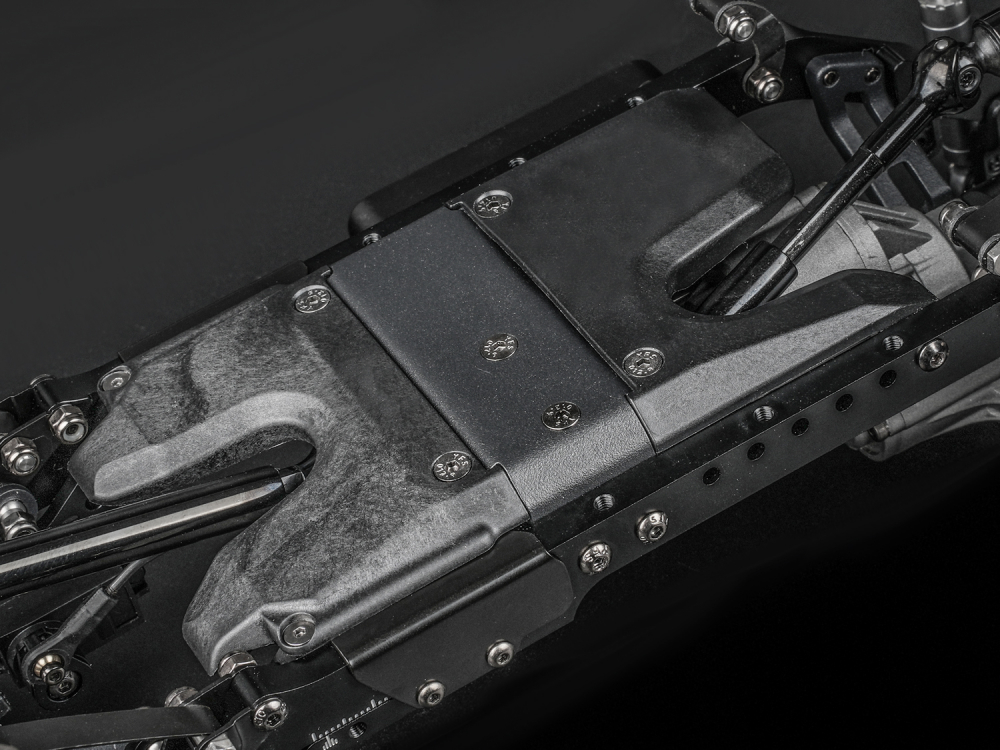

BRX01 AWB Chassis

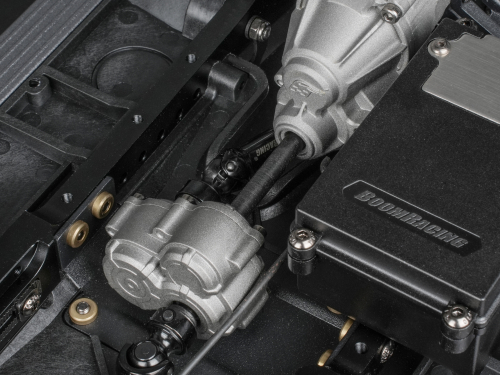

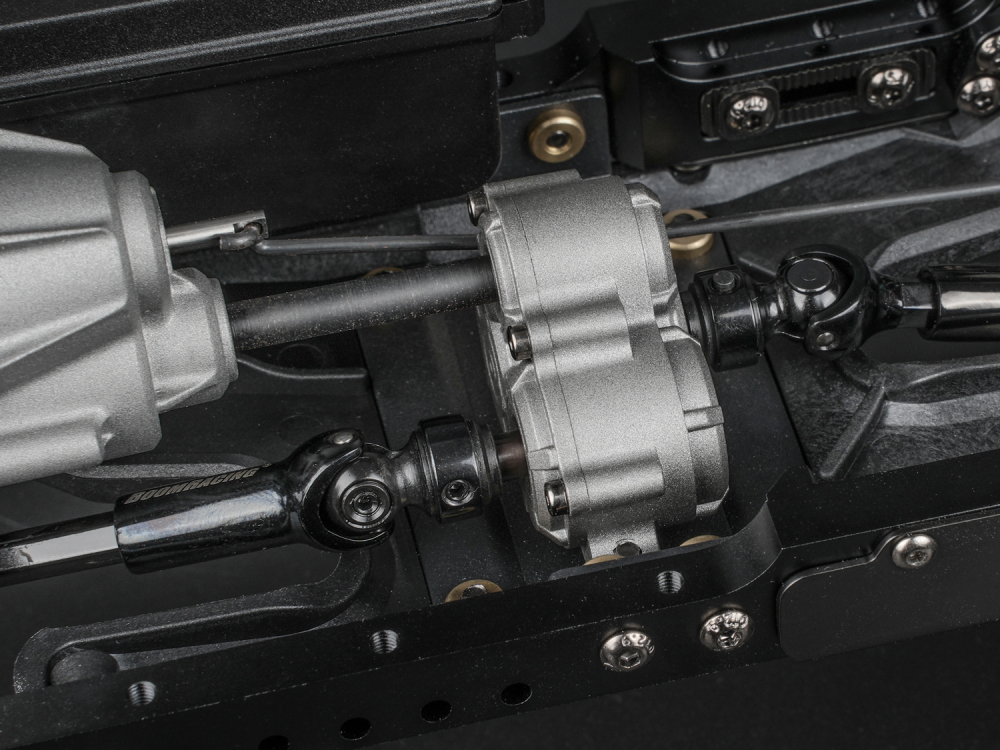

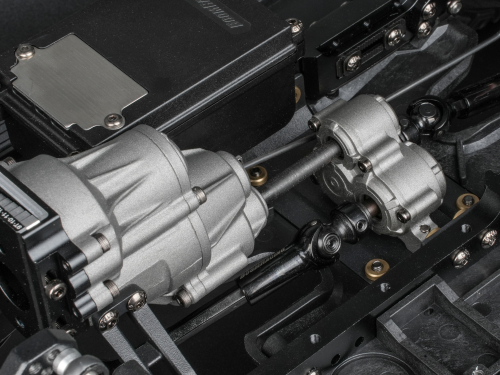

The BRX01 AWB (Adjustable Wheelbase) is a new variant of the popular BRX01 chassis, featuring a full leaf spring suspension setup and a wheelbase adjustable from 267mm to 287mm or 10.5" to 11.3". It is equipped with the robust BCF2™ two-speed transmission and divorced B2X™ transfer case, connected by a high-efficiency output shaft originally introduced in the BRX02 88 chassis. This drivetrain layout simplifies the build process and reduces play for improved efficiency and smoother operation.

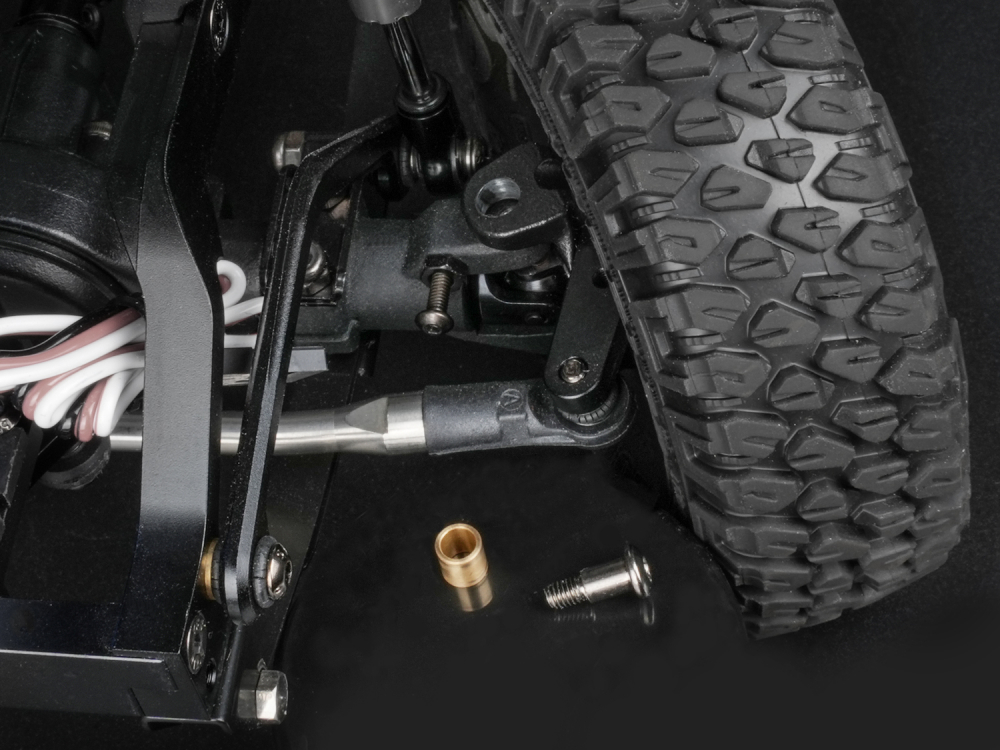

At its core, the BRX01 AWB runs on the proven BRX80 PHAT™ axles, with an all-new C-hub and knuckle design using kingpins and brass bushings for enhanced durability and long-term performance. The axles use our popular proprietary AR44 heavy-duty hardened steel triangular keyed bevel helical cut 30/8T diff gears, with the same but reversed cut gears in the rear axle. The rear axle counter-rotates, which results in near-zero torque twist for chassis stability.
Heavy-Duty Shafts

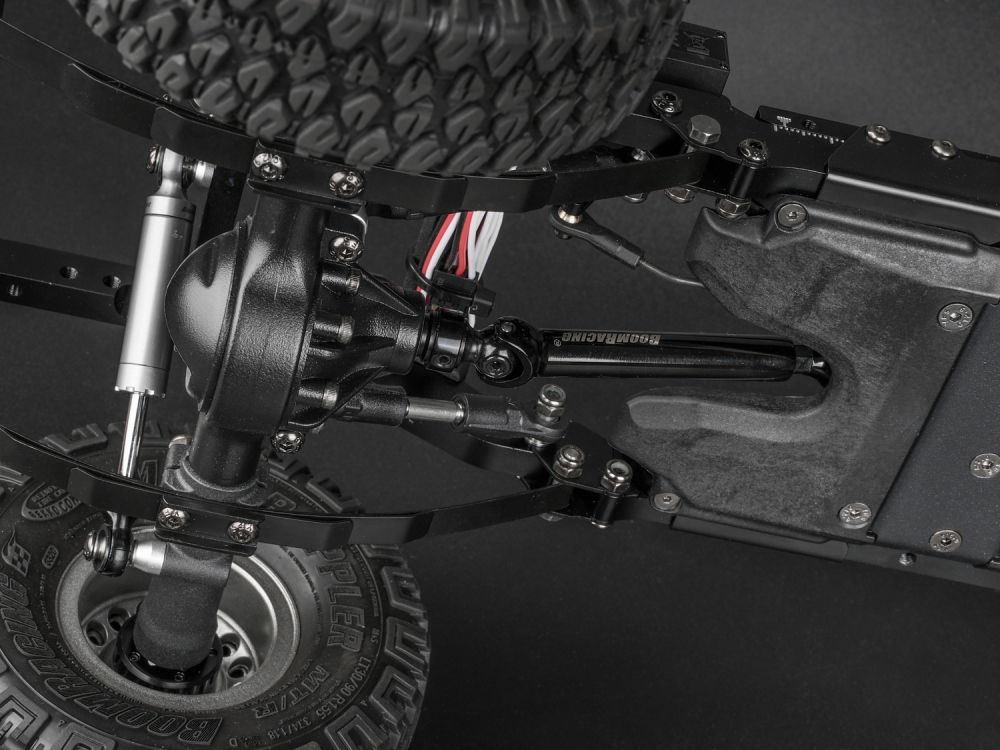

The BADASS™ heavy-duty front and rear steel axle shafts and KUDU™ center CVD driveshafts are durable, smooth, and capable of high articulation angles. KUDU™ driveshafts are rebuildable and have become the standard drive shaft for all Boom Racing vehicles.

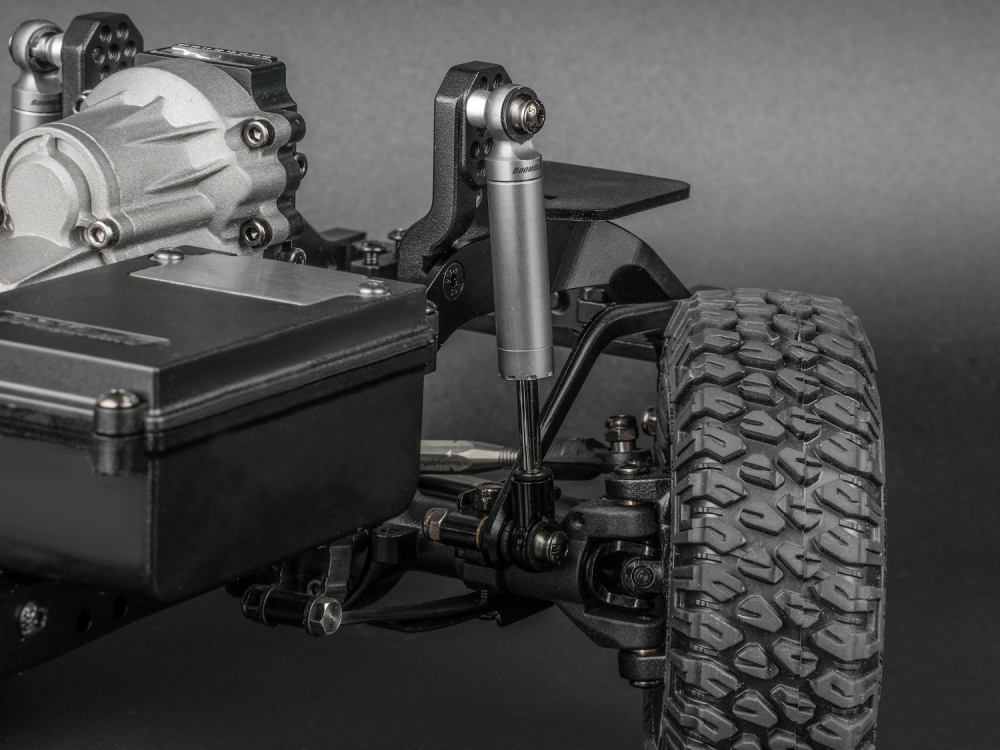

Suspension

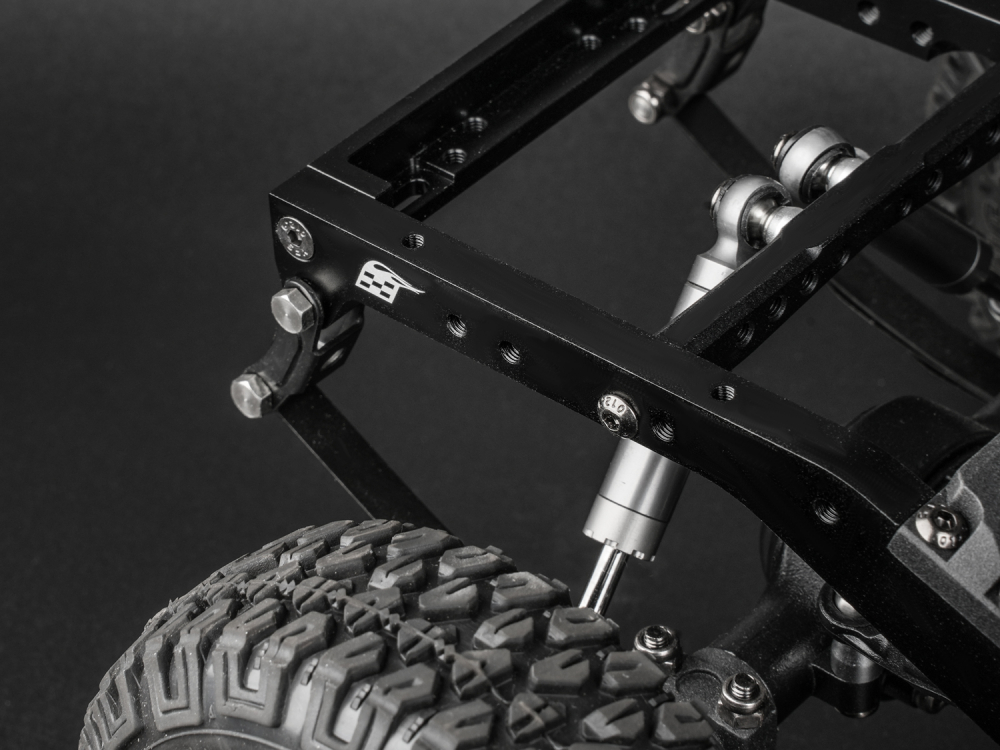

The suspension system features front and rear leaf springs, front and rear anti-wrap bars, and high-performance, scale-accurate KUDU™ 70mm oil-filled dampers.
Each leaf spring set has a master leaf with three graduated leaves for suspension stability and adjustability. You may use up to four leaves for adjusting the rebound rate. Anti-wrap bars attached to the front and rear axles prevent axle twists, and realistic shackle bolts are included for the scale realism factor.
Optimized for scale performance, the KUDU™ Scale Shock Absorber features billet aluminum cylinder body for durability, steel shock shaft with titanium nitride coating, plastic pivot retainers (replaceable) for smoother swivel movements, high-degree pivot angle for high-angle articulation, and double X-Ring oil seals. It comes with cylinder and friction seals to prevent leaks and contaminants from entering. The bump stop provides an additional level of bottoming control, stainless steel pivot balls for stainless, corrosion-resisting pivot rotation, and an aluminum pivot ball tool included for hassle-free maintenance.
Adjustable Wheelbase
Need a longer setup? Optional XL rear aluminum chassis rails extend the wheelbase to 287mm–307mm.
Recommended KUDU shaft sizes for the BRX01 AWB based on different wheelbase lengths:
Wheelbase 267 to 282mm: 84-99mm #BRKD003-94 (stock rear center driveshaft)
Wheelbase 281mm to 296mm: 98-113mm #BRKD003-107
Wheelbase 293 to 307mm: 110-135mm #BRKD003-119
Optional Servo Winch
The chassis is ready for an internal servo winch by installing the optional Servo Winch Mount Kit (#BRLC7200).
Optional DIG and 2/4WD
Want dig or 2/4wd options? Swap out the B2X™ t-case for the optional DIG or SWD (2WD/4WD) t-cases. You will need the optional Mini Servo Mount for either of these two optional transfer cases.
DIG (#BRLC70101-DIG) SWD [2WD/4WD] (#BRLC70301-SWD) Mini Servo Mount (#BRLC70223L)
Mini Servo Included
A JX waterproof 8.4V metal gear mini servo for remote 2-speed shifting is included.

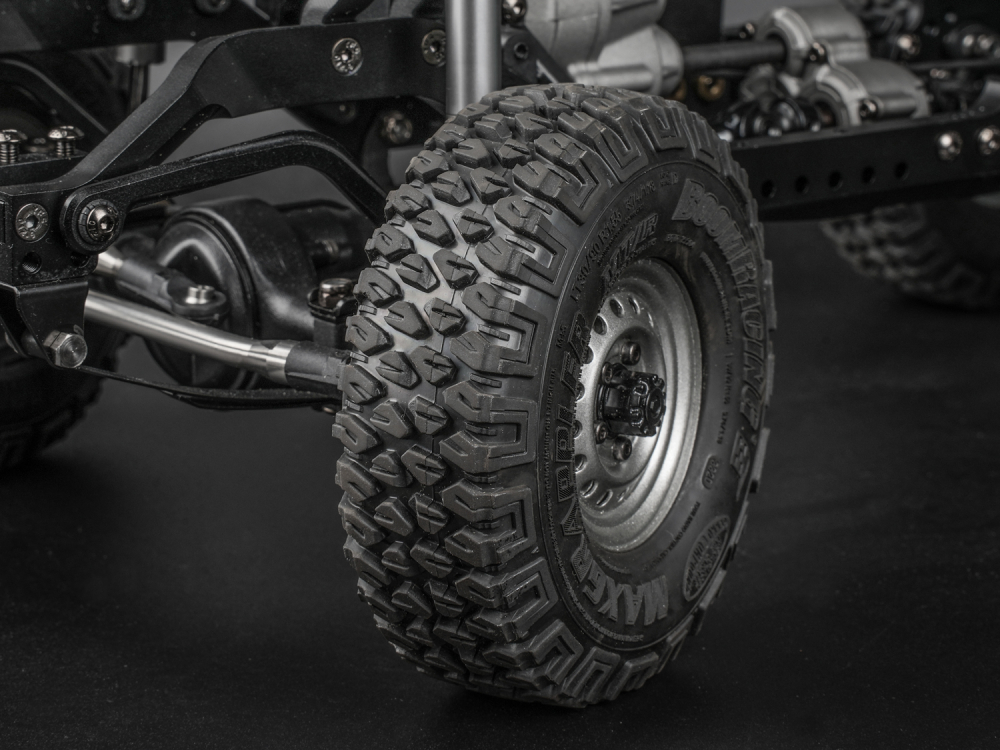

Wheels and Tires
Included are 1.55" MAXGRAPPLER™ Gekko (Black) Compound tires, single-stage foam inserts, and 1.55" classic steelies beadlock wheels that are reversible for versatility.

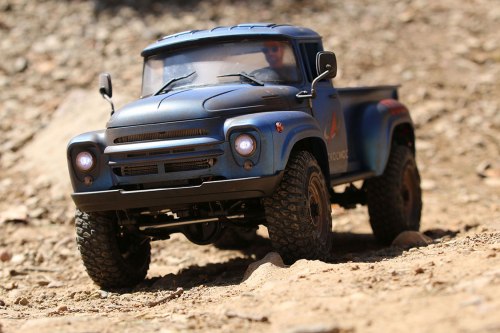

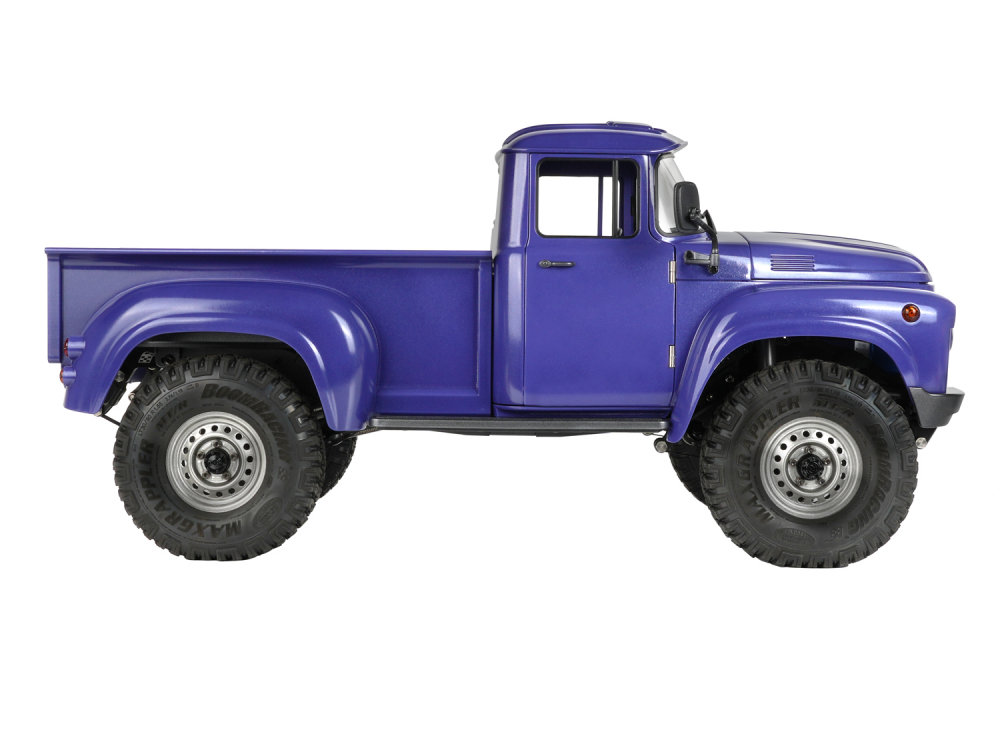

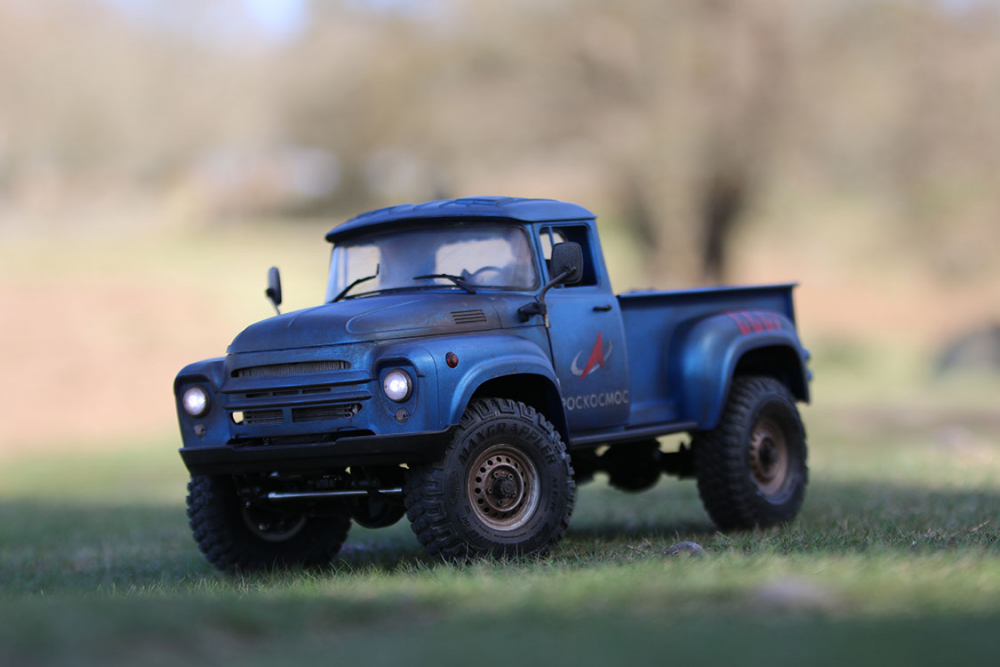

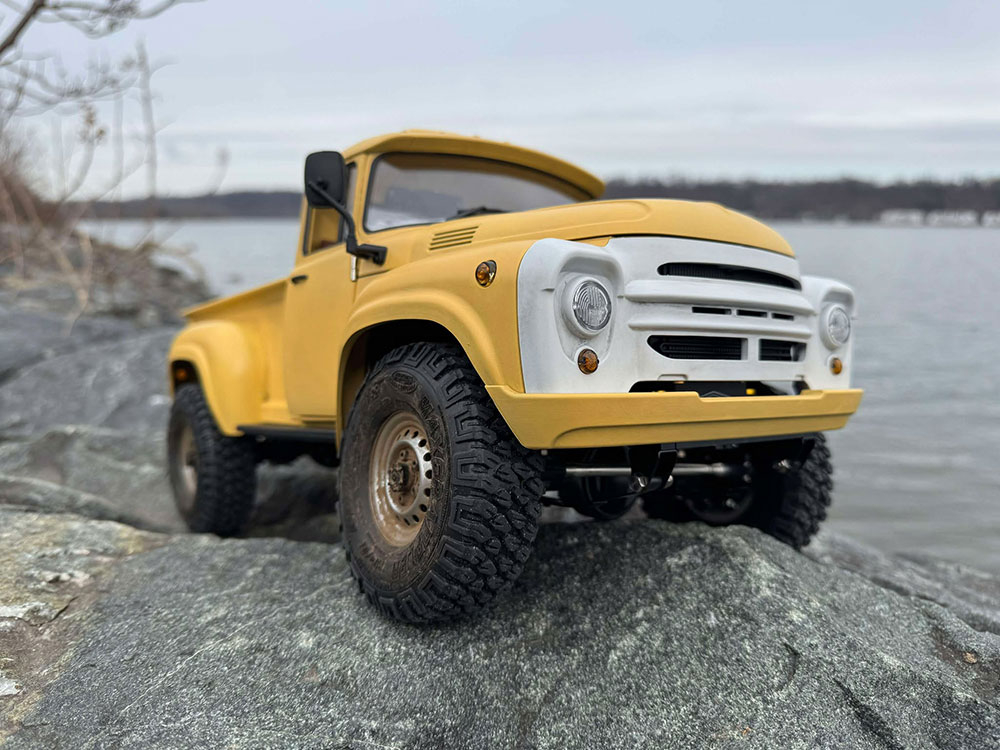

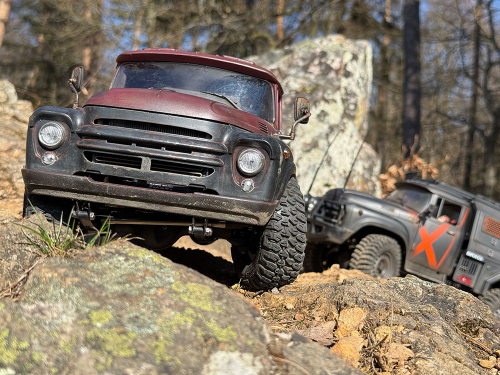

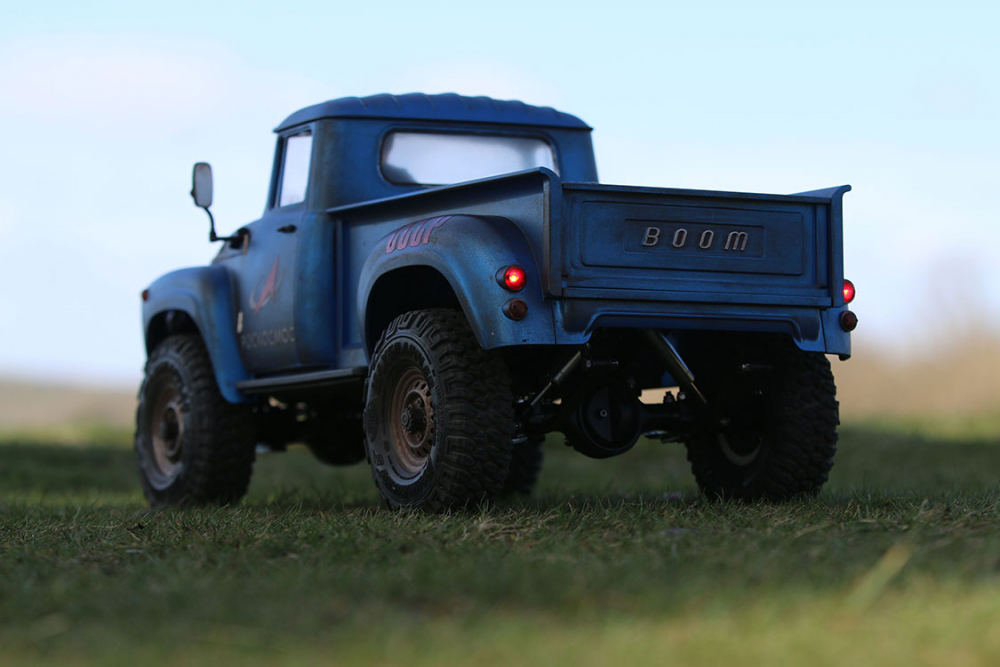

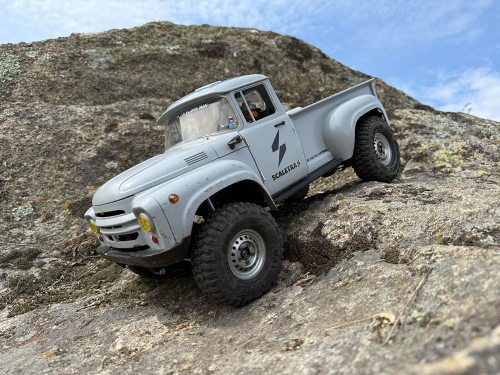

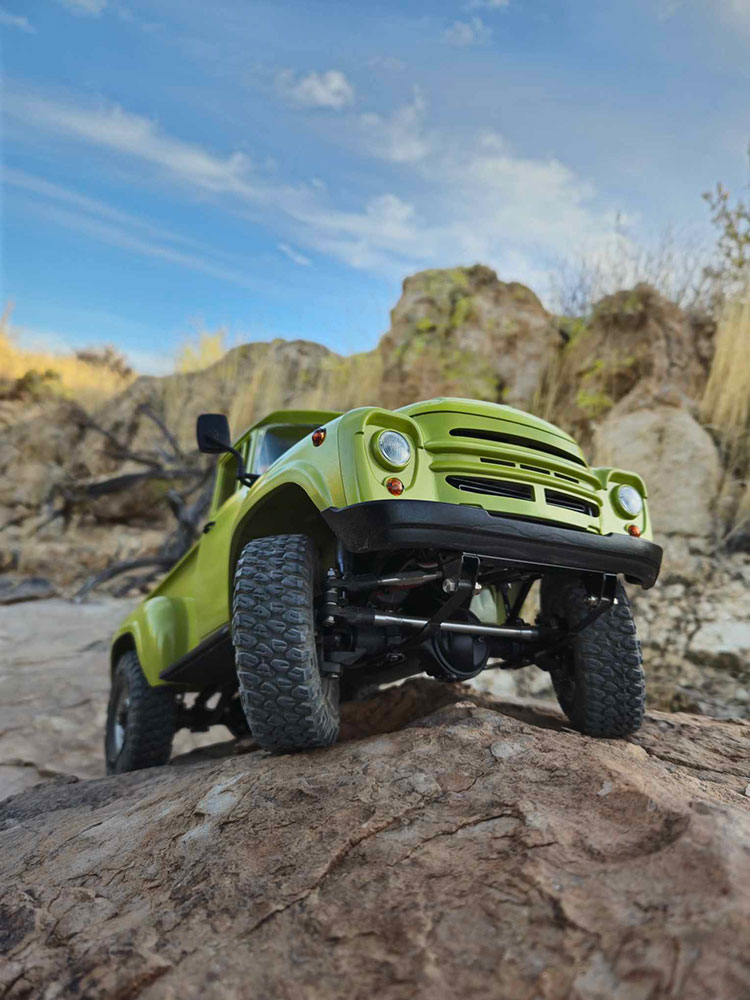

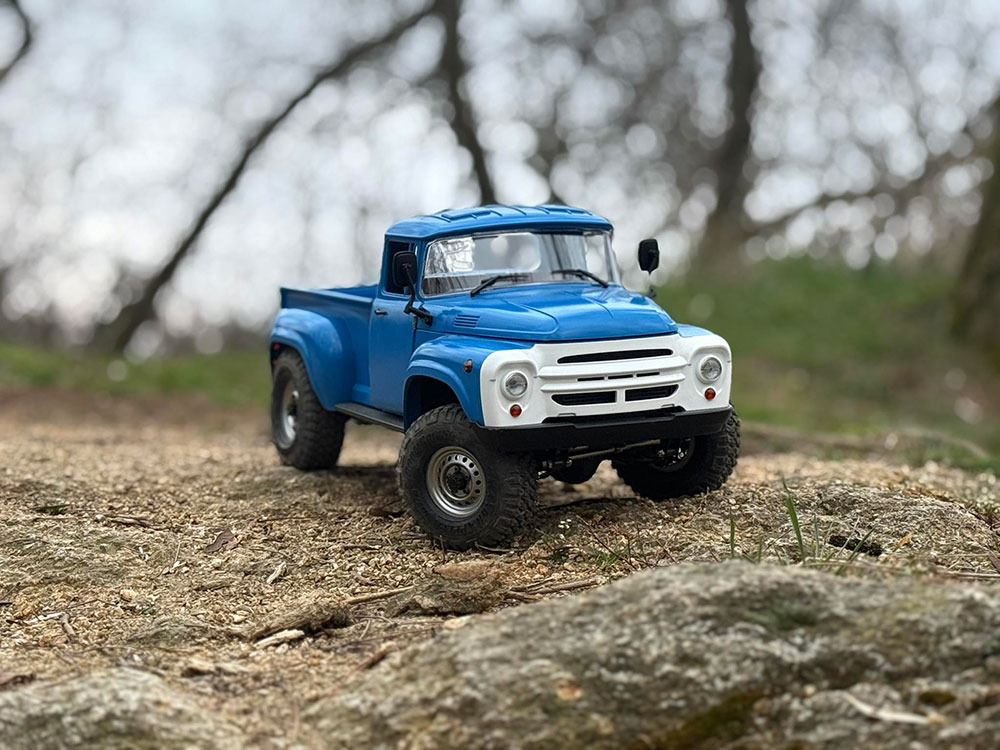

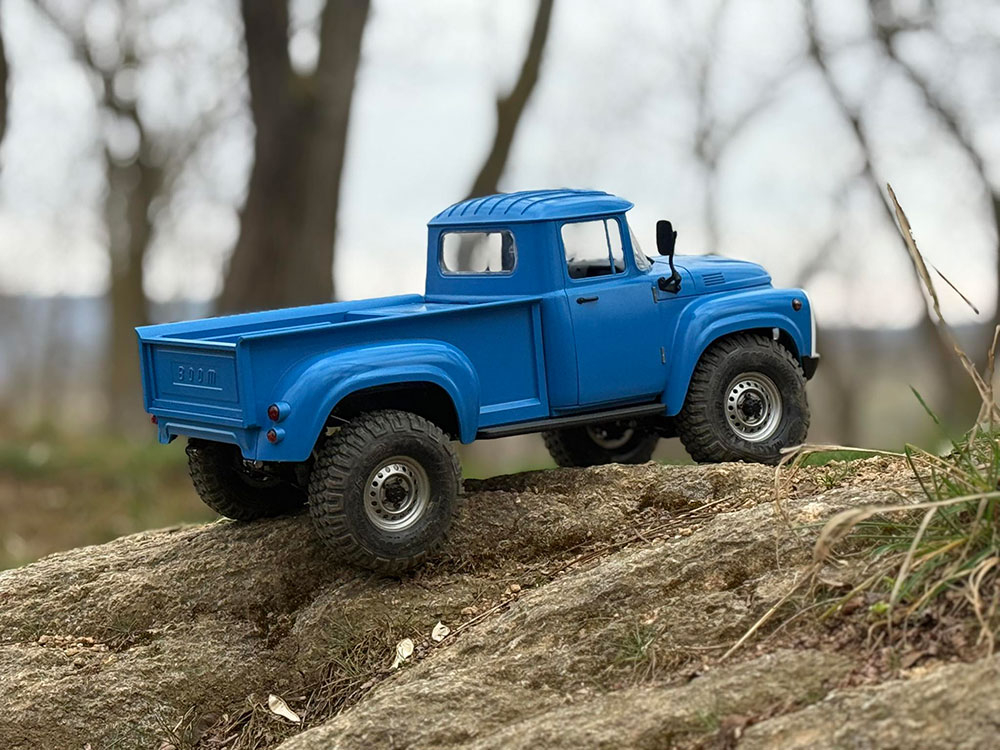

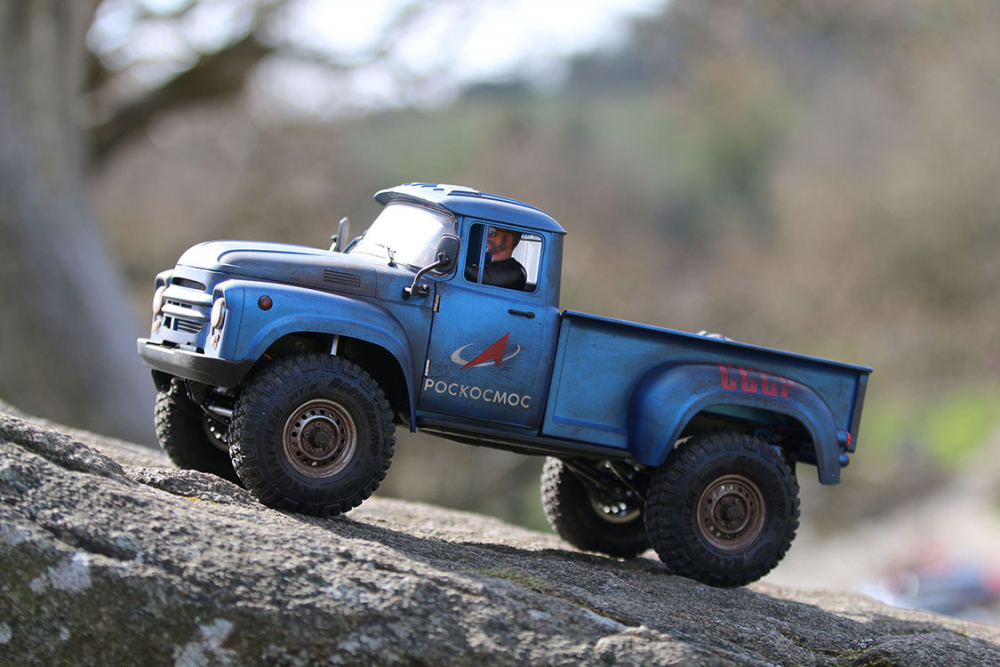

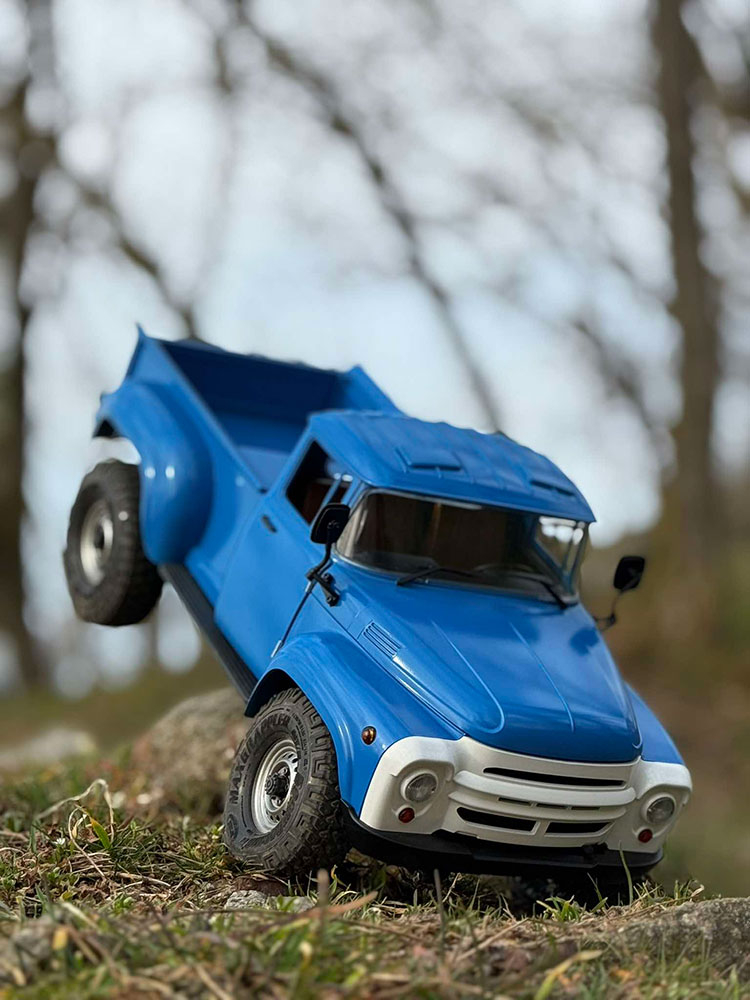

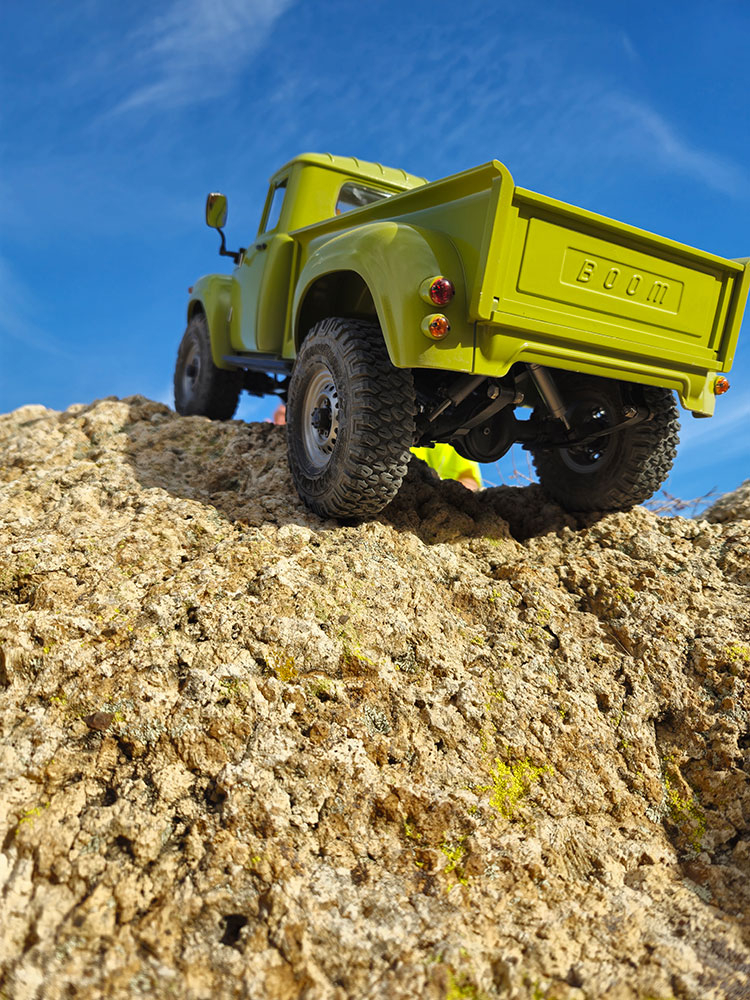

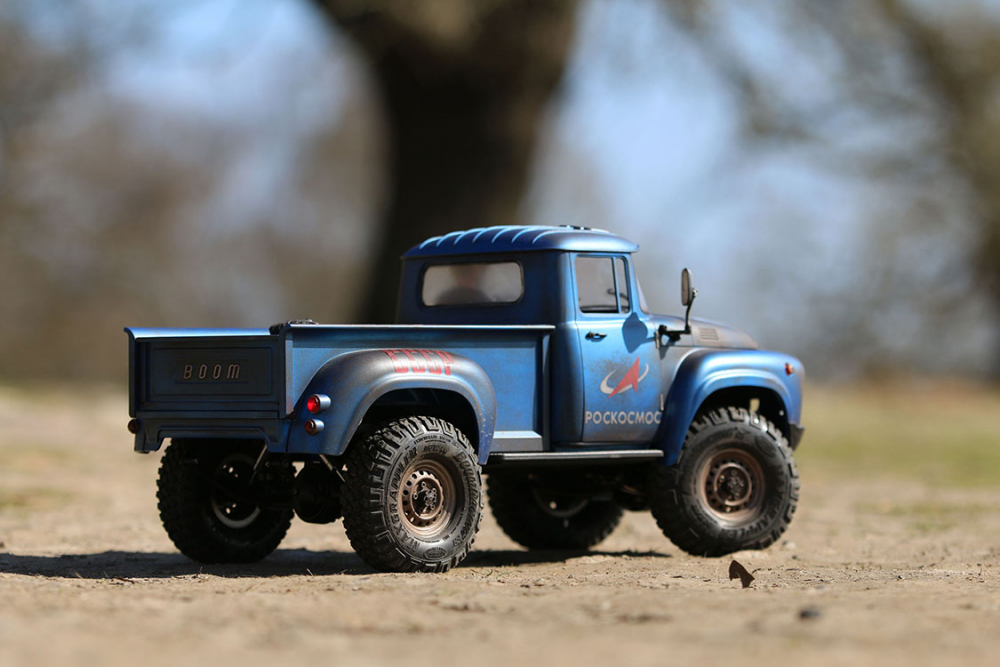

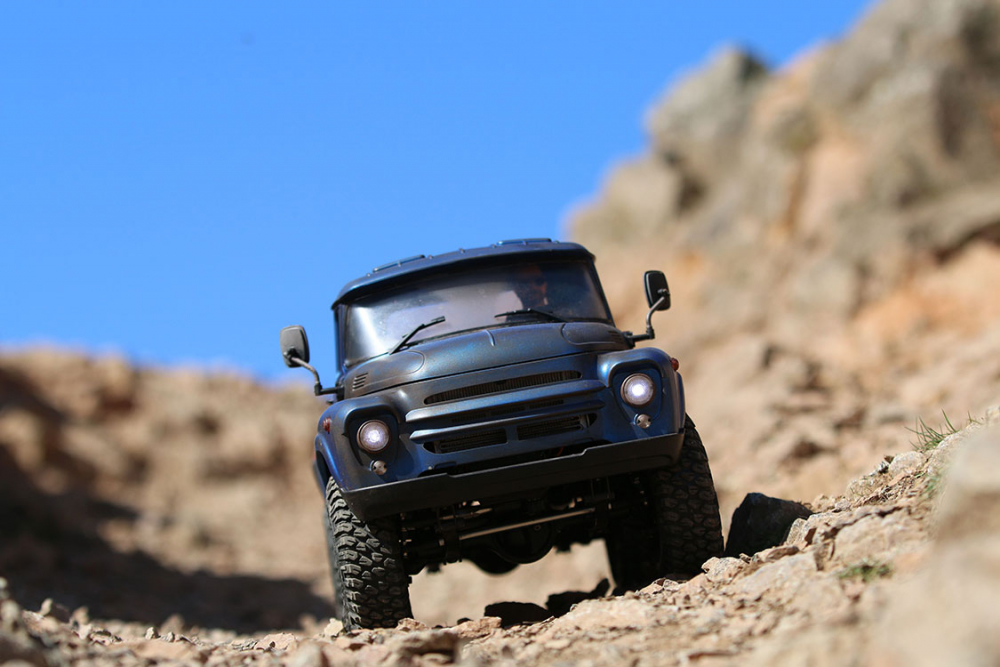

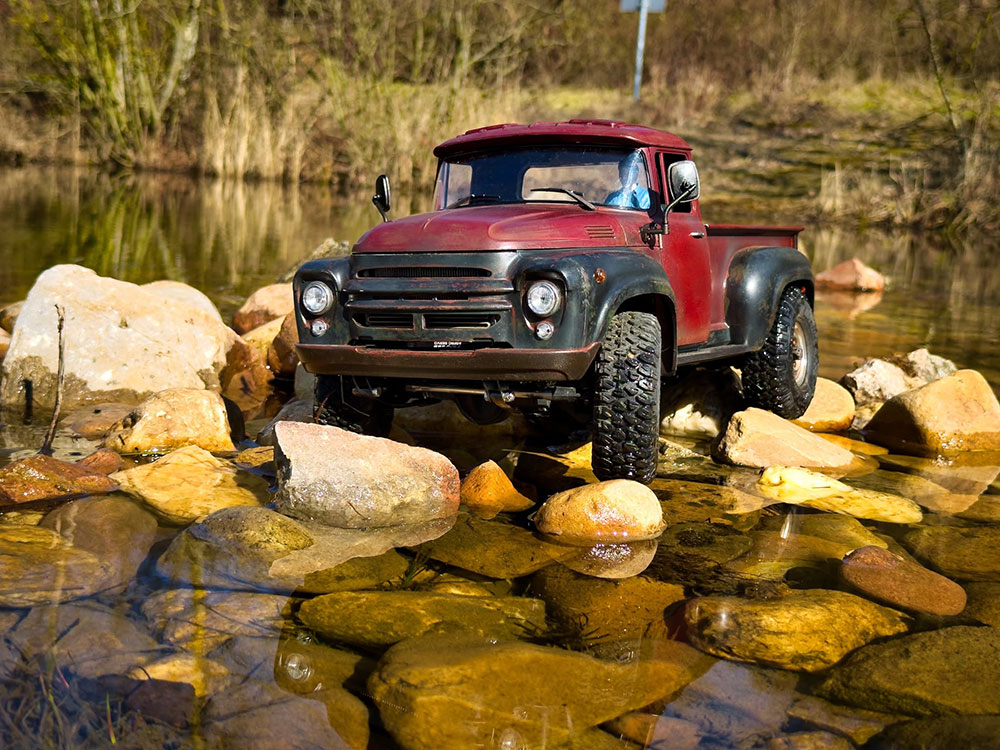

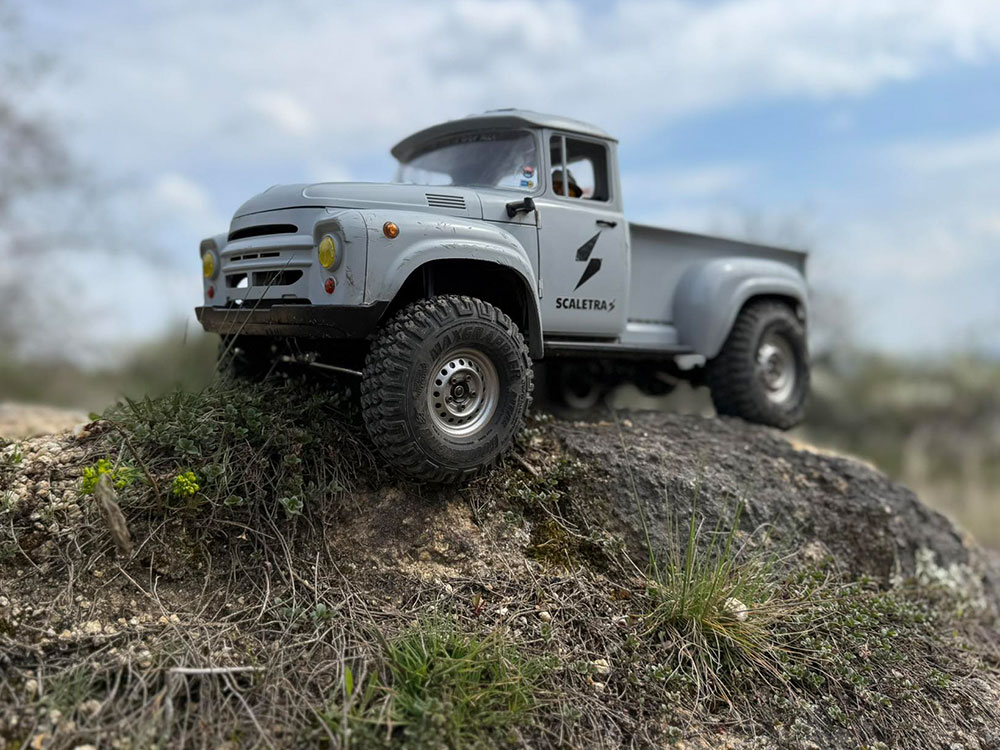

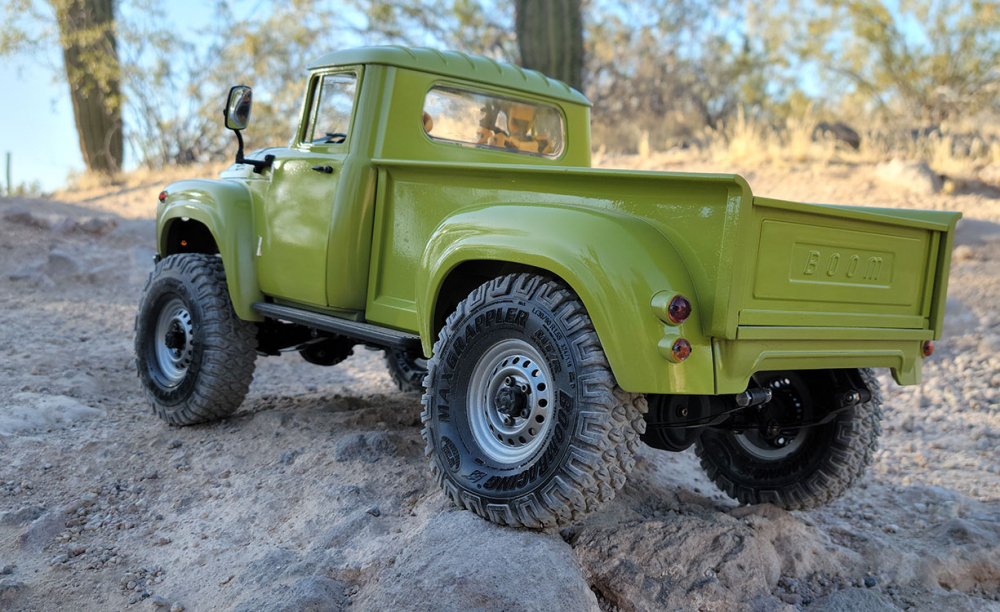

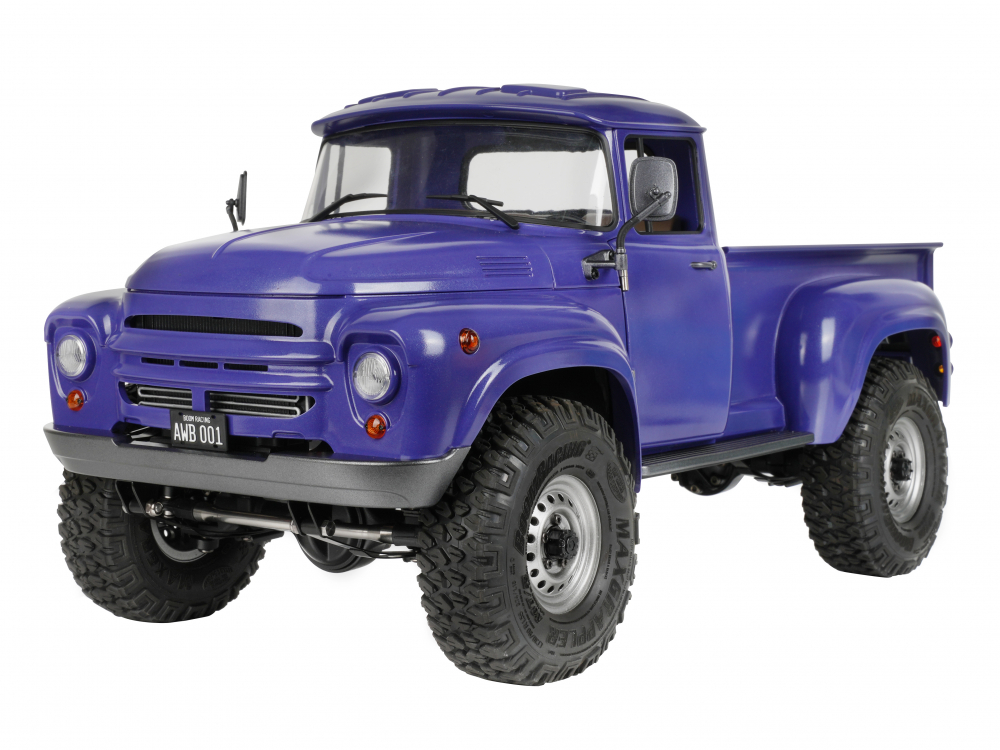

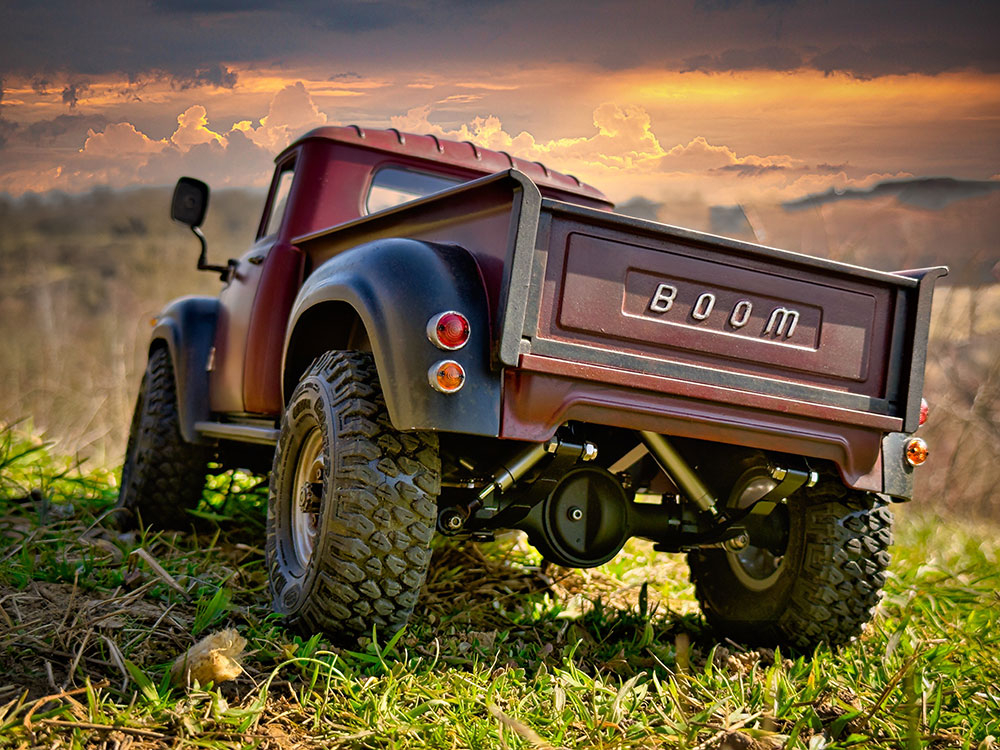

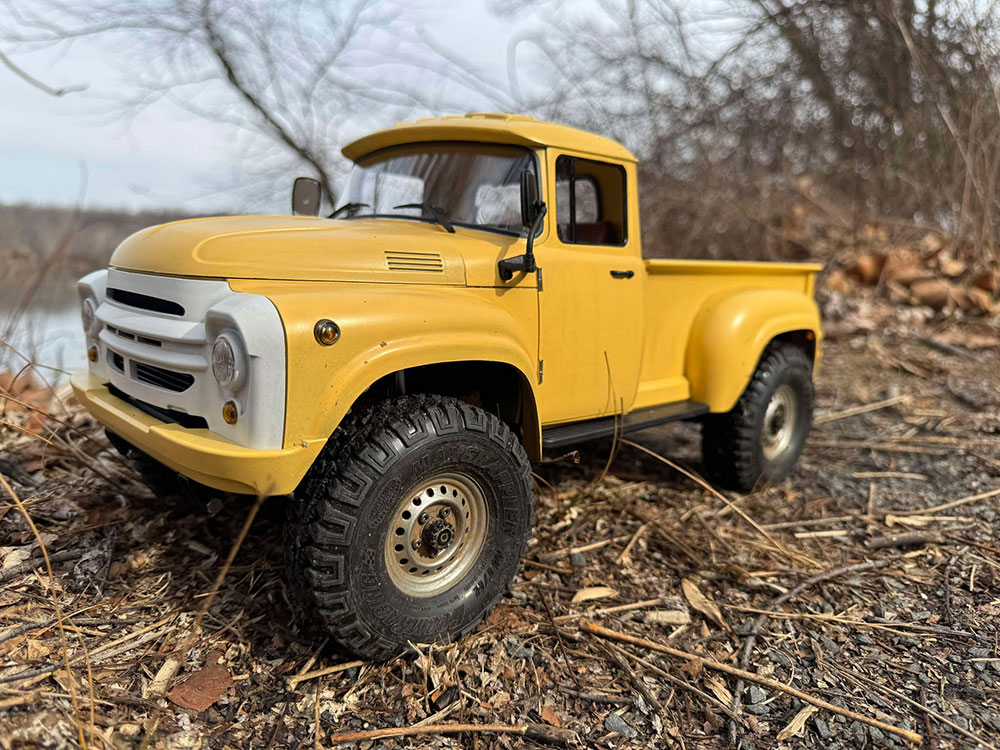

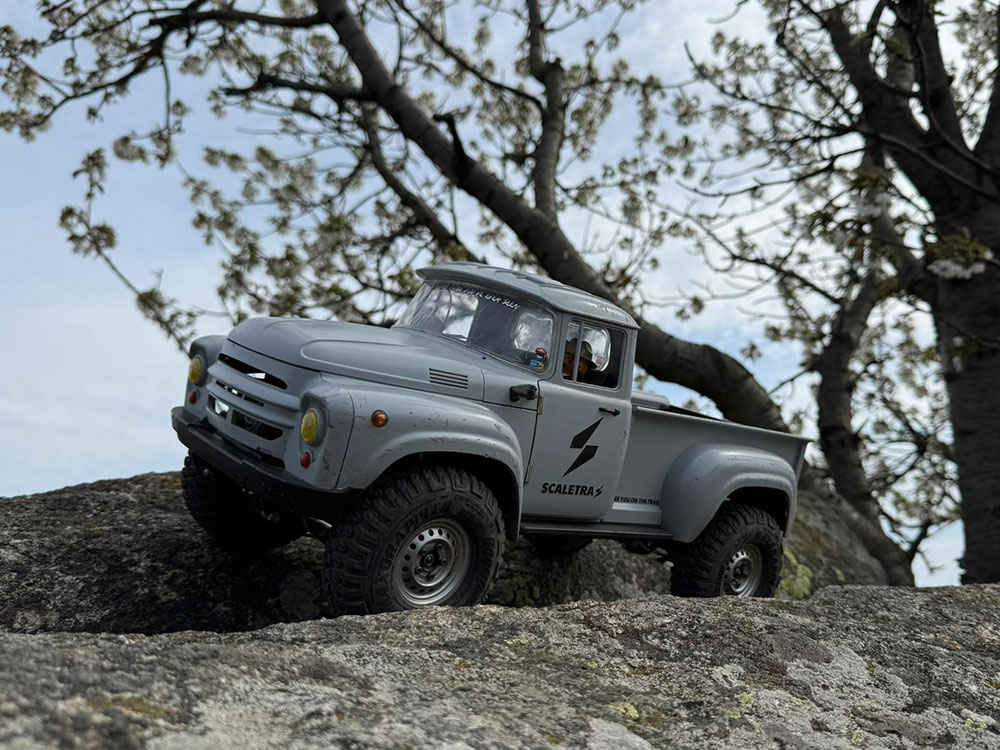

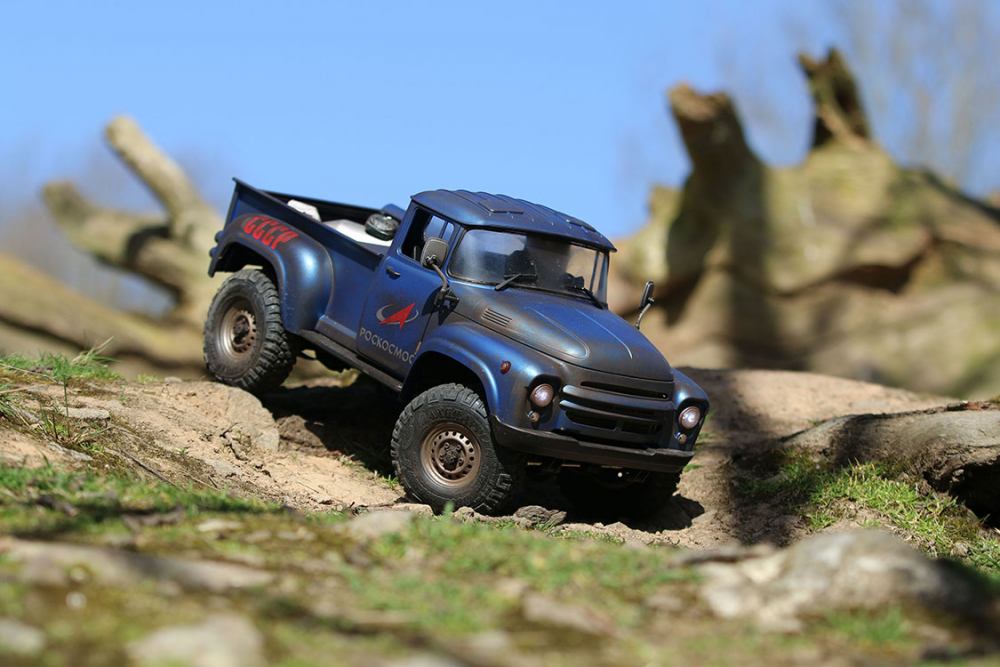

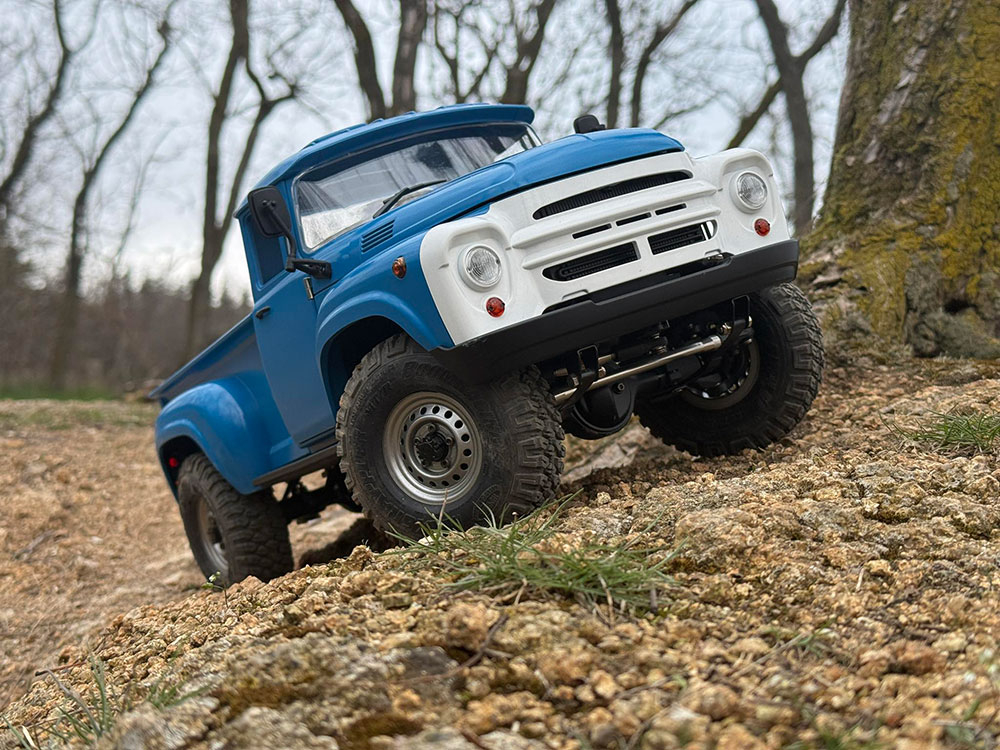

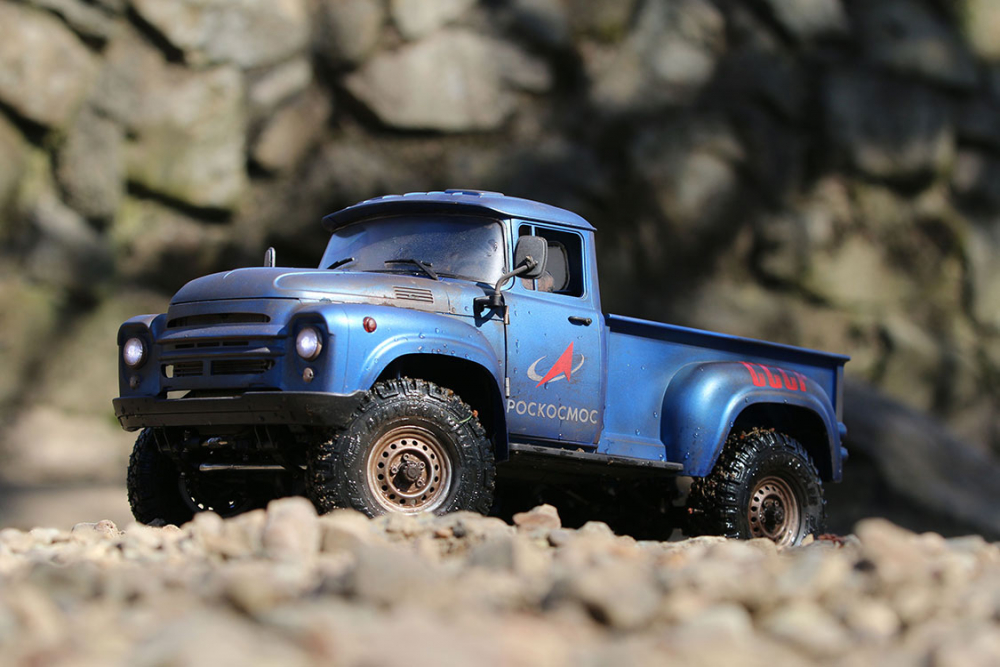

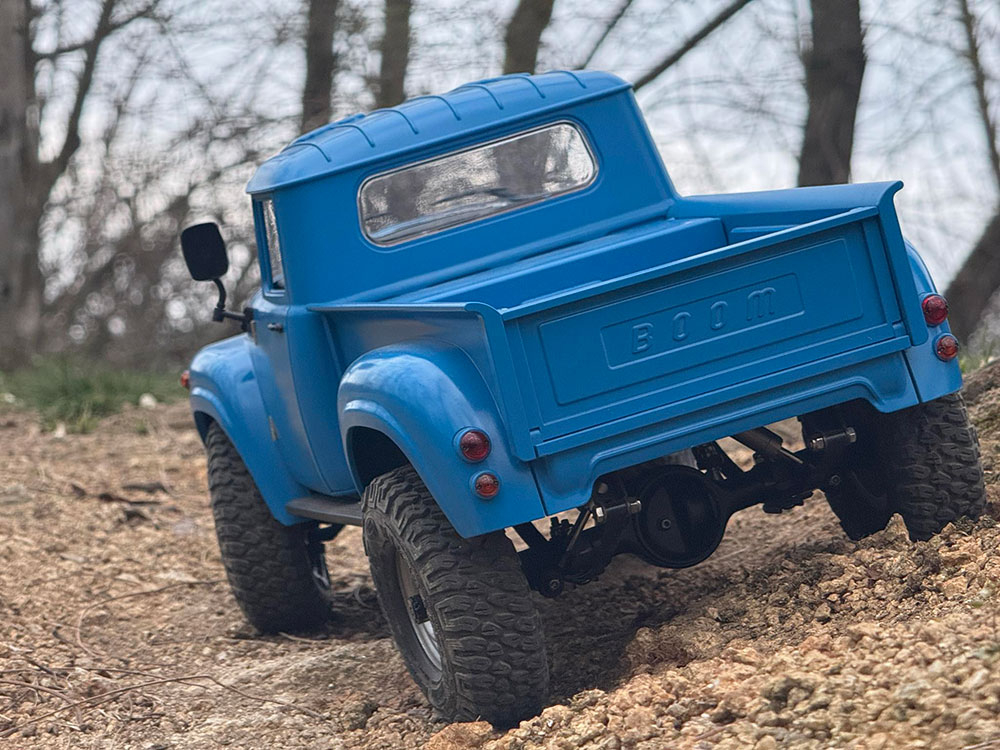

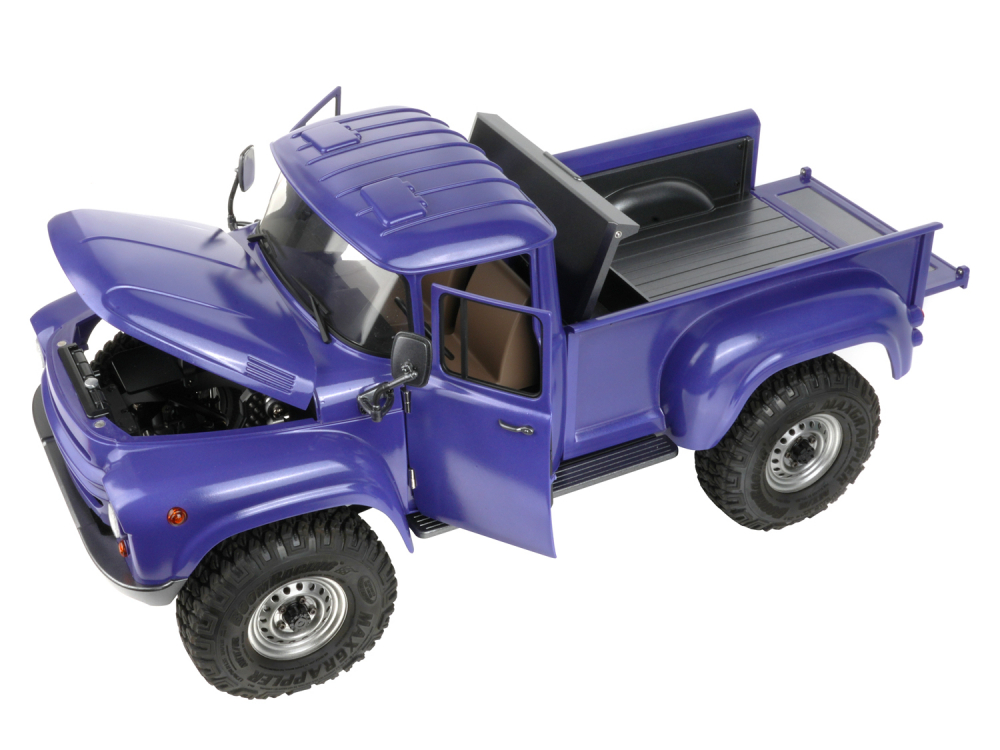

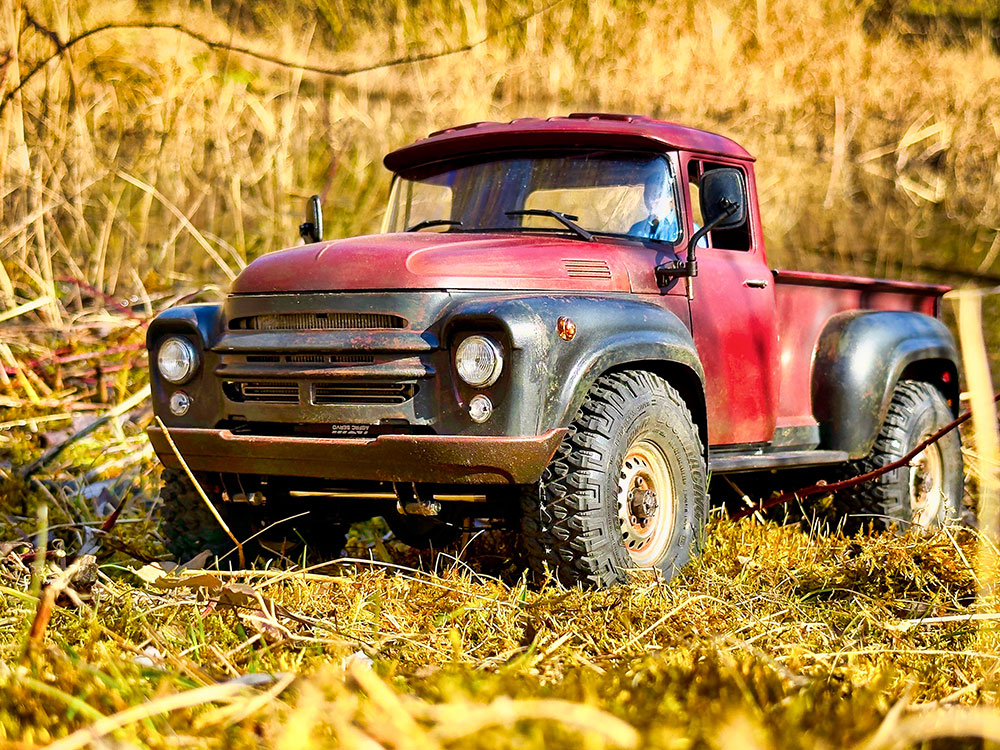

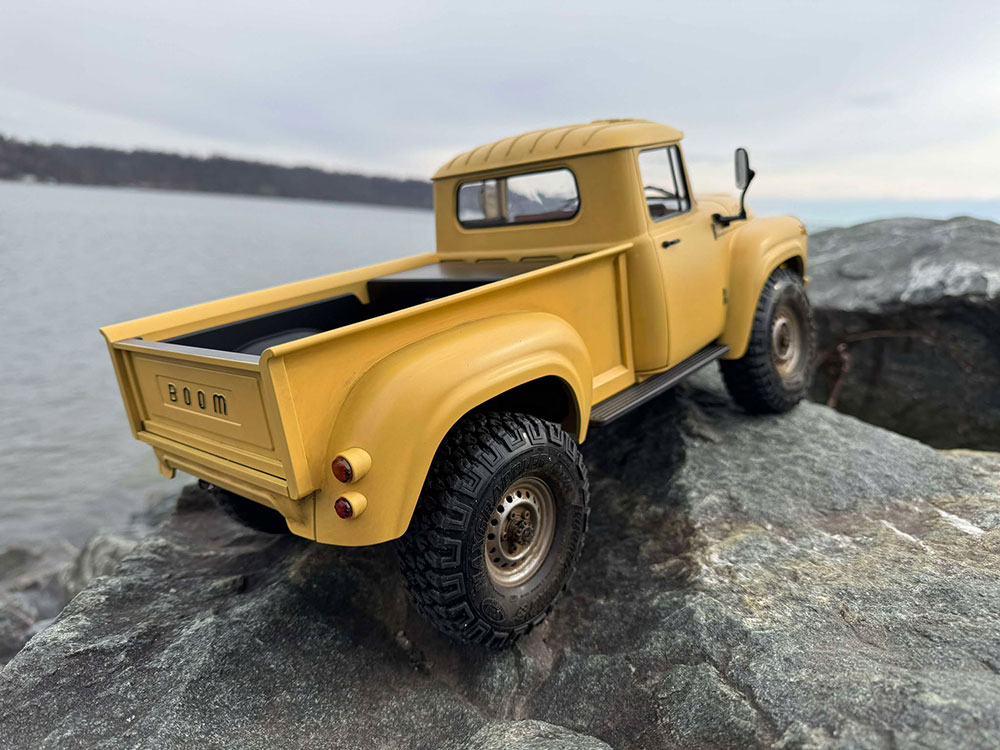

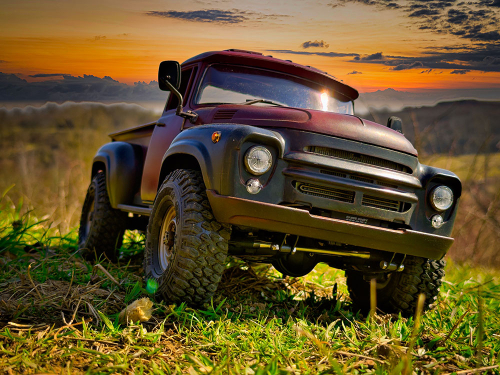

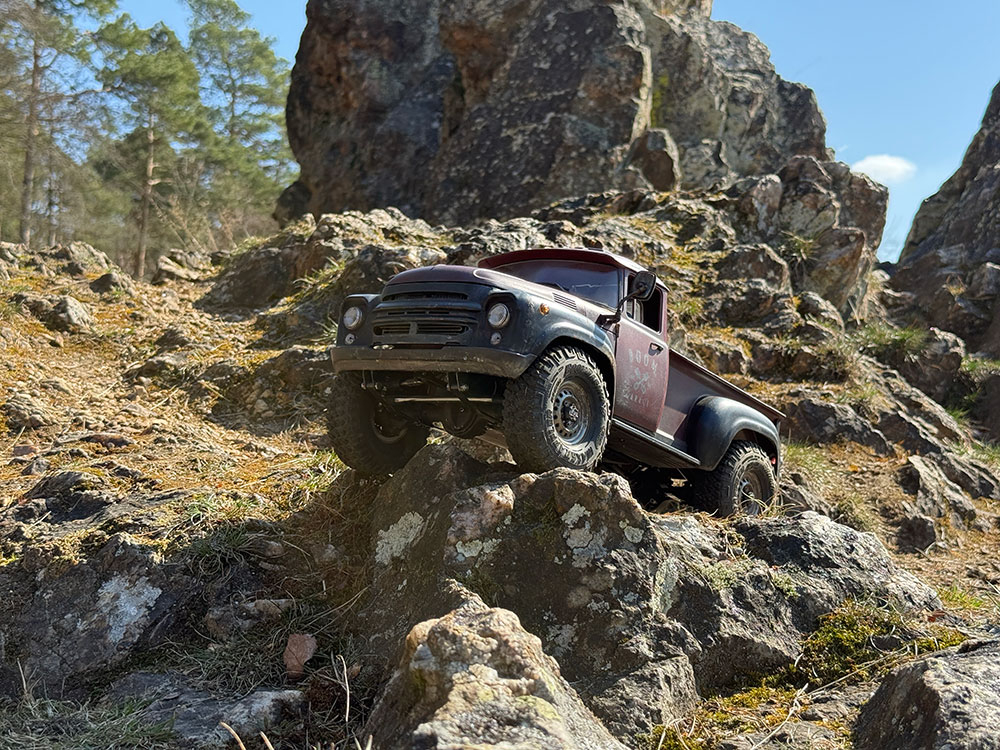

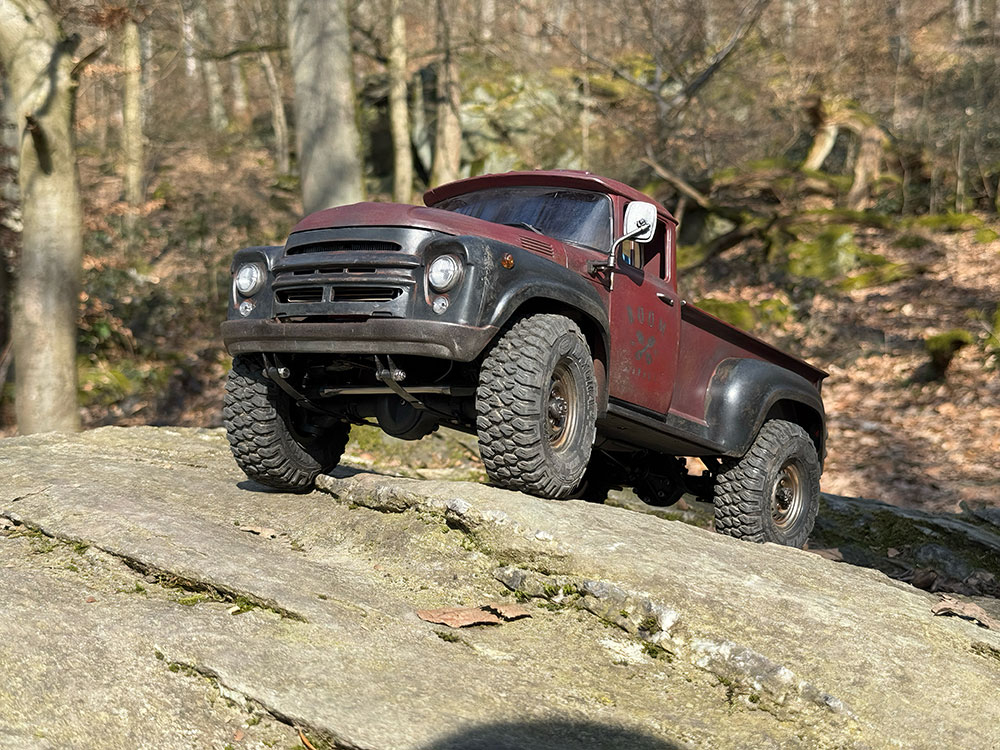

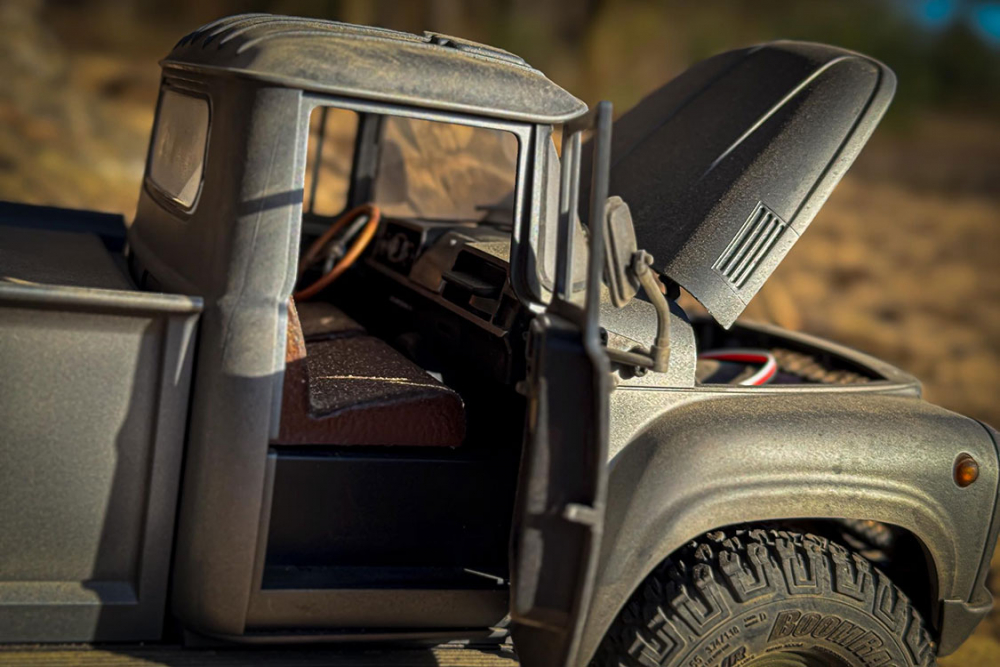

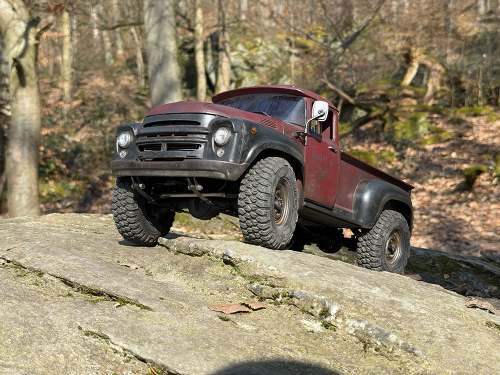

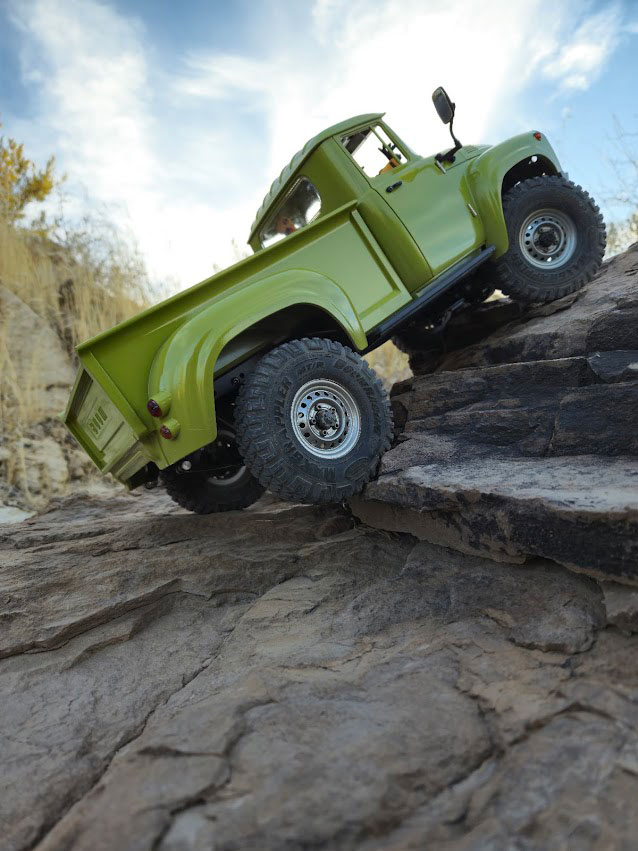

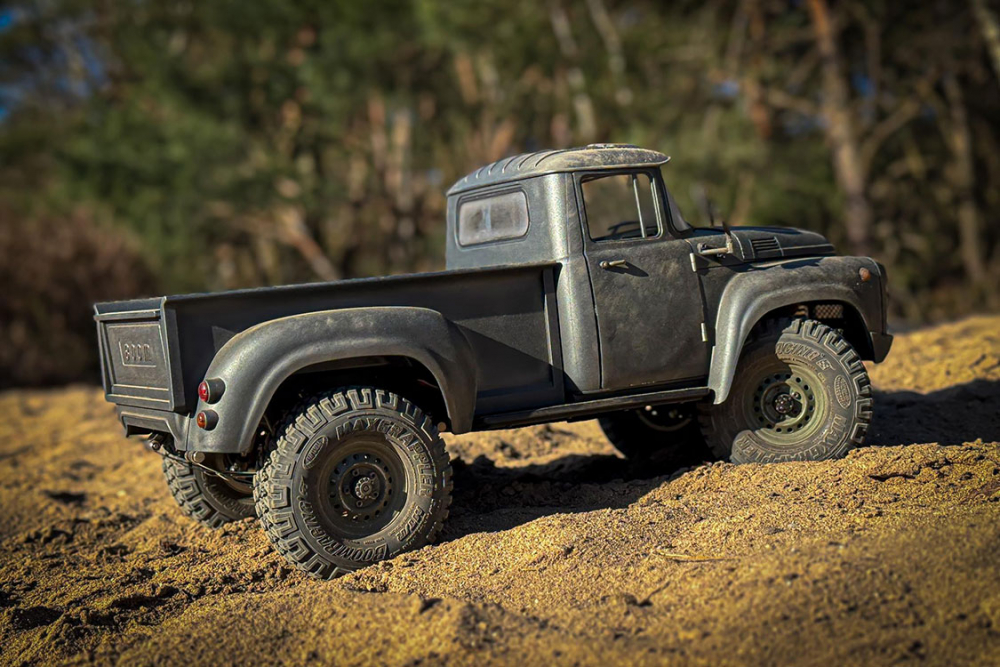

ZIL Pickup Hard Body

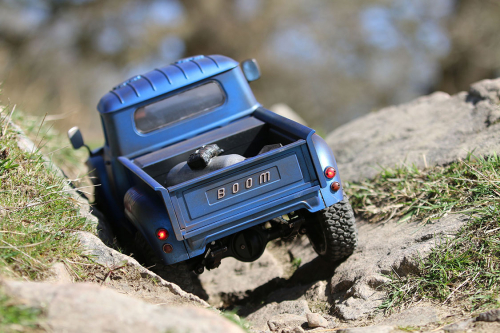

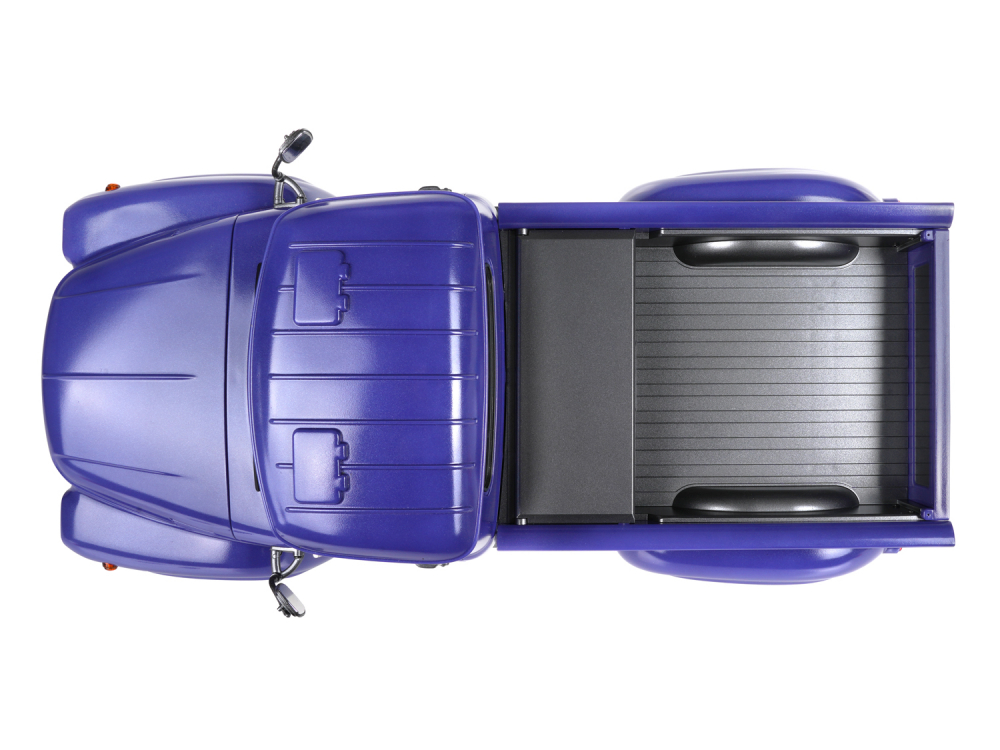

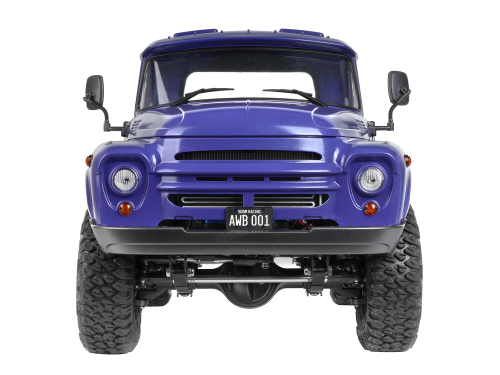

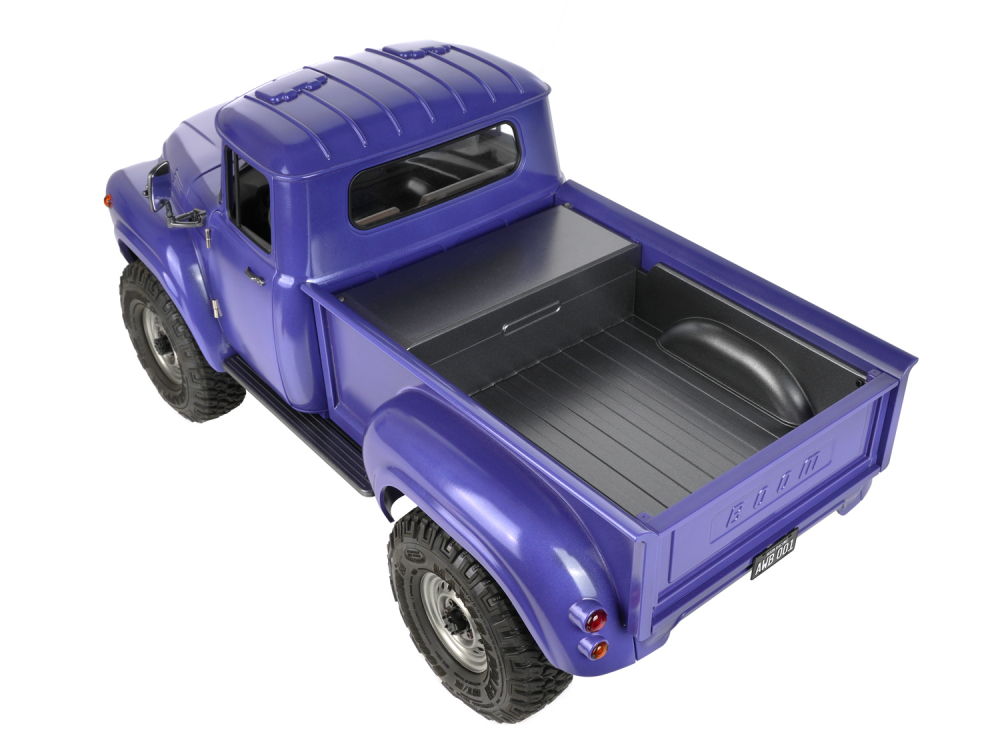

The ZIL Pickup is a fully molded hard body with a 267mm wheelbase. Inspired by classic 1950s–60s pickups, it features a detailed interior, functional doors, hood and tailgate, radiator, scale engine space, and a separate full drop bed with a built-in storage compartment for your RC battery. It has 10 LED light buckets and lenses for the optional KUDU light kit (future release). Side steps are integrated with the chassis.
Unique Customized Vehicle
All BRX01 AWB with ZIL Pickup Hard Body kits have unique license plates. Register your vehicle on BoomRacing.com with your kit's VIN # and vehicle number, download the Scaletra App available on Google Play and App Store to track your vehicle mileage.

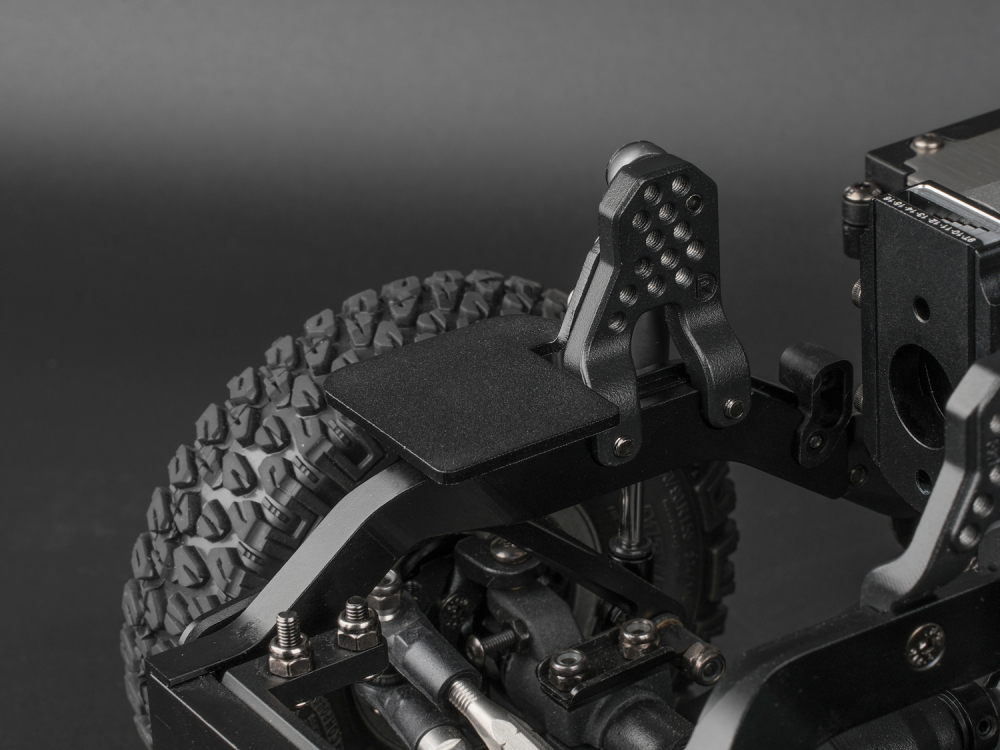

Waterproof

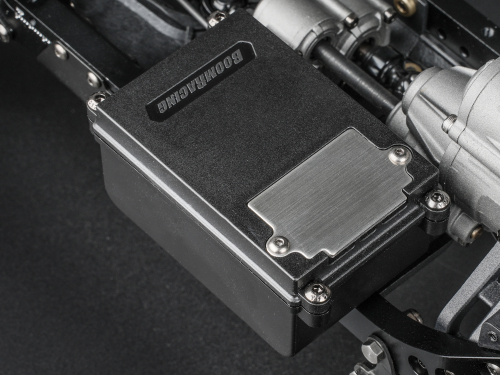

Is this kit waterproof? The short answer is yes! The BRX01 AWB is capable of being submerged in water. The receiver box is designed to be fully waterproof with rubber seals all around to protect your receiver from water. We've included a fully waterproof JX high-voltage mini shift servo for the BCF2™ 2-speed transmission. The axle gears are fully greased, with extra silicone and black graphite grease provided for maintenance and protection against water corrosion. Add your own waterproof electronics to make it fully waterproof.
Chassis Features:
Transmission: BCF2™
Transfer Case: B2X™ (OD Ready)
Axles: BRX80 PHAT™ Axle with new kingpin & brass bushing
