BRX01 AWB Parts & Upgrades Boom Racing Servo Winch Mount Kit for BRX01 AWB & BRX01 for BRX01 AWB

Showing #53 of BRX01 AWB Parts

LOADING IMAGES

Request Additional Photos

PART: #BRLC70227

This item ships Free WORLDWIDE. Details

MUSCLE WINCH OPTION:

OUR INVENTORY:
In Stock and Ready To Ship!

USD $43

Best Price Guarantee

QTY:

Shipping Options

Request a Video Intro

CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

Quantity Discount
Units at this Price	ATees' Low Price (Per Unit)	You Save	Click To Order
2	USD $41.71	USD $2.58	ADD
3	USD $41.28	USD $5.16	ADD
6	USD $40.85	USD $12.90	ADD

PRODUCT RESOURCES

Instruction Manual for Servo Winch Mount Kit for BRX01 AWB & BRX01 16.33 MB

TAGGED CATEGORIES:

Servo Mounts

PRODUCT INFORMATION:

This is a Servo Winch Mount Kit for the BRX01 AWB and BRX01 chassis.

This kit includes a complete setup for running an internal servo winch for the BRX01 AWB and BRX01.

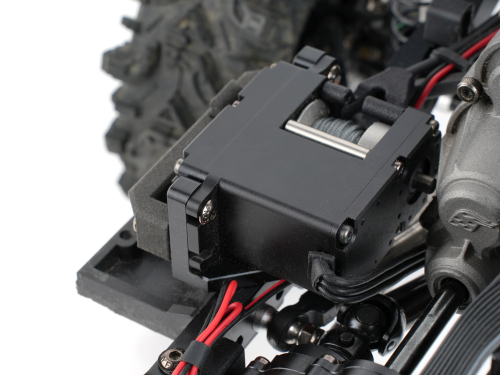

A CNC aluminum winch mount secures a standard servo winch on the BRX01 AWB and BRX01 chassis.

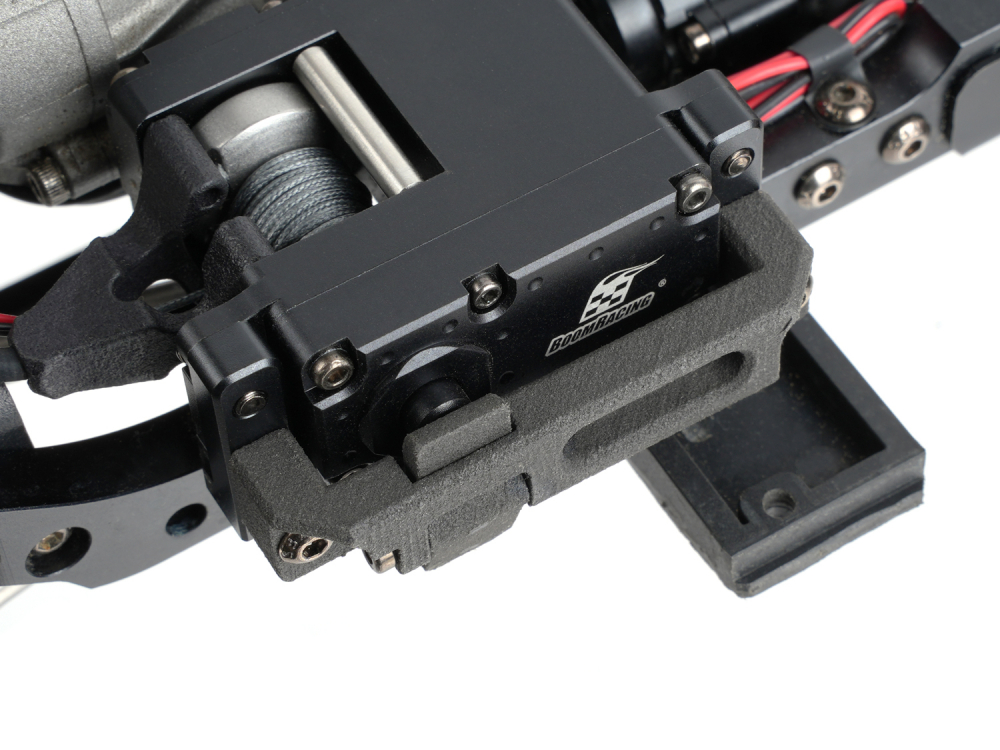

A switch and switch retainer together are explicitly designed for use with the Boom Racing Muscle Winch. The combined unit features an easy-access knob to engage the push-button of the Muscle Winch.

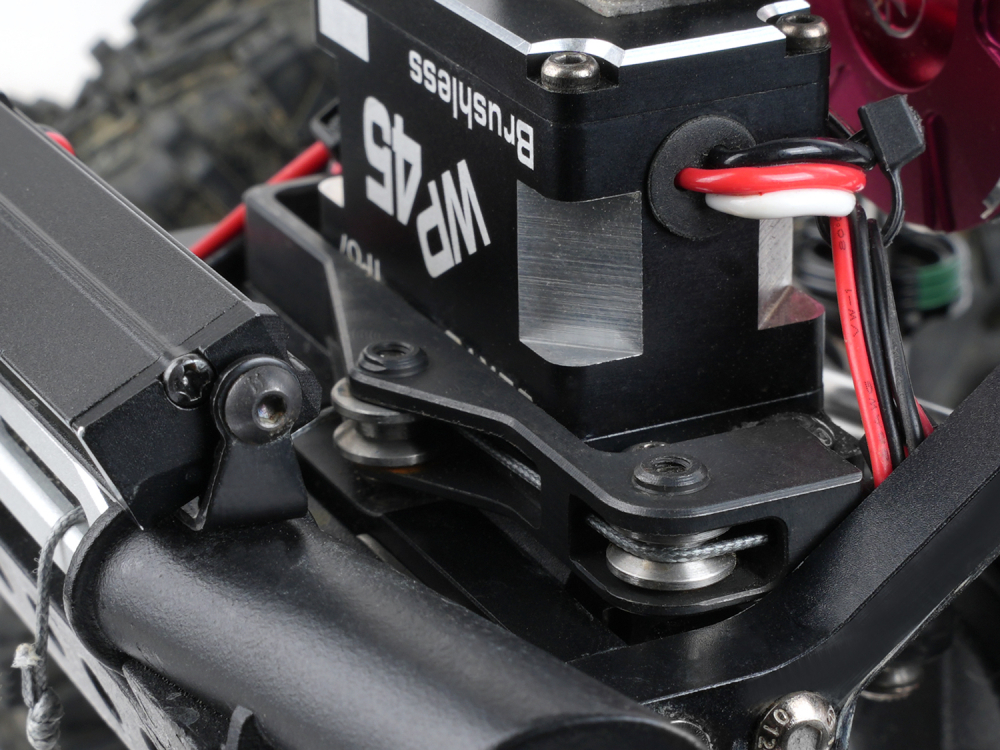

A front-mounted, hardened steel router unit features two pulleys to guide the winch line and facilitate a change in direction. A routing tube and a routing tube retainer are included to guide the winch line from the Muscle Winch to the router unit for smooth operations.

If using with BRX01, an optional LC70 CNC hardbody mount (#BRLC7098) is required to maintain the quick-release feature and to allow the winch line to pass directly through.

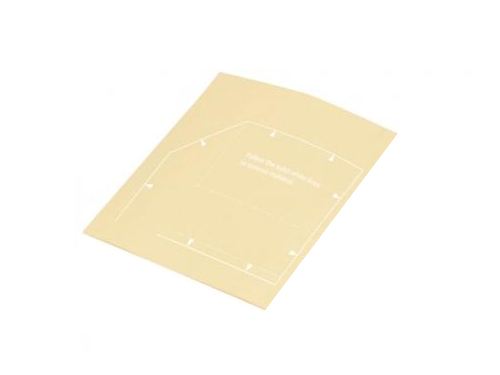

If you have the LC70 interior installed, a cut-out guideline is included. Place the guideline onto the interior (as shown in Step 6 in the manual) and follow the solid white lines to remove the material.

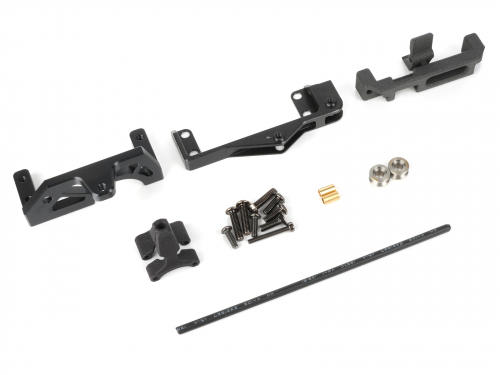

Includes:
- 1x Aluminum Winch Mount
- 1x Switch Retainer
- 1x Switch
- 1x Routing Tube Retainer
- 1x Hardened Steel Router
- 2x Stainless Steel Pulley
- 2x Pivot Tube
- 1x Routing Tube
- 1x M2x16 SC Screw #BRASCH2016
- 2x M2.5x8 RS Screw #BRASCH2508
- 2x M3x8 RS Screw #BRASCH3008
- 4x M3x12 RS Screw #BRASCH3012
- 1x Interior Cut-Out Guideline for BRX01 + Killerbody LC70 interior
Optional Part:
- If using with BRX01, Pass-Thru Aluminum Front Body Mount for LC70 #BRLC7098
Compatibility:
- This Servo Winch Mount Kit is designed for the BRX01 AWB using the Muscle Winch. The servo winch Mount will fit other standard servos. It is intended to be installed on the left-hand side of the BRX01 AWB and BRX01 chassis. The Switch and Switch Retainer are designed explicitly for the Muscle Winch.
Fits:
- BRX01 AWB
- BRX01
Package total weight: 55.00 grams (incl. packaging)
Factory description: Boom Racing BRX01 AWB Servo Winch Mount Kit for BRX01 AWB & BRX01
Manufactured by Boom Racing
Manufacturer number: BRLC70227
This item is eligible for in-store promotions
Nobody beats our price! See our Best Price Guarantee, or your money back!
Questions about this product? Ask Our Technical Support
You may Request Additional Product Information for this product.
Looking for screws / bolts to assemble this product? Email Us

View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it! Report An Error
