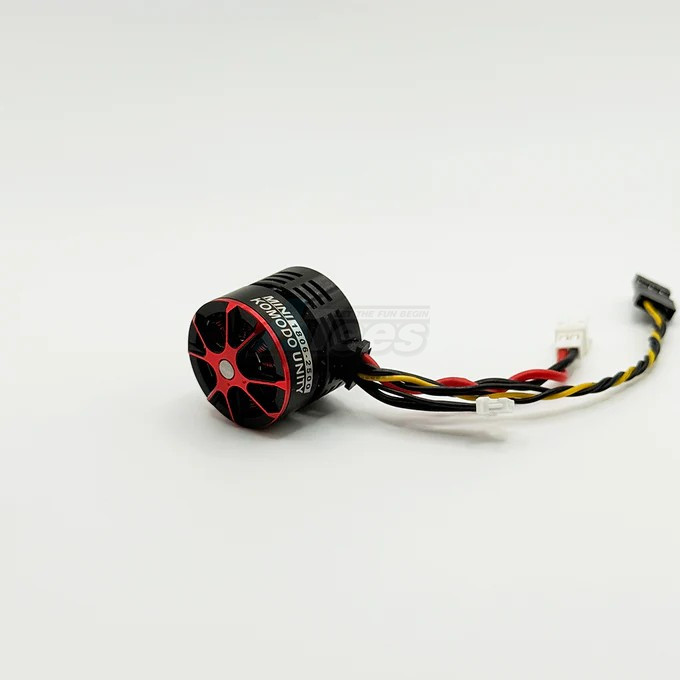

- Furitek is proud to unveil the FURITEK MINI KOMODO UNITY, the world’s first-ever brushless outrunner motor with a fully integrated FOC ESC inside. This groundbreaking 2-in-1 power system is specifically engineered for 1/24 scale RC crawlers such as the SCX24 and AX24. The UNITY sets a new standard in performance, cleanliness, and simplicity - all in an ultra-compact design.
As the pioneers of FOC technology in micro RC crawling, Furitek takes it one step further. By embedding the ESC directly inside the legendary Mini Komodo outrunner motor, the UNITY eliminates external ESC wiring, reduces clutter, and gives you a super clean, ultra-efficient setup that’s lighter, cooler, and easier to install.
What Makes the UNITY System Revolutionary?
- Integrated FOC ESC Inside the Motor
- This is not an external combo - the ESC is seamlessly built into the rear of the motor itself.
- High-Performance Outrunner Motor
- Delivers incredible torque and ultra-smooth throttle response at the lowest speeds.
- Cleanest Wiring Setup Ever
- No more bulky ESC wires - maximum space efficiency and unbeatable cable management.
- True Plug-and-Play
- Drop it straight into your SCX24, AX24, or other 1/24-scale crawler without hassle.
- Wireless Configuration via Furicar App
- Tune live and update firmware on Android/iOS with no external programming module needed.
- Signature Komodo Smoothness - Now with Built-in Intelligence
- Keep the silky smooth control you love, now smarter and more compact than ever.
Key Features:
- Clear and Clean Build
- The integrated ESC-in-motor design enables an exceptionally clean and minimalistic setup. By eliminating external ESC units and messy wiring, this system allows for a clutter-free chassis, improving airflow, reducing weight, and making installation faster and more elegant - ideal for both scale realism and high-performance applications.
- FOC Technology
- Field-Oriented Control (FOC) technology delivers exceptionally smooth throttle response and precise power delivery across all speeds. By intelligently regulating motor currents, FOC enhances driving control, improves efficiency, and reduces heat generation - ultimately extending the performance and lifespan of your RC crawler.
- Integrated 5A BEC
- The built-in BEC delivers a robust 5A output, capable of powering high-torque servos and heavy-duty rigs without requiring an external BEC. With selectable voltage settings of 5.5V and 7.4V, it offers flexibility for a wide range of crawler and scale builds.
- 2S-3S Battery Support
- Designed with flexibility in mind, the system fully supports both 2S and 3S LiPo battery configurations. Whether you’re looking for extended runtime or higher performance, the ESC handles a wide voltage range with stable and reliable output, giving you more options to match your driving style and terrain.

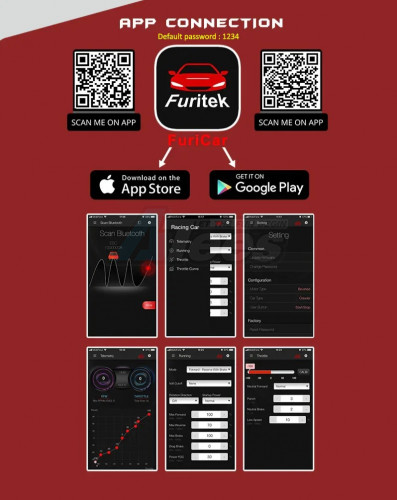

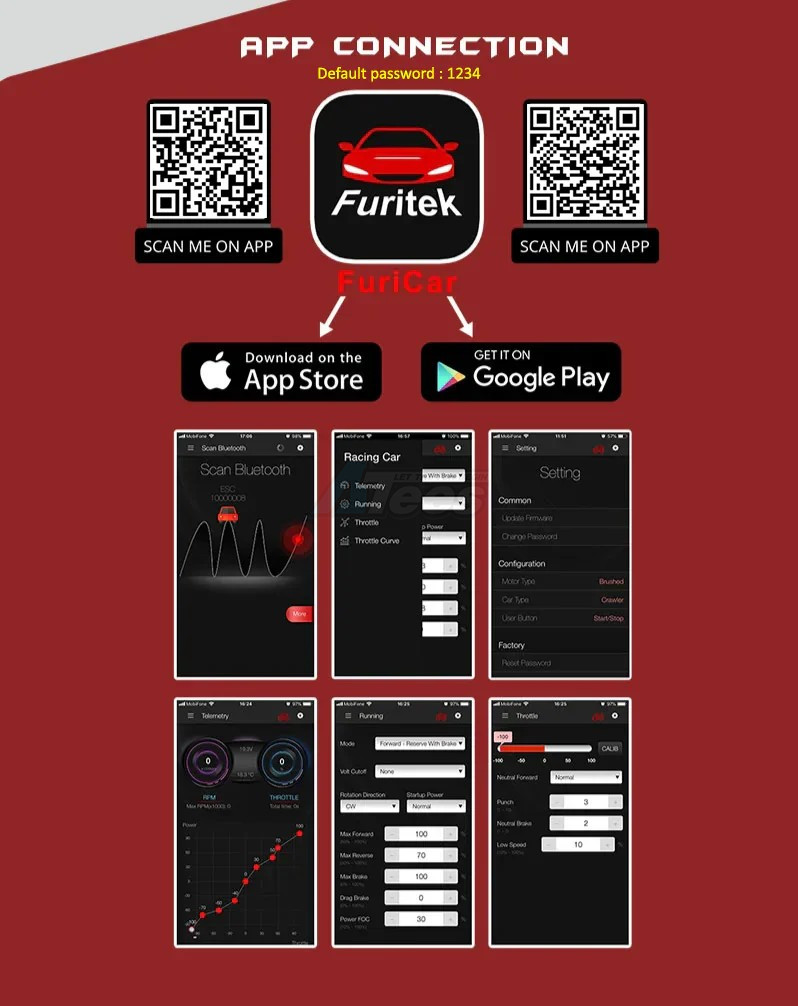

- Mobile App Integration
- The Furicar app - available for both Android and iOS - puts full control in your hands with real-time telemetry, live parameter tuning, and intuitive programming features. Its user-friendly interface allows you to fine-tune your system anywhere, anytime, ensuring peak performance in every terrain and condition.
- Free Lifetime Firmware Updates
- Enjoy lifetime access to free firmware updates, keeping your system up to date with the latest features, optimizations, and performance enhancements. The newest firmware algorithm improves startup smoothness and transitions your crawler into precise FOC control more seamlessly than ever.
- Ultra-Compact Size
- Measuring just Ø23 × 21.3 mm (Ø0.91 x 0.84 inch), it fits tight builds with ease.
- Lightweight Design
- Weighing only 25.1g (0.88 oz), the UNITY keeps your crawler nimble and responsive.
Motor Specifications:
- KV Rating: 2500KV - optimized for torque and smooth throttle response in micro crawler platforms.
- Maximum Power Output: 160W - delivers strong and reliable performance in compact scale builds.
- Battery Compatibility: Supports 2S-3S LiPo for versatile power setups.
ESC Specifications:
- Continuous Current: 30A - stable output for demanding crawls.
- Burst Current: Up to 50A - handles sudden load spikes with ease.
- Battery Support: 2S-3S LiPo - flexible voltage range for performance tuning.
- Built-in BEC: 5A with selectable 5.5V / 7.4V - powers high-torque servos without external units.
- Smart Programming: Fully adjustable via the Furicar mobile app for effortless tuning and updates on the go.

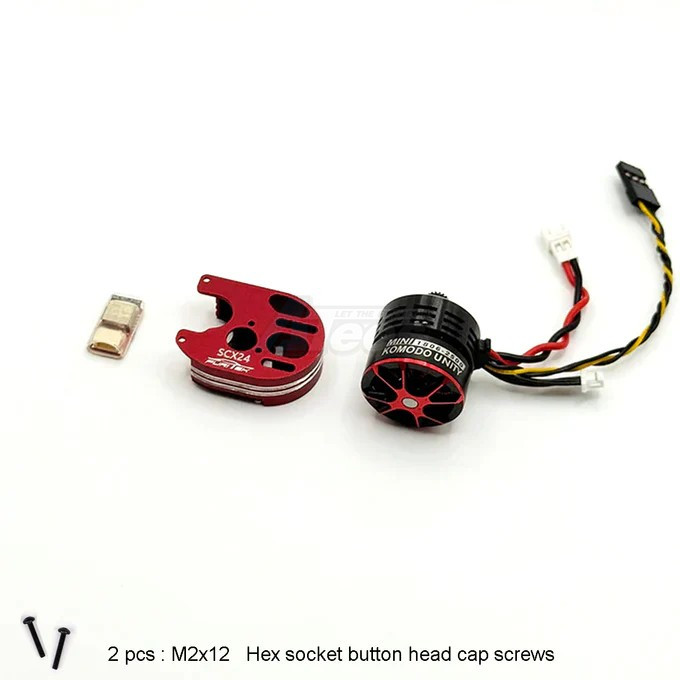

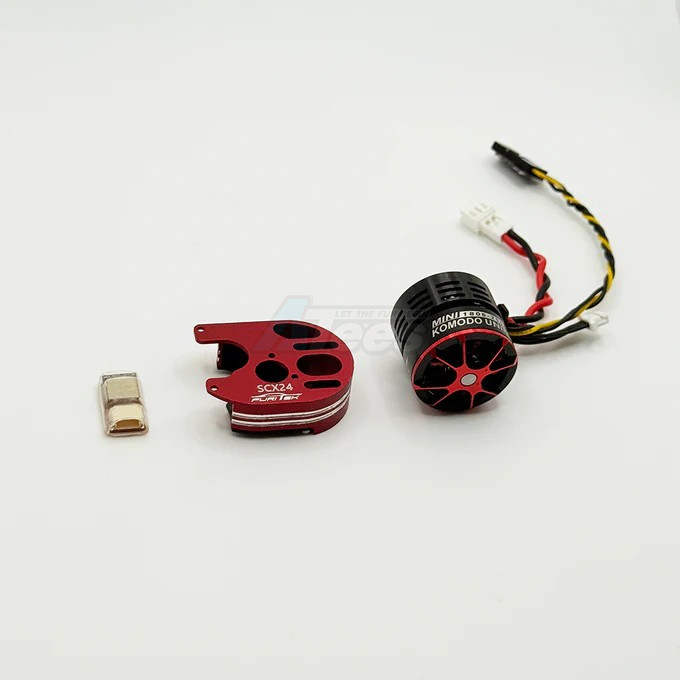

Package Includes:
- 1x Furitek MINI KOMODO UNITY 2-in-1 ESC/MOTOR with 16T pinion 0.3M
- 1x Furitek CNC aluminum motor mount
- 1x Furitek wireless module
- 1x User Manual
- Integrated FOC ESC Inside the Motor
- Package total weight: 65.00 grams (incl. packaging)
- Package size: 7.00 x 10.00 x 5.00cm
- Factory description: Furitek Axial SCX24 Mini Komodo Unity 2-in-1 Esc/motor Micro Foc Brushless System For SCX24
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2694
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
