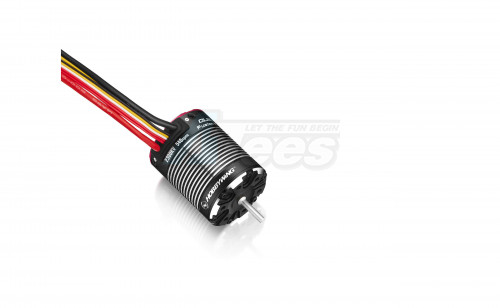

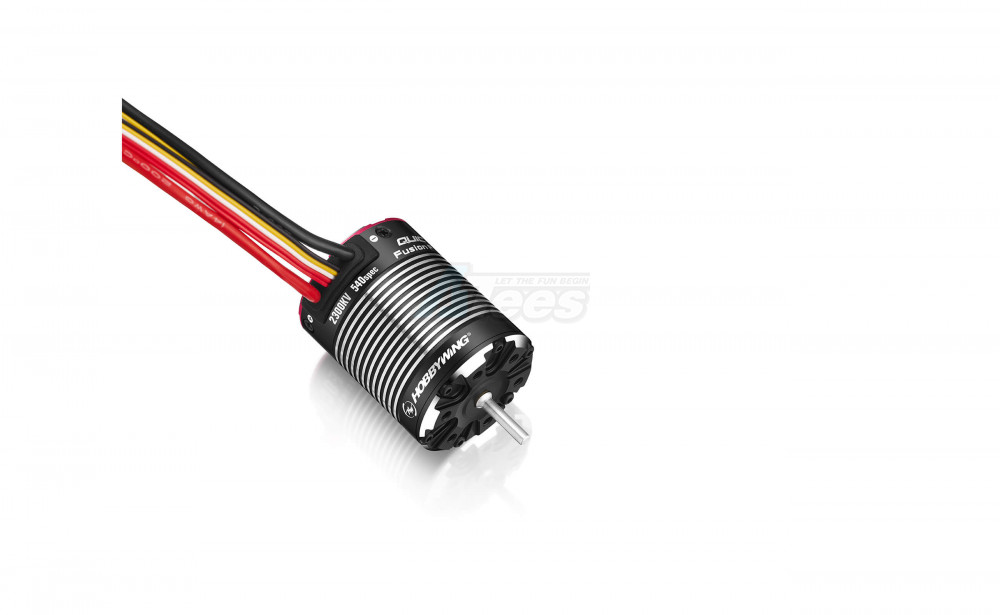

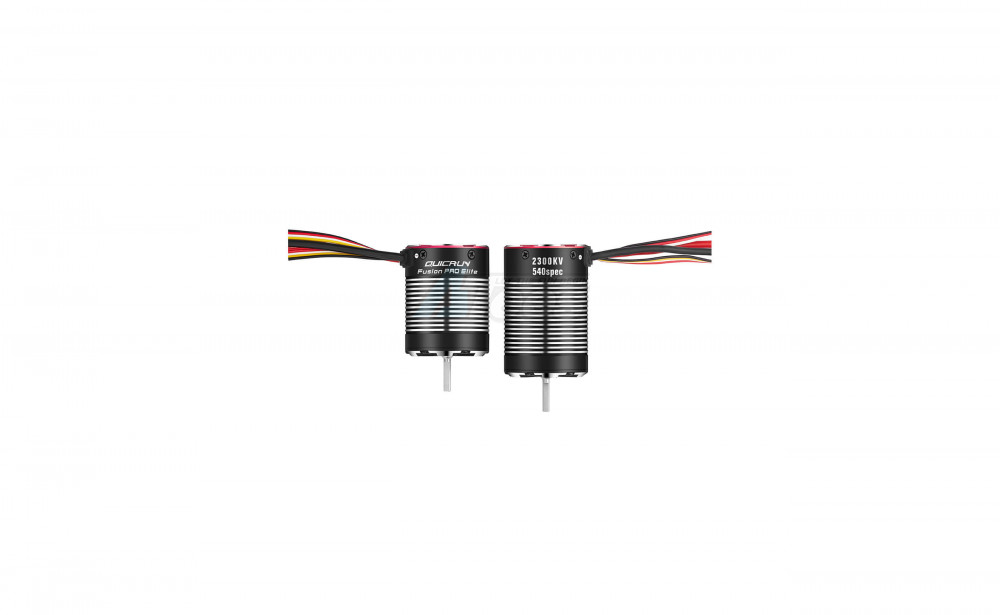

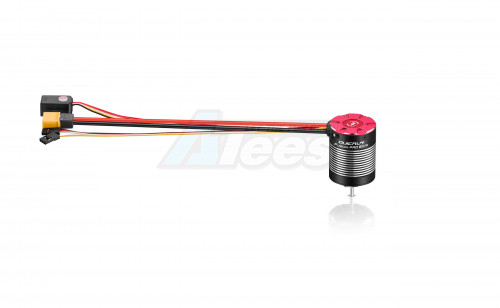

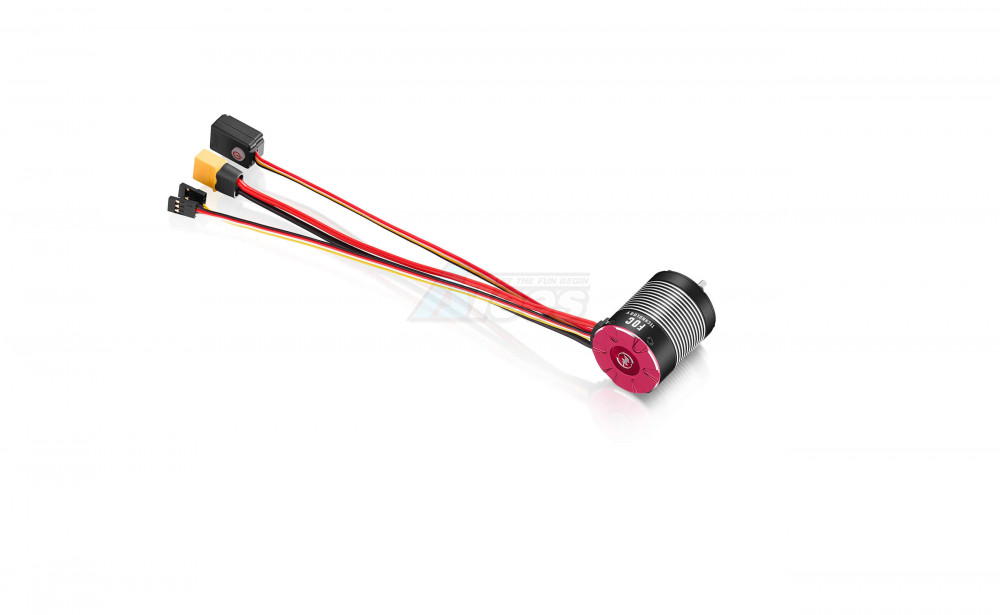

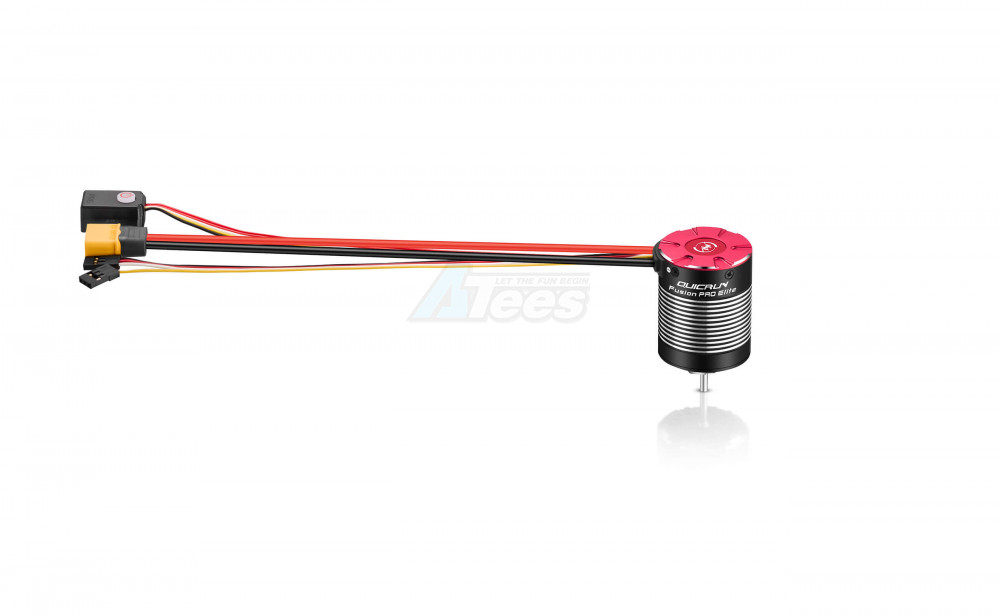

QuicRun Fusion Pro Elite Integrated Crawler Power System
Features:
Compact yet Powerful
Fits nearly all 1/10th scale vehicles on the market. This ultra-compact 2-in-1 motor and ESC allow for a super clean installation and wiring.
Featuring an ultra-short integrated design with a length of just 48.5mm, the motor is 9.5mm shorter than the Pro Standard version. It's 1.3mm shorter than the AXE 540.
Supports 2-4S Lipo, Ideal Choice for 1/10th Climbing Vehicles
The ESC supports 2-4S LiPo batteries
Maximum continuous output current of 50A
Combined with its compact designs, it meets the demands of most 1/10th scale crawler applications, providing stable, consistent power without performance drop-offs.
AUX External Control, Channel for Real-time Parameter Adjustment
By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters (like drag brake force) in on the fly from your radio. On-trial tuning has never been this easy.
FOC Drive, Quiet, Powerful Torque with Excellent Linearity
The power system uses FOC (Field-oriented control) drive, delivering significantly stronger low-speed torque and smoother performance than conventional sensored systems.
It eliminates motor noise for near-silent operation, allowing you to fully enjoy the experience.
Closed loop, Intelligent Torque Control for Precise Throttle Matching and Amazing Control
The ESC features an intelligent torque output and speed closed-loop control system that automatically adapts to changing terrain conditions.
The ESC increases output torque to overcome obstacles when encountering resistance.
On descents, it reduces torque output and stabilizes vehicle speed, making driving remarkably simple.
IP67 All-terrain Protection
The entire power system is rated IP67, delivering outstanding waterproof and
dustproof performance. Whether in rain, snow, mud, sand, or standing water, it handles harsh environments with confidence.
Built-in 10A High-performance BEC
Built-in BEC capable of delivering up to 10A of output current
Supports selectable voltages of 6V/7.4V/8.4V
It effortlessly powers standard and high-voltage servos, as well as accessories like lighting systems and winches.
Five Selectable Operating Modes
ESC offers versatile control with five operating modes; this flexibility easily adapts to a wide range of applications.
Constant Speed Mode (Direct Forward/Reverse)
Normal Mode (Forward/Reverse with Brake)
Normal Mode (Direct Forward/Reverse without Constant Speed)
Hybrid-RPM Matching Mode
Hybrid-Normal Mode
Compatible with both LED and LCD Pro Program
The ESC supports not only the simple LED Program Box but also the more advanced LCD Pro Program box, which offers a complete range of settings and professional-level adjustments.
Extensive Parameter Options
The ESC offers 14 adjustable parameters to meet a wide variety of setup application requirements.
Specification:
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
/Peak Current: 50A/150A
Input Voltage: 2-4S LiPo,6-12 Cells NiMH
BEC Output: 6V/7.4V/8.4 adjustable,continuous current 5A (Switch mode)
QuicRun Fusion Pro Elite Integrated Crawler Power System
Features:
Compact yet Powerful
Fits nearly all 1/10th scale vehicles on the market. This ultra-compact 2-in-1 motor and ESC allow for a super clean installation and wiring.
Featuring an ultra-short integrated design with a length of just 48.5mm, the motor is 9.5mm shorter than the Pro Standard version. It's 1.3mm shorter than the AXE 540.
Supports 2-4S Lipo, Ideal Choice for 1/10th Climbing Vehicles
The ESC supports 2-4S LiPo batteries
Maximum continuous output current of 50A
Combined with its compact designs, it meets the demands of most 1/10th scale crawler applications, providing stable, consistent power without performance drop-offs.
AUX External Control, Channel for Real-time Parameter Adjustment
By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters (like drag brake force) in on the fly from your radio. On-trial tuning has never been this easy.
FOC Drive, Quiet, Powerful Torque with Excellent Linearity
The power system uses FOC (Field-oriented control) drive, delivering significantly stronger low-speed torque and smoother performance than conventional sensored systems.
It eliminates motor noise for near-silent operation, allowing you to fully enjoy the experience.
Closed loop, Intelligent Torque Control for Precise Throttle Matching and Amazing Control
The ESC features an intelligent torque output and speed closed-loop control system that automatically adapts to changing terrain conditions.
The ESC increases output torque to overcome obstacles when encountering resistance.
On descents, it reduces torque output and stabilizes vehicle speed, making driving remarkably simple.
IP67 All-terrain Protection
The entire power system is rated IP67, delivering outstanding waterproof and
dustproof performance. Whether in rain, snow, mud, sand, or standing water, it handles harsh environments with confidence.
Built-in 10A High-performance BEC
Built-in BEC capable of delivering up to 10A of output current
Supports selectable voltages of 6V/7.4V/8.4V
It effortlessly powers standard and high-voltage servos, as well as accessories like lighting systems and winches.
Five Selectable Operating Modes
ESC offers versatile control with five operating modes; this flexibility easily adapts to a wide range of applications.
Constant Speed Mode (Direct Forward/Reverse)
Normal Mode (Forward/Reverse with Brake)
Normal Mode (Direct Forward/Reverse without Constant Speed)
Hybrid-RPM Matching Mode
Hybrid-Normal Mode
Compatible with both LED and LCD Pro Program
The ESC supports not only the simple LED Program Box but also the more advanced LCD Pro Program box, which offers a complete range of settings and professional-level adjustments.
Extensive Parameter Options
The ESC offers 14 adjustable parameters to meet a wide variety of setup application requirements.
Specification:
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
/Peak Current: 50A/150A
Input Voltage: 2-4S LiPo,6-12 Cells NiMH
BEC Output: 6V/7.4V/8.4 adjustable,continuous current 5A (Switch mode)
