1/14 AROCS 4151 8X4 Parts & Upgrades

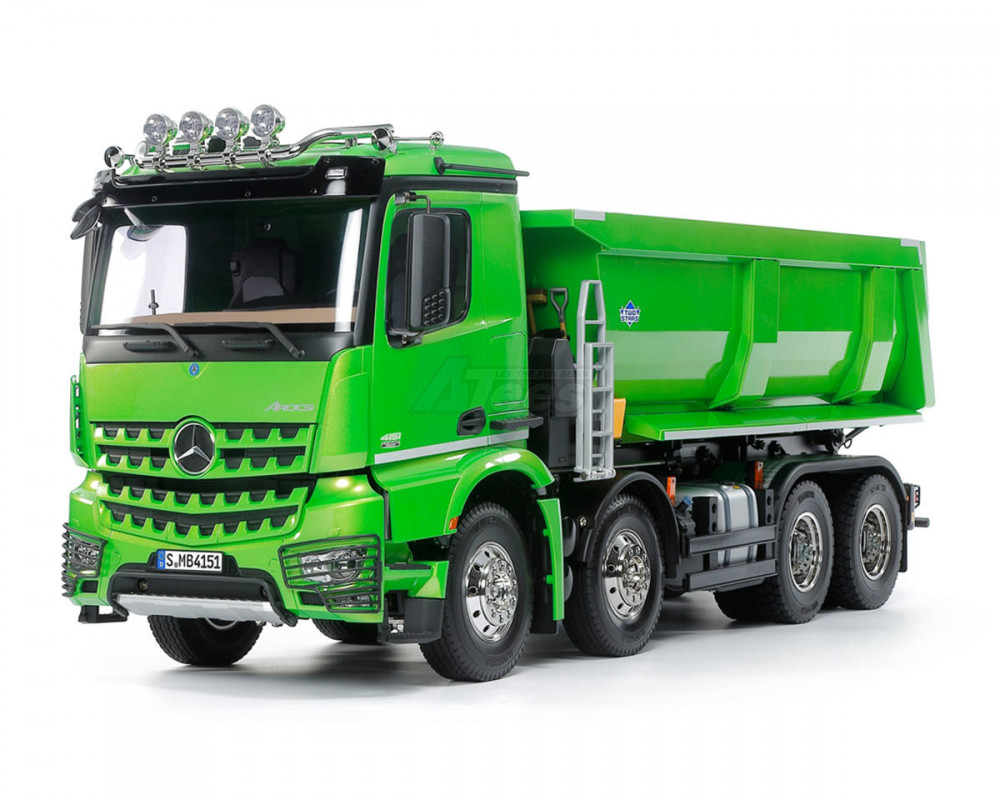

 Tamiya 1/14 R/C Mercedes-Benz Arocs 4151 8x4 Tipper Truck Kit (Candy Green Edition) for 1/14 AROCS 4151 8X4

 1/14 AROCS 4151 8X4
Next
Showing #1 of 1/14 AROCS 4151 8X4 Parts

First In Quality Around the World
PART: #TAMIYA/47523
**Discount shipping applies to this item.
Warehouse Availability:

HK: In stock (ships worldwide)

USD $602.99
SALE!
USD $599.99
Best Price Guarantee

Add To Cart
Shipping Options

CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

TAGGED CATEGORIES:
PRODUCT INFORMATION:
  • The Arocs series is a line of heavy-duty models introduced in 2013 by the world’s leading truck manufacturer, Daimler Truck AG (Germany). This R/C model assembly kit recreates the Arocs 4151 8x4 dump truck (gross vehicle weight: 41t), which runs on a 12.8-liter turbocharged inline-6 engine capable of 510hp. It features a highly detailed body and cab pre-painted in Candy Lime Green for your convenience and given a lustrous urethane topcoat. Air tanks and other parts are pre-painted in semi-gloss black. The distinctive bucket tooth front grille is a separate part. The roof has a front bar with light pods, and the inside of the cab is also depicted. Behind the cab, the realistic one-piece plastic bed is reinforced with a metal frame, while the ladder frame chassis features aluminum side channels with resin cross members. The two front axles are steered via a single servo, and power from the front-mounted 35T motor is delivered to the rear axles via the propeller shaft, with a built-in differential gear on each rear axle for smooth cornering. It's highly realistic suspension utilizes metal leaf springs and friction dampers. Tandem die-cast front axles have individual leaf springs, and reinforced resin rear axles are a trunnion design. The assembly type 3-speed transmission allows gear changes via a separately available 4-channel transmitter.

    Specifications:
    • Length: 667mm, Width: 196mm, Height: 268mm, Weight (without optional parts): Approx. 5.1kg
    • Wheelbase: 133mm + 215mm + 103mm
    • Tread: 156mm (front), 138mm (rear, double tire)
    • Chassis: aluminum & polycarbonate resin ladder frame
    • Front/rear leaf spring rigid suspension
    • Caster angle (front/rear): 0°/0°
    • Camber angle (front/rear): 0°
    • Toe angle: 0°(front & rear)
    • Aluminum dummy dampers (front & rear)
    • Dual rear axle drive
    • 3-gear transmission (gear shifting operated via transmitter)
    • Gear ratio: (1st) 32.49:1, (2nd) 17.76:1, (3rd) 10.66:1
    • 3-bevel differential gears
    • TR Mighty Tuned Motor (35T)
    • Tire width/diameter: 22mm/83mm (front); 22mm/84mm (rear)

    Separately Required Items:
    • R/C system w/ESC (MFC-03 or TBLE-02S recommended)
    • R6/AA/UM3 batteries for transmitter
    • Battery pack & charger
  • Package total weight: 8910.00 grams (incl. packaging)
  • Package size: 45.00 x 72.00 x 20.00cm
  • Factory description: Tamiya 1/14 AROCS 4151 8X4 1/14 R/C Mercedes-Benz Arocs 4151 8x4 Tipper Truck Kit (Candy Green Edition)
  • Manufactured by Tamiya
  • Manufacturer number: TAMIYA/47523
  • This item is not eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
