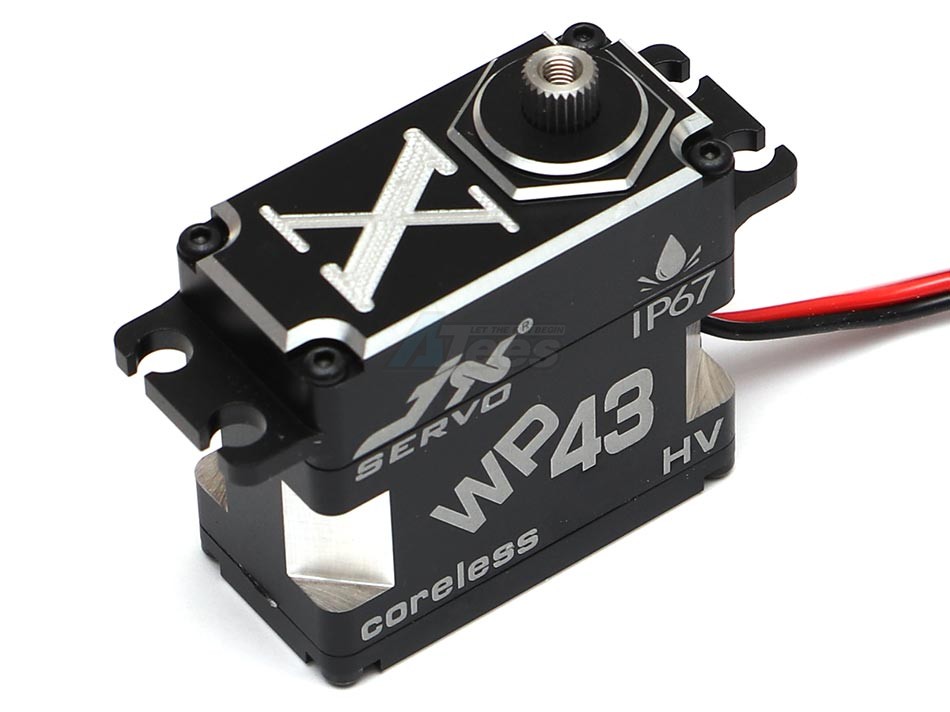

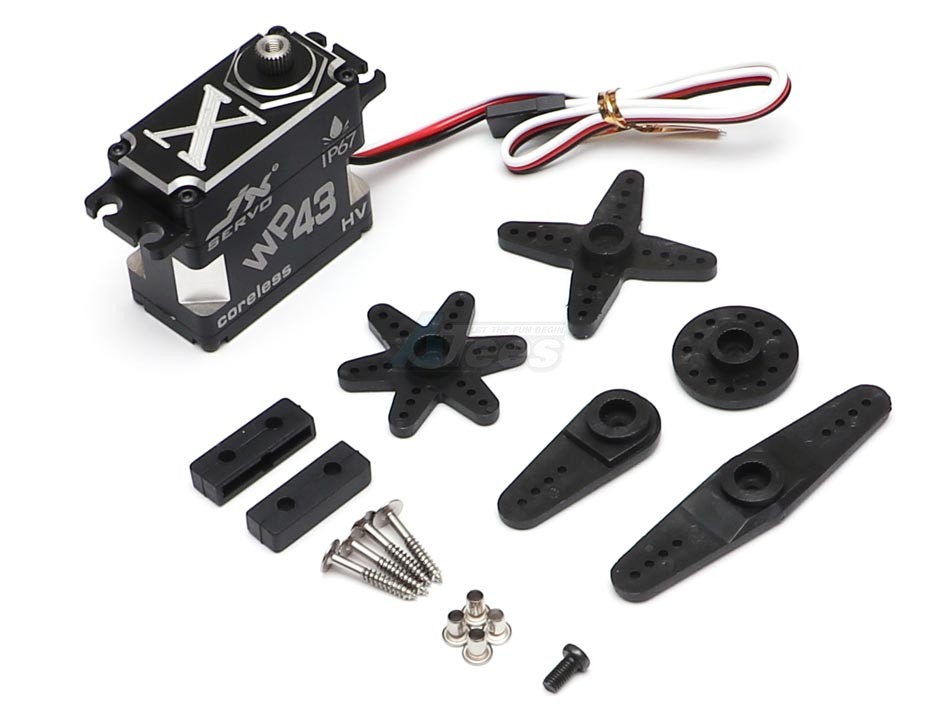

- The JX/WP43 is JX Servo's new flagship coreless high torque servo. It features an all aluminum case, full metal gears and is fully waterproof.
Specification:- Working voltage: 0V ~ 8.4V
- Working temperature: -20C°~ +60C°
- Torque (6.0V/8.4V): 35kg.cm/43kg.cm
- Idle speed (6.0V/8.4V): 0.13/0.11Sec/60°
- Idle current (6.0V/8.4V): 300mA/560mA
- Load current (6.0V/8.4V): 430mA/810mA
- Dead band: 2usec
- Lifetime: >60000 times without load
- Moving angle: 60°±10°
- Drive type: MOS drive
- Motor type: Coreless Motor
- Potentiometer type: Direct drive
- Signal booster type: Digital

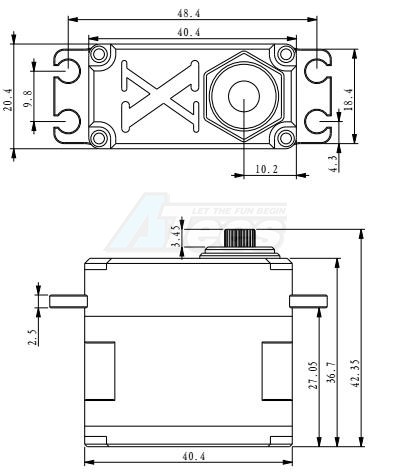

- Size: 40.4 x 20.4 x 36.7mm
- Weight: 75g
- Ball Bearing: 2BB

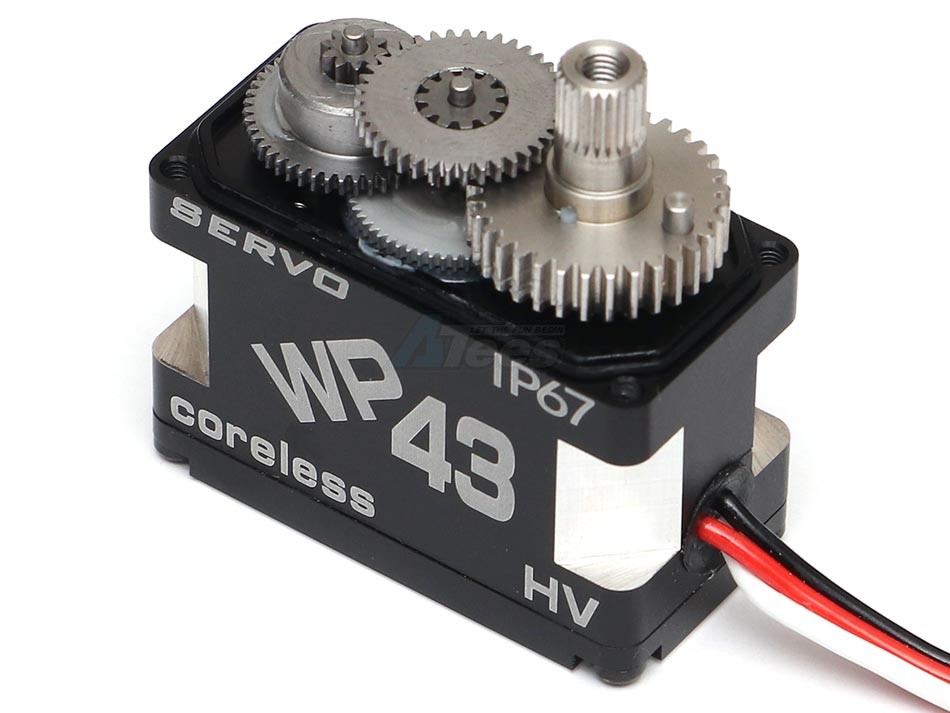

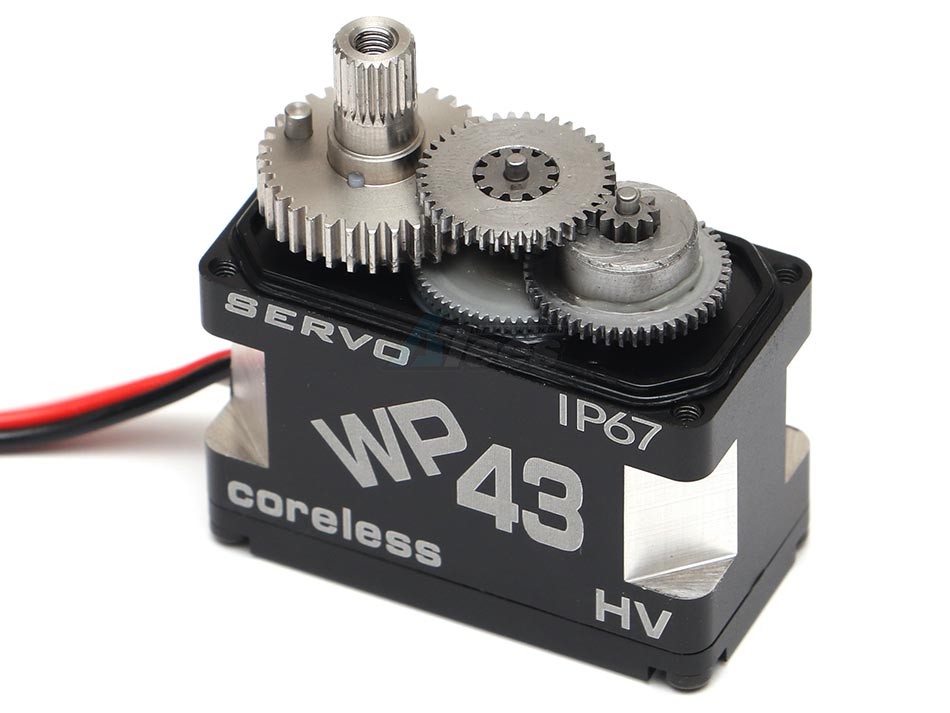

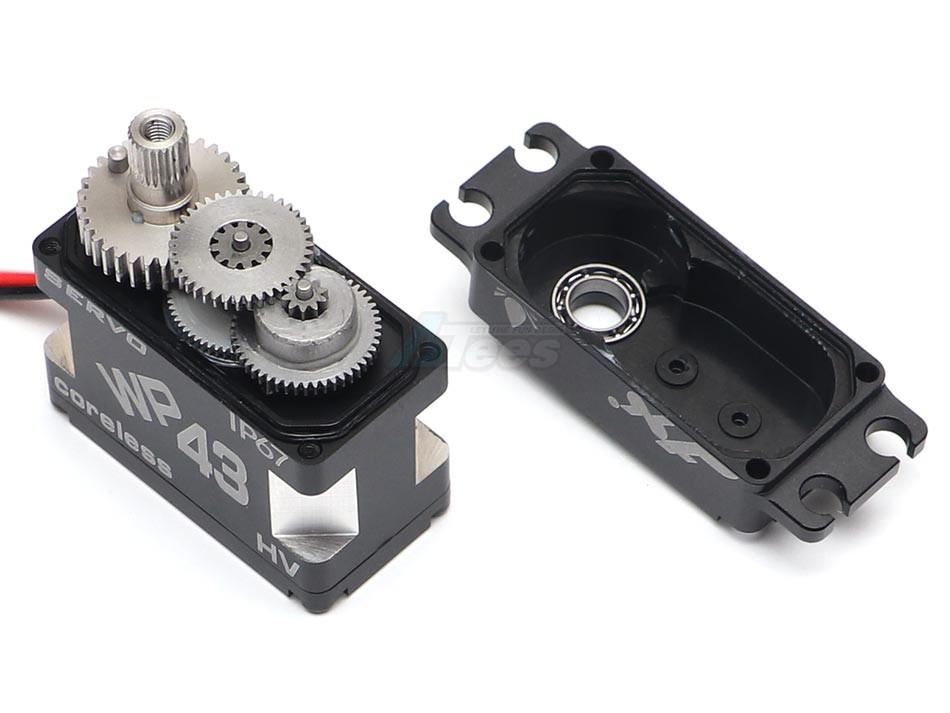

- Gear material: Full Metal
- Case material: Aluminum case
- Wire length: 260mm
- Wire gauge No and plug type: 26AWG, JR plug
- Black wire: Negative
- Red wire: Positive
- White wire: Singal
- IP67 Waterproof
Replacements:
Complete Rebuild Steel Gears for JX/WP-45 & JX/WP-43 Servo JX/WP4345-SG - Color: Black
- Package total weight: 118.00 grams (incl. packaging)
- Factory description: JX Servo 43KG Waterproof Aluminum Case Coreless Metal Gear Digital Servo 0.11S 43kg @8.4V
- Manufactured by JX Servo
- Manufacturer number: JX/WP43
- This item is not eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
Find something wrong in this description?
Help us fix it! Report An Error
43KG Waterproof Aluminum Case Coreless Metal Gear Digital Servo 0.11S 43kg @8.4V by JX Servo
