• Size: 1.9"
• Width: Standard
• Barrel Color: Chrome
• Barrel Material: Aluminum
• Center Ring Material: Aluminum

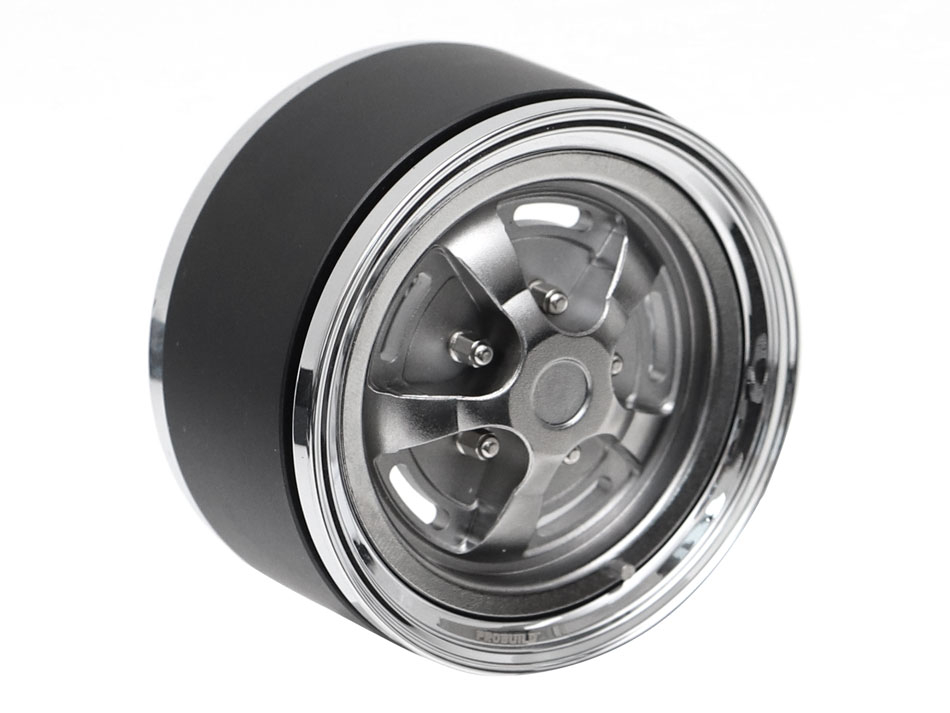

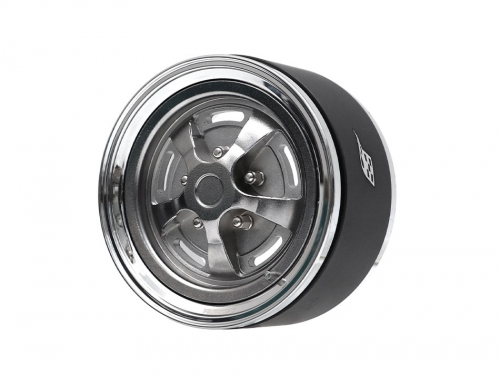

• Faceplate Style: Rostyle Classic #BRPBF019
• Faceplate Color: Chrome
• Faceplate Material: Aluminum
• Outer Hardware: Cap Head 12.9
• Bolt Pattern: 5-Lug
• Center Cap: None
• Hub Size: XT504 (4mm Offset)
• Hub Hardware: Mag Seat 12.9 Silver
• Lock Ring: None

Build your wheels exactly the way you want with Boom Racing's all-new ProBuild Wheels.

The idea behind PROBUILD was to find a way to make a fully customizable and adjustable wheel with multiple setup options. Today, that sounds really smart, but back when we started most people thought we were crazy. That’s alright, everything has its time!

Quality off-road wheels are not always affordable. Most of us save our money to get a nice set. Deciding on the right set of wheels can end up being a scary and expensive learning lesson. Our proprietary customizable design completely removes any fear of getting another set of wheels that are “almost right”. We took into consideration all of the desirable wheel features - style, color, offset, material, total width, weight, hub size, hardware styling, etc., and provide the options to adjust the wheel to the way you like.

What makes PROBUILD probuild?

• High changeability, unlimited possibilities
• Built-in offset options
• Revolutionary and cutting-edge designs
• Engineered to the exact specifications of world-class drivers

With unlimited combinations of colors, faceplates, multiple offset options, etc, ProBuild wheels is a game-changing design for how we build and match custom rigs. No longer are we stuck with a full set of wheels that remain the same for too long.

Specification:

• Diameter: 1.9"
• Width: 29.4mm (1.157")
• Inner Wheel Clearance: 45mm (1.771")
• Weight:
  • Alum Center Ring: 18g
  • Barrels: 30g (front & rear)
  • 68g per wheel (fully assembled)
  • 59g per wheel (without hub and hardware)

Note: Rostyle Classic faceplate is non-reversible

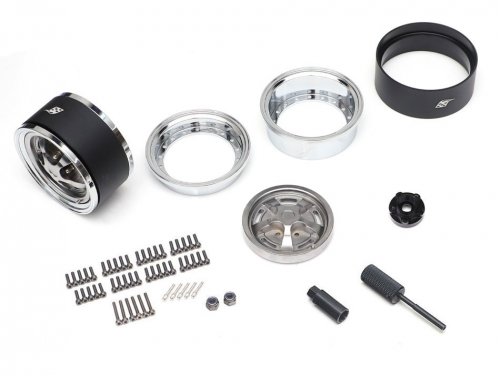

What's Included?

• 2x Alum 7.5mm Barrel
• 2x Alum 15mm Barrel
• 2x Alum 22.5mm Beadlock Center Ring
• 2x Aluminum Faceplate
• 2x XT504 Wheel Hub Adapter #BRXT504V2
• 22x Mag Seat Lug Nut M2x9m Scale Screws #BRPROB-11S
• 6x M2x14 12.9 Grade Socket Cap Pilot Screw
• 2x M4 Nylon nut

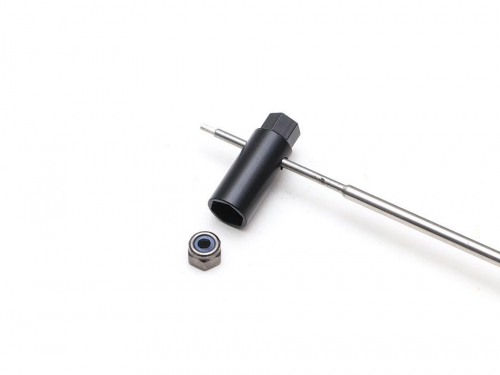

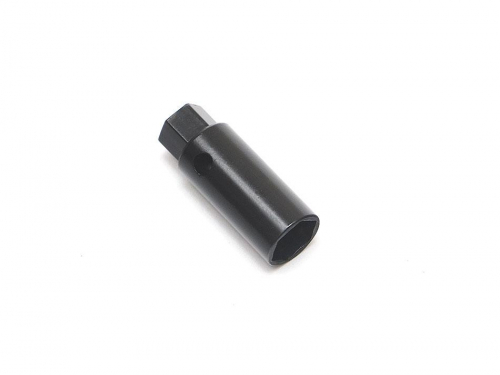

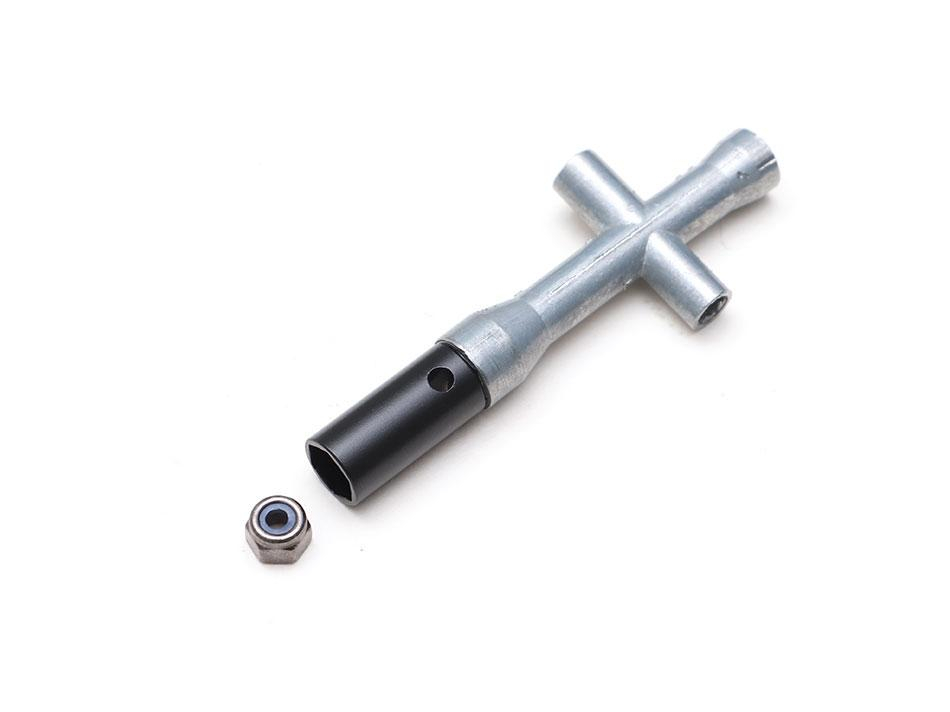

• 1x 7mm Nut Driver Adapter #BRT10045

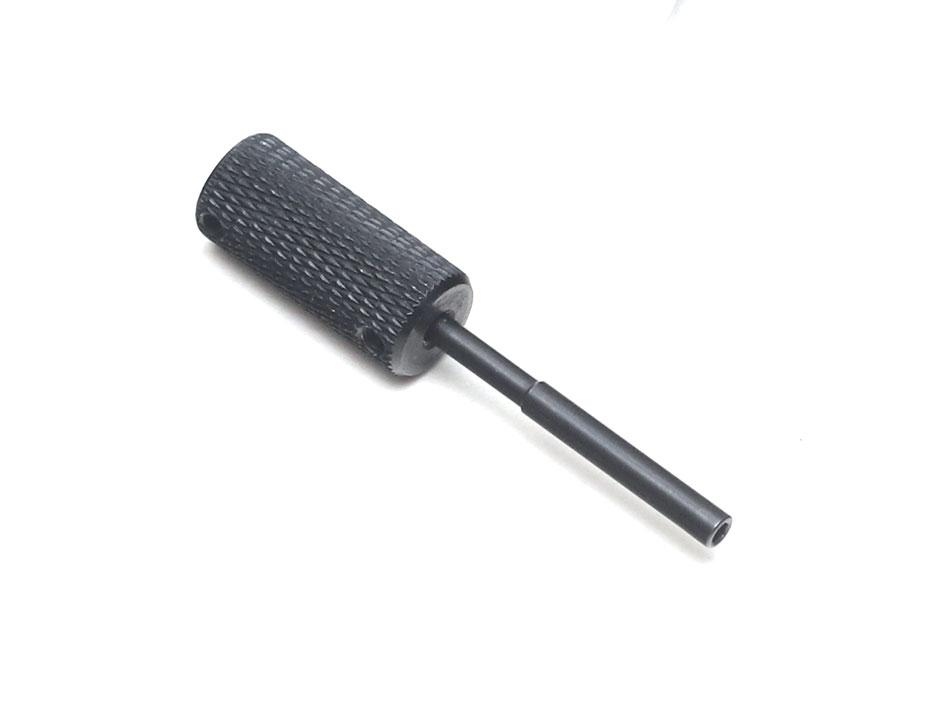

• 1x Socket Driver Thumb Tool for M2 Scale Mag Seat Lug Nut #BRPROB-16
• 1x Decal Sheet

Fits:

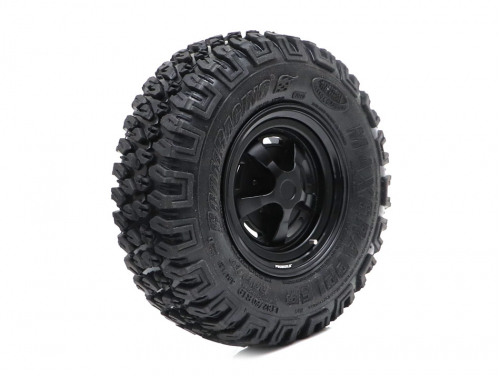

• 1.9" Crawler Tires
• Clears TRX4 and SCX10.3 portal axles
• Wheel shafts using M4 wheel nuts (XT5 V2 hub fits M4 nut. XT6 V2 hub fits M4 and M5 nuts)

Optional Wheel Hubs:

• XT500 - 0mm Pin Alum Offset #BRXT500
• XT504V2 - 4mm Alum Offset #BRXT504V2 (Included)
• XT508 - 8mm Alum Offset #BRXT508
• XT512 - 12mm Alum Offset #BRXT512
• XT516V2 16mm Alum Offset #BRXT516V2
• BRXT5DU Dually adapter #BRXT5DU *certain faceplates do not fit

Optional Scale Screws:

• Mag Seat Lug Nut M2x9m Scale Hardware BRPROB-11 (Black / Gold / Silver)
