 Boom Racing Complete Rear Assembled AR44 Portal PHAT™ Axle for Axial SCX10 II
Axial SCX10 II
Prev
Next
Showing #110 of SCX10 II Parts


LOADING IMAGES

Request Additional Photos
Enjoy Being A Badass
PART: #BRPT955023
**Discount shipping applies to this item.
Warehouse Availability:

HK: In stock (ships worldwide)
USD $119
SALE!
USD $109
Best Price Guarantee

Add To Cart
Shipping Options

Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

RELATED BLOG POST

Boom Racing AR44 PHAT Portal Axles

Boom Racing AR44 Portal PHAT Axle

Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)		 You Save Click To Order
2 USD $105.73 USD $6.54 ADD
TAGGED CATEGORIES:
Axle & Accessories
PRODUCT INFORMATION:

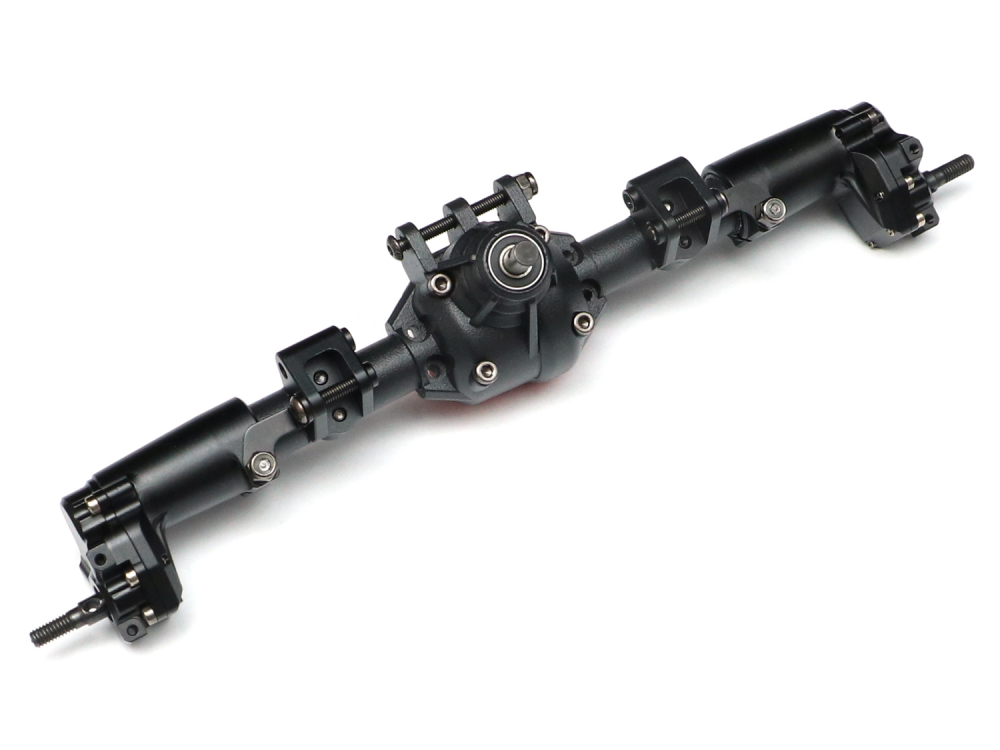

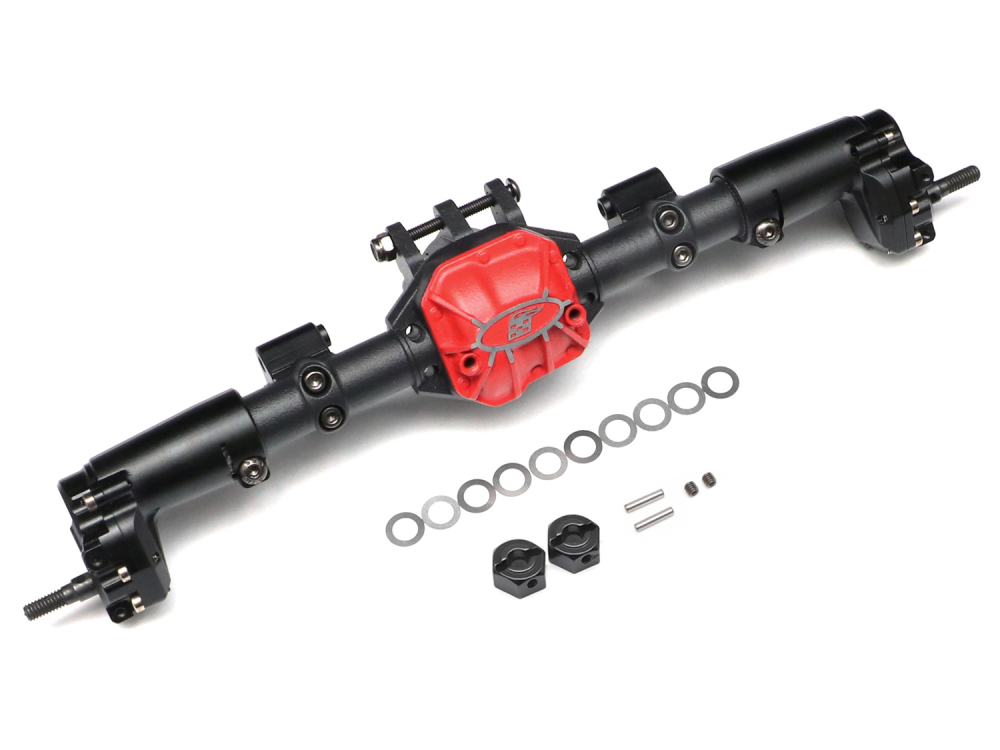

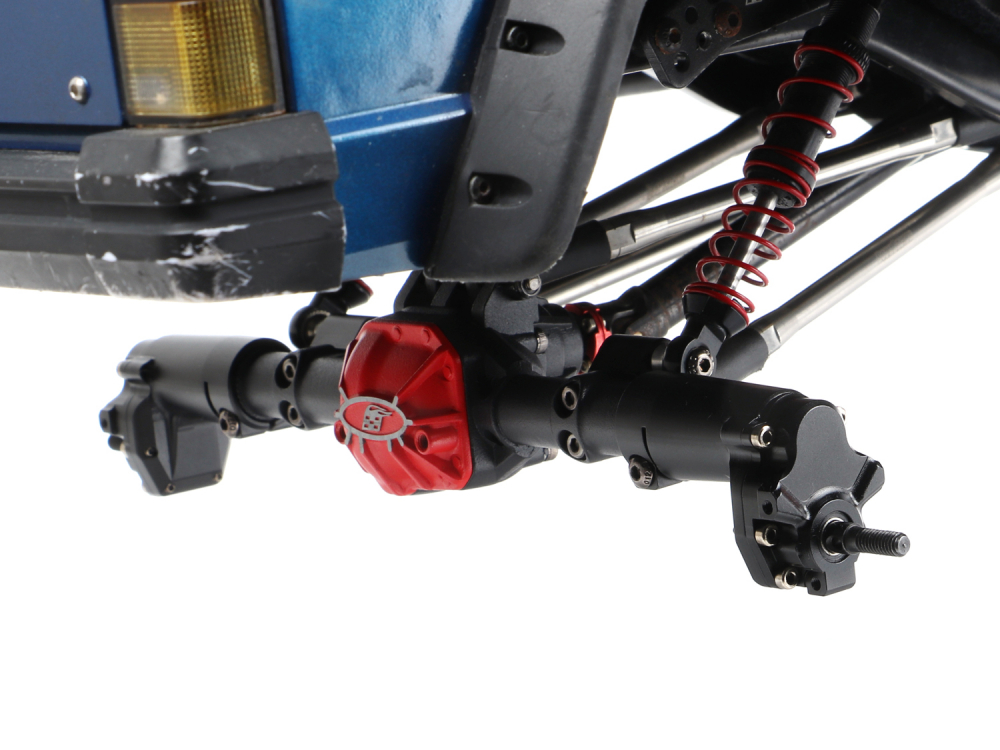

  • Introducing the Boom Racing AR44 PHAT Portal Axles, factory-assembled and ready to run.

    Built heavier than most standard axles, PHAT portals add valuable low-mounted weight where crawlers need it most, helping improve stability and maintain a lower center of gravity on technical terrain.

    Strength matches performance. Inside, heavy-duty hardened steel gears deliver smooth, reliable power transfer with long-term durability. Paired with BADASS high-strength alloy steel driveshafts, the system is engineered to handle serious crawling without compromise.

    Scale realism. Added weight. Proven durability.

    Specifications:

    • Hole to Hole: 193mm (7.6")
    • Weight: 270grams / 9.5oz (fully assembled)
    • Input pinion shaft: 5mm


    Features:

    • Additional 15mm / 0.59" ground clearance at the pumpkin over AR44 straight axle
    • Heavy and low CG AR44 PHAT axle housing

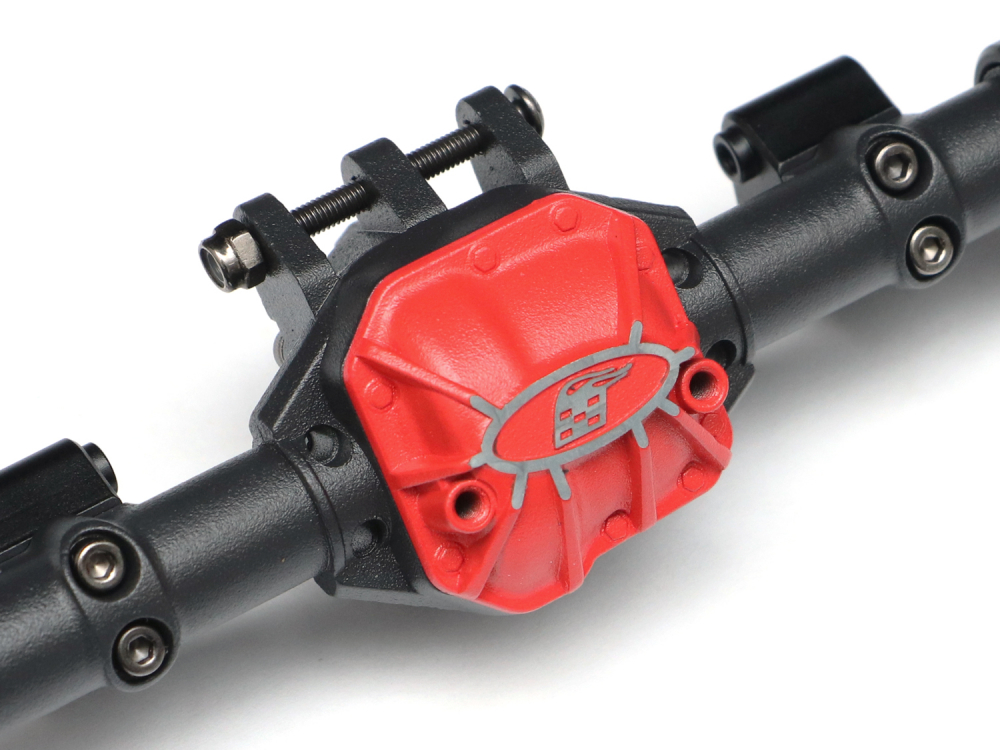

    • Heavy and low CG AR44 PHAT diff cover
    • CNC anodized aluminum lockouts and portal covers
    • BADASS™ heavy-duty steel rear driveshafts and portal driveshafts for ultimate durability, performance, and strength for the axle drivetrain

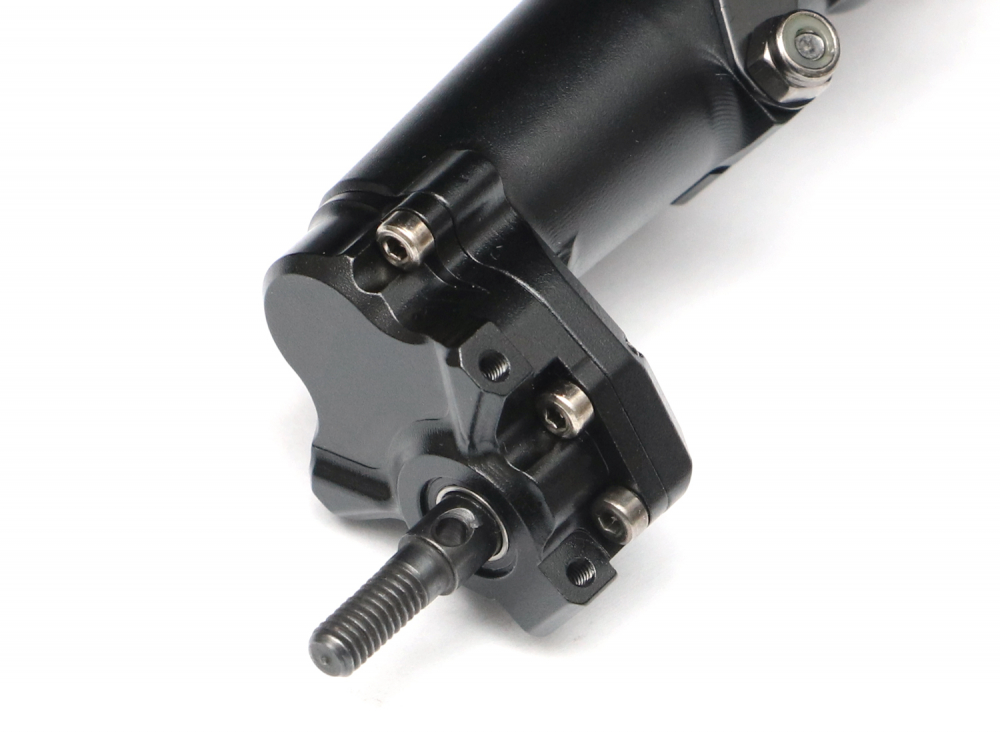

    • Four heavy-duty hardened steel metal gears in each portal gearbox for ultimate durability; easy to set up as standard rotational drivetrain
    • Steel brackets included for added axle strength

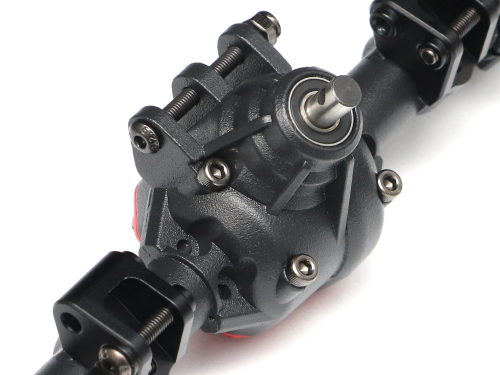

    • Heavy-duty triangular keyed AR44 (30/8T) high pinion machined gear, input shaft, and triangulated spool #BR955020 (optional 33/8T underdrive gear #BR955042)
    • High pinion axle setup for improved clearance
    • Reversible ring gear position in the housing and optional reversed AR44 gear for counter-rotating center drivetrain setup
    • Compatible with PHAT™ axle brake disc and caliper (requires optional adapter #BRPT005)

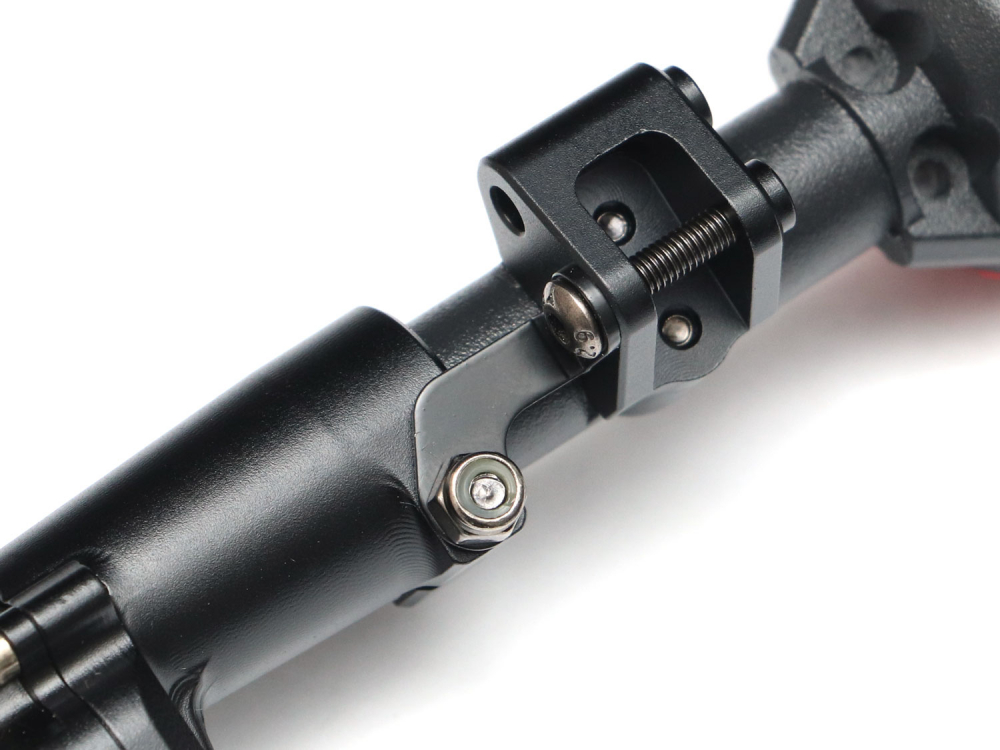

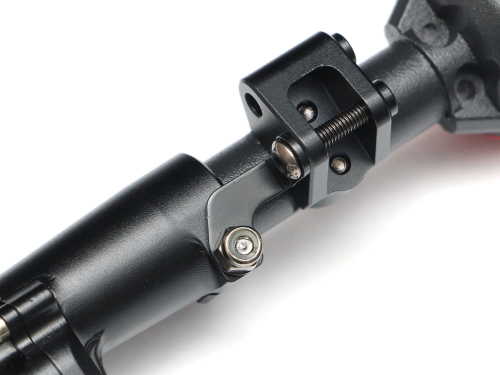

    • Anodized aluminum lower link mounts
    • Aluminum 12mm wheel hex
    • Full rubber shielded ball bearings
    • Full 12.9-grade hardware
    • Shims for fine tuning
  • Package total weight: 327.00 grams (incl. packaging)
  • Package size: 9.00 x 24.00 x 8.00cm
  • Factory description: Boom Racing Axial SCX10 II Complete Rear Assembled AR44 Portal PHAT™ Axle
  • Manufactured by Boom Racing
  • Manufacturer number: BRPT955023
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
