Looking for the ultimate scale performance axles? Check out Boom Racing's AR44 PHAT portal axles, factory-installed by Boom Racing.
PHAT axles are heavier than most axles, a desirable feature for crawlers to maintain a low center of gravity.
In addition to its weight, the AR44 PHAT portal axles are smooth and durable. The gears are made of heavy-duty hardened steel for added durability and strength. The BADASS universal driveshafts are constructed from high-strength alloy steel for maximum durability.
Specifications:
Hole to Hole: 193mm (7.6")
Weight: 322grams / 11.4oz (fully assembled)
Input pinion shaft: 5mm
Features:
Additional 15mm / 0.59" ground clearance at the pumpkin over AR44 straight axle
Heavy and low CG AR44 PHAT axle housing

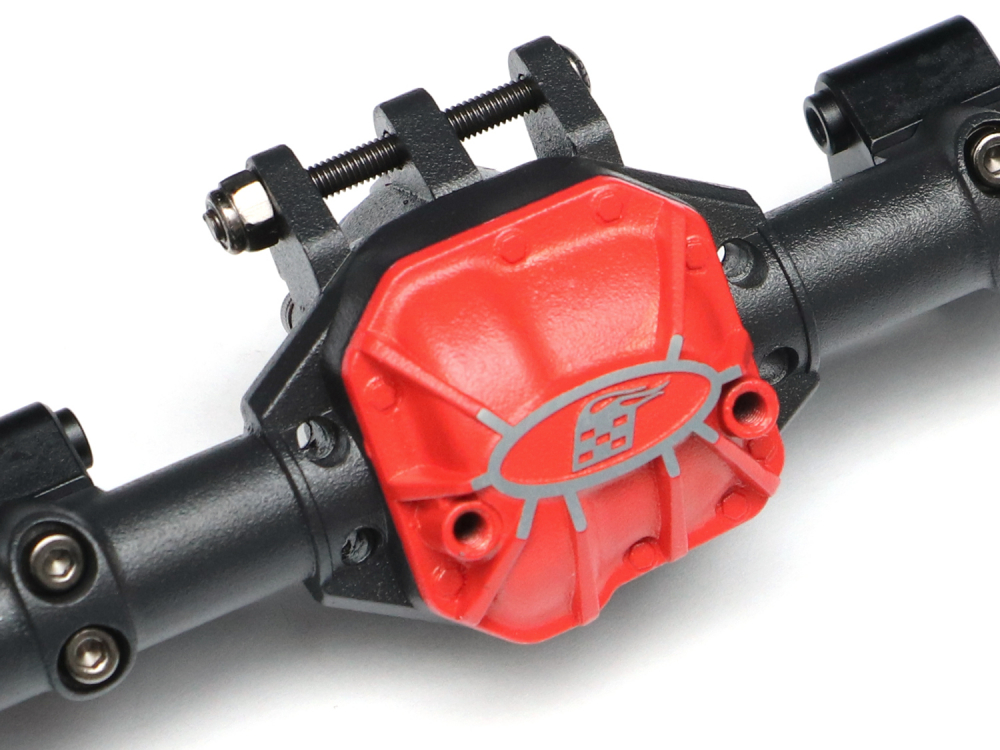

Heavy and low CG AR44 PHAT diff cover

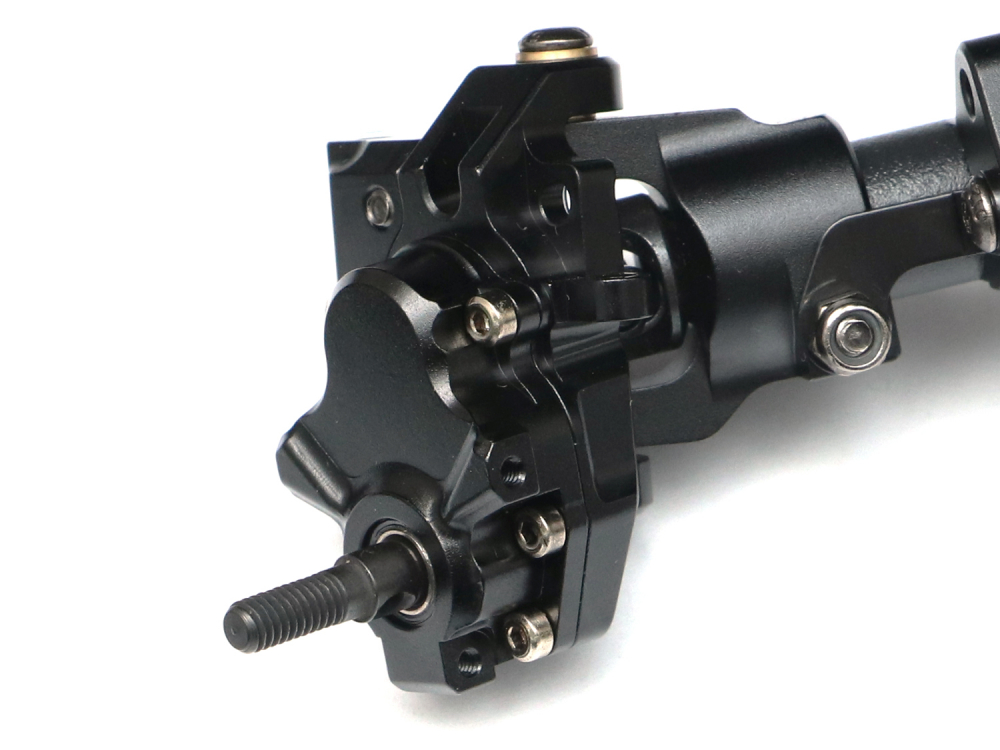

CNC anodized aluminum knuckles, portal cover, and c-hubs with high steering angle (over 45 degrees)
Detachable knuckle lever for front tie-rod or behind-the-axle steering setup
BADASS™ heavy-duty steel universal driveshafts and portal driveshafts for ultimate durability, performance, and strength for the axle drivetrain
Four heavy-duty hardened steel metal gears in each portal gearbox for ultimate durability; easy to set up as standard rotational drivetrain
Steel brackets included (0/10/20 degrees) for adjustable caster angles for additional steering adjustability

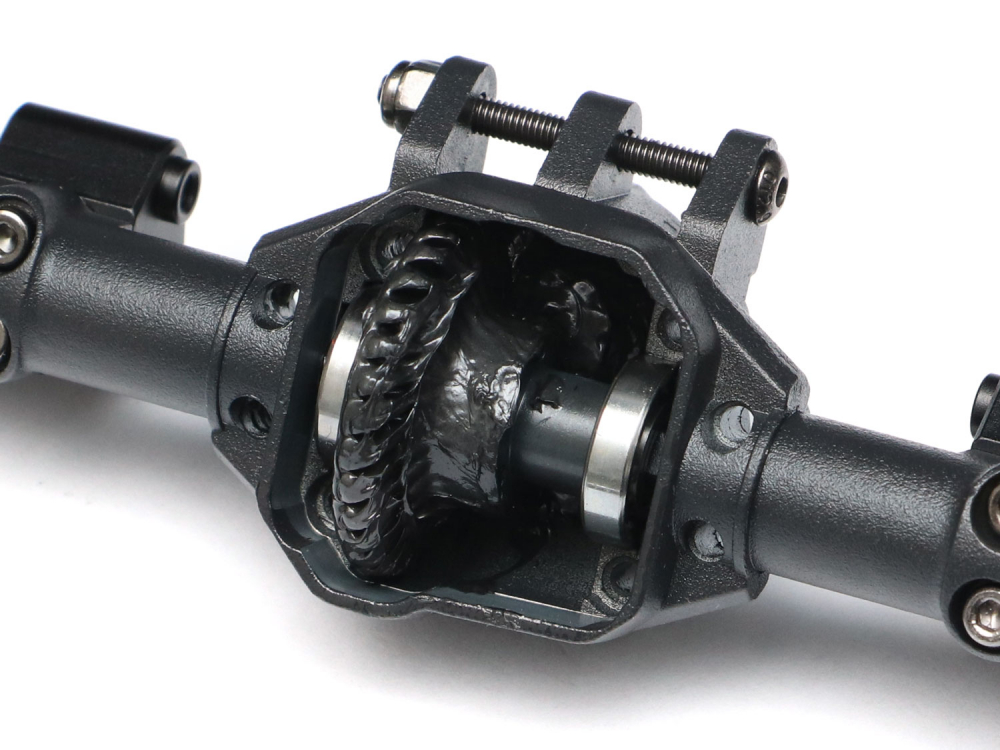

Triangular keyed AR44 (30/8T) high pinion gear, input shaft, and triangulated spool (optional overdrive and underdrive gears are available)

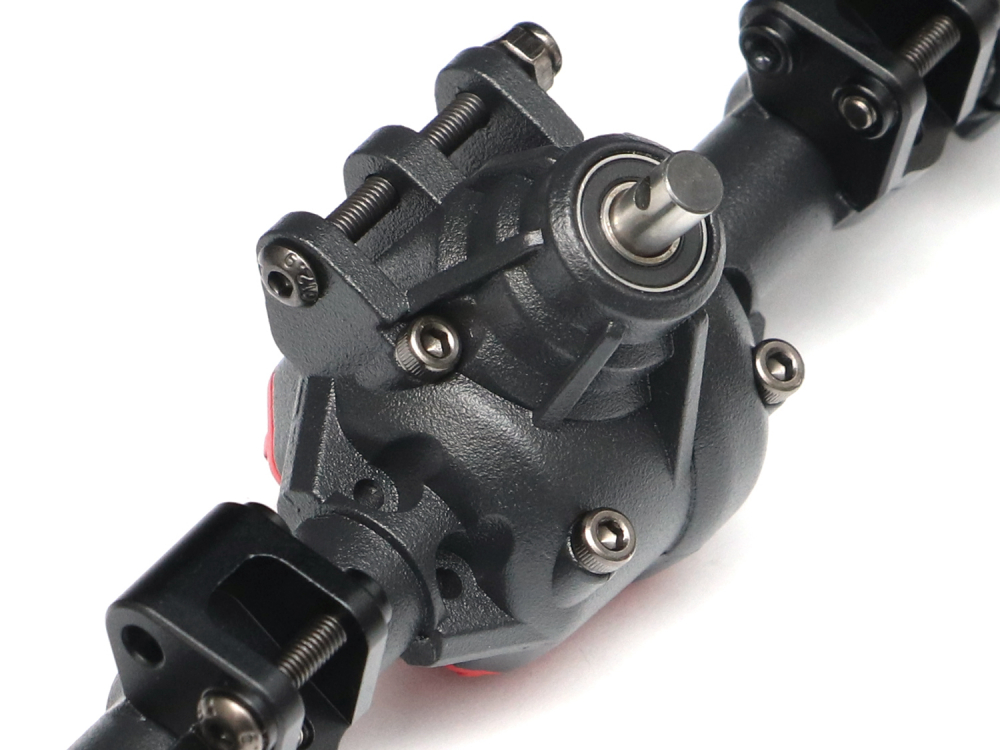

High pinion axle setup for improved clearance
Reversible ring gear position in the housing and optional reversed AR44 gear for counter-rotating center drivetrain setup
Chassis-mounted servo (CMS) and servo-on-axle setup
Compatible with PHAT™ axle brake disc and caliper (requires optional adapter #BRPT005)

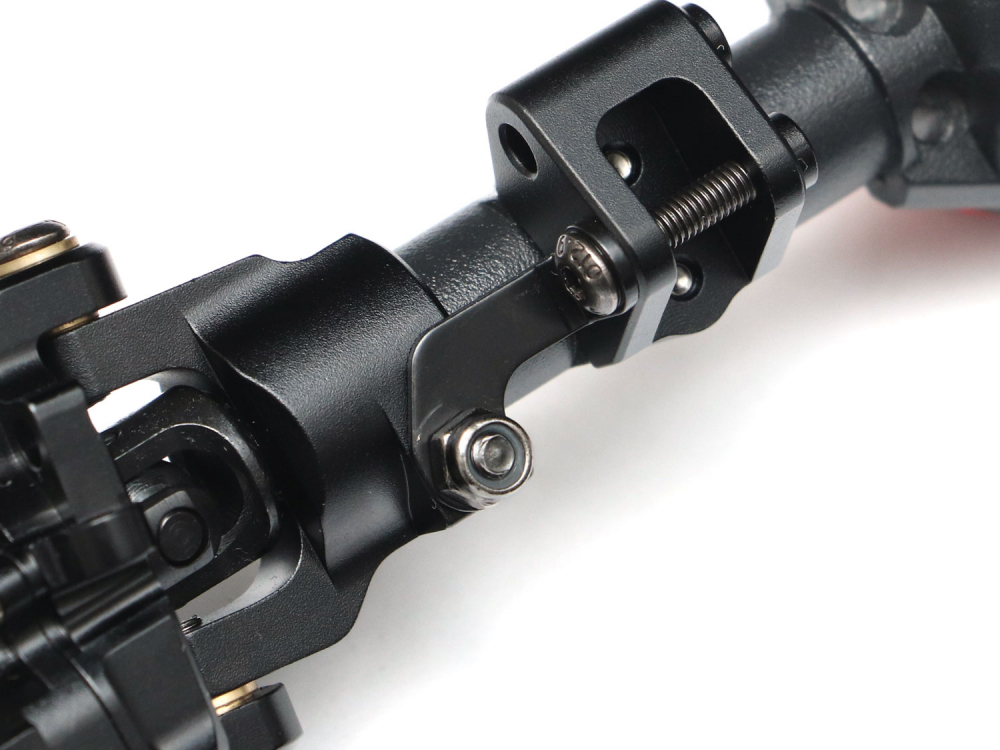

Anodized aluminum lower link mounts
Stainless steel steering tie rod & drag links (M4 Threads)
KUDU M4 nylon rod ends
Stainless steel pivot ball (for low CG weight and corrosion-free)
Aluminum 12mm wheel hex
Full rubber shielded ball bearings
Full 12.9-grade hardware
Shims for fine tuning
Package total weight: 397.00 grams (incl. packaging)
Package size: 9.00 x 24.00 x 8.00cm

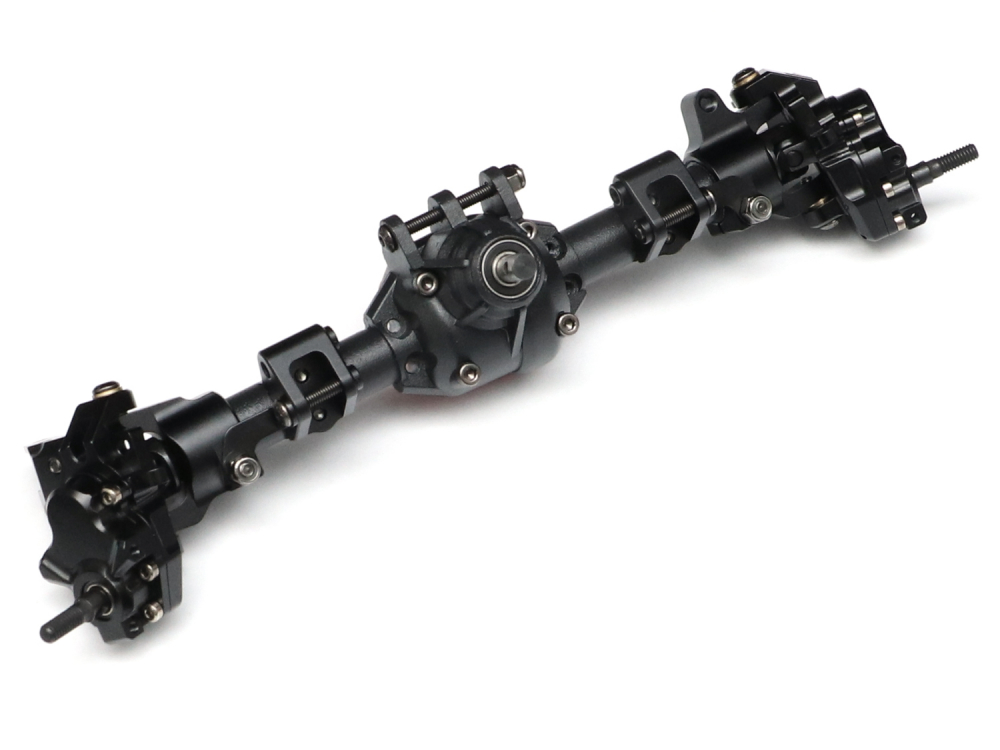

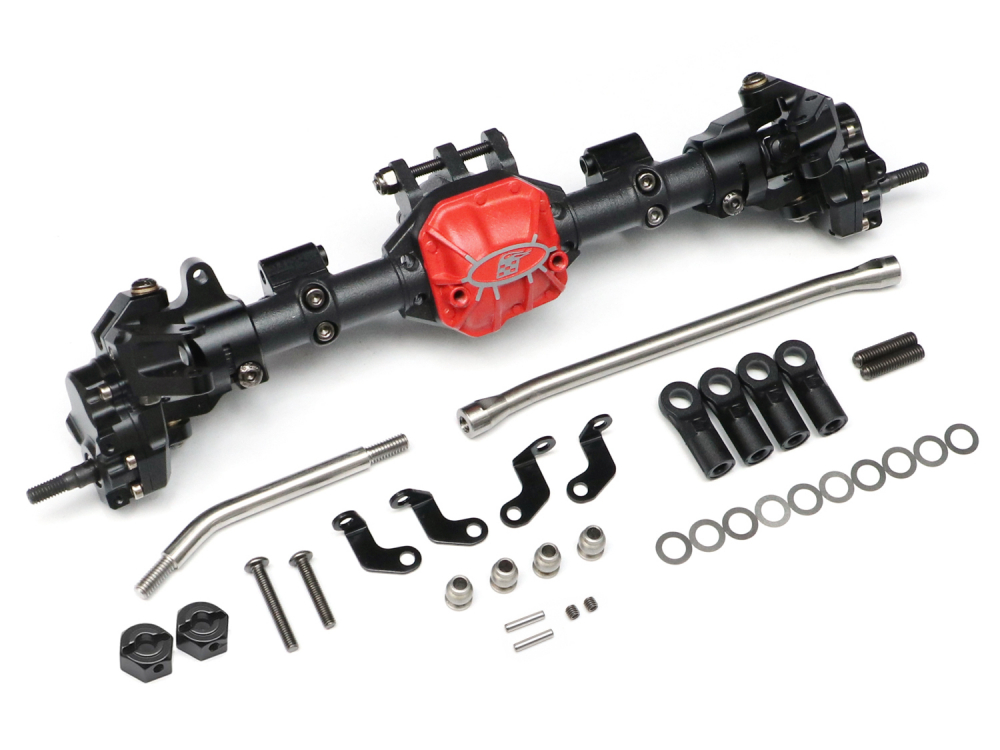

Factory description: Boom Racing Axial SCX10 II Complete Front Assembled AR44 Portal PHAT™ Axle
