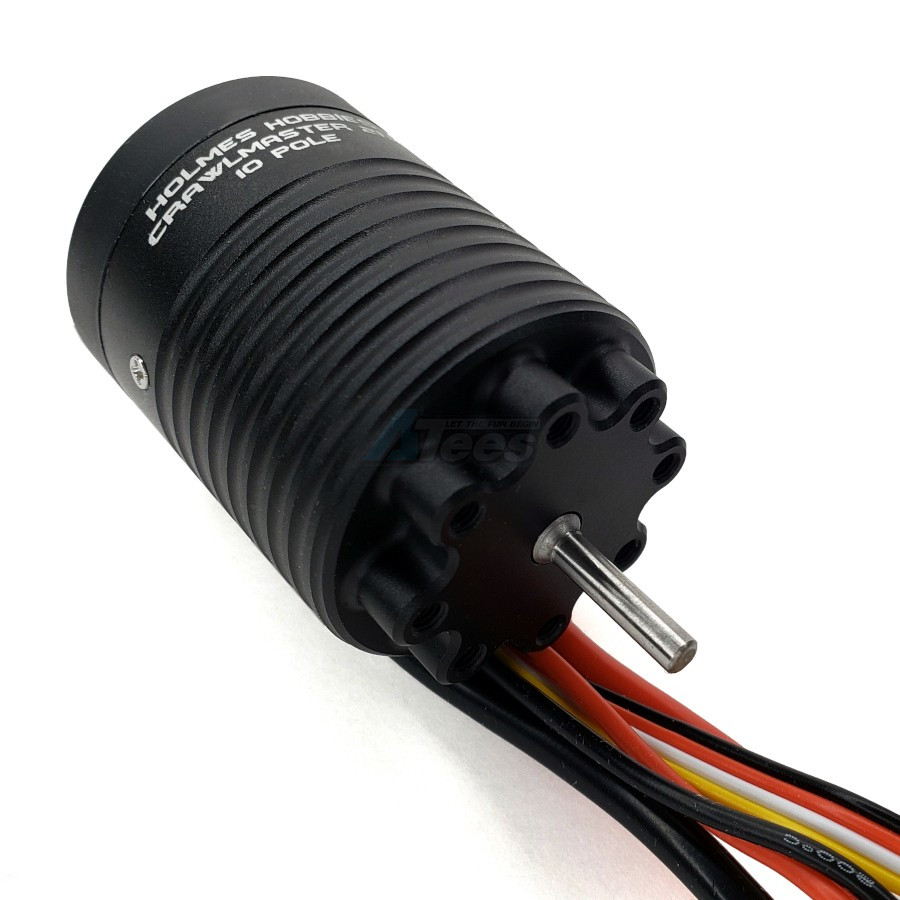

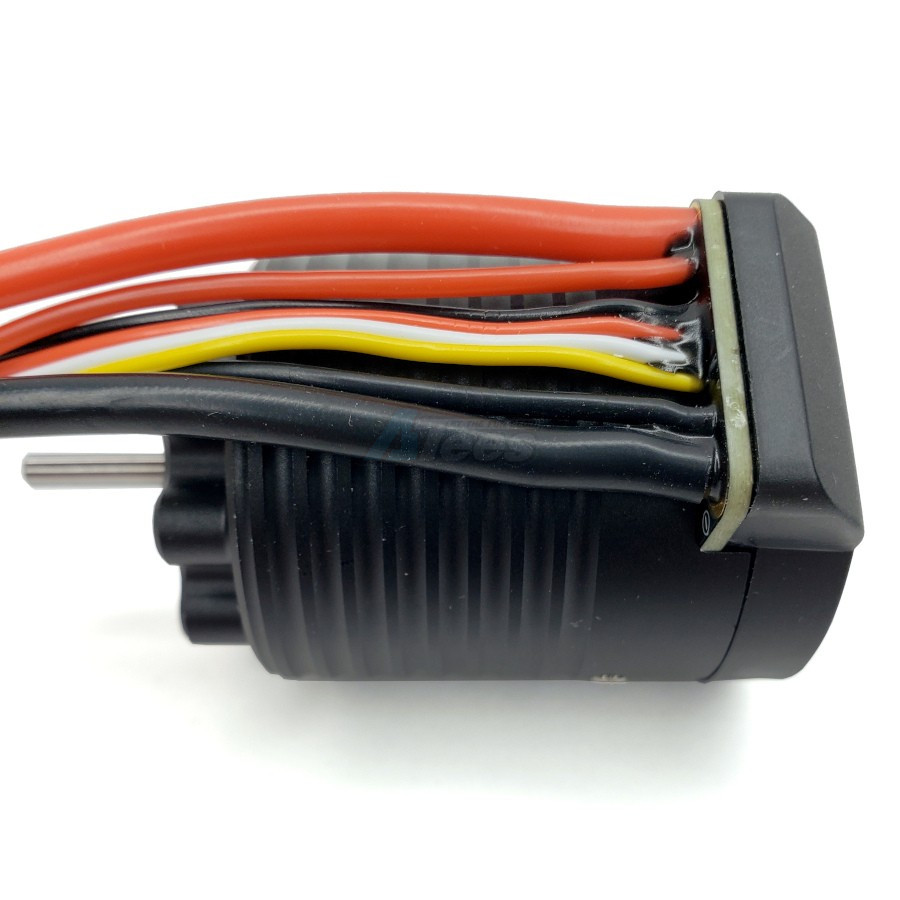

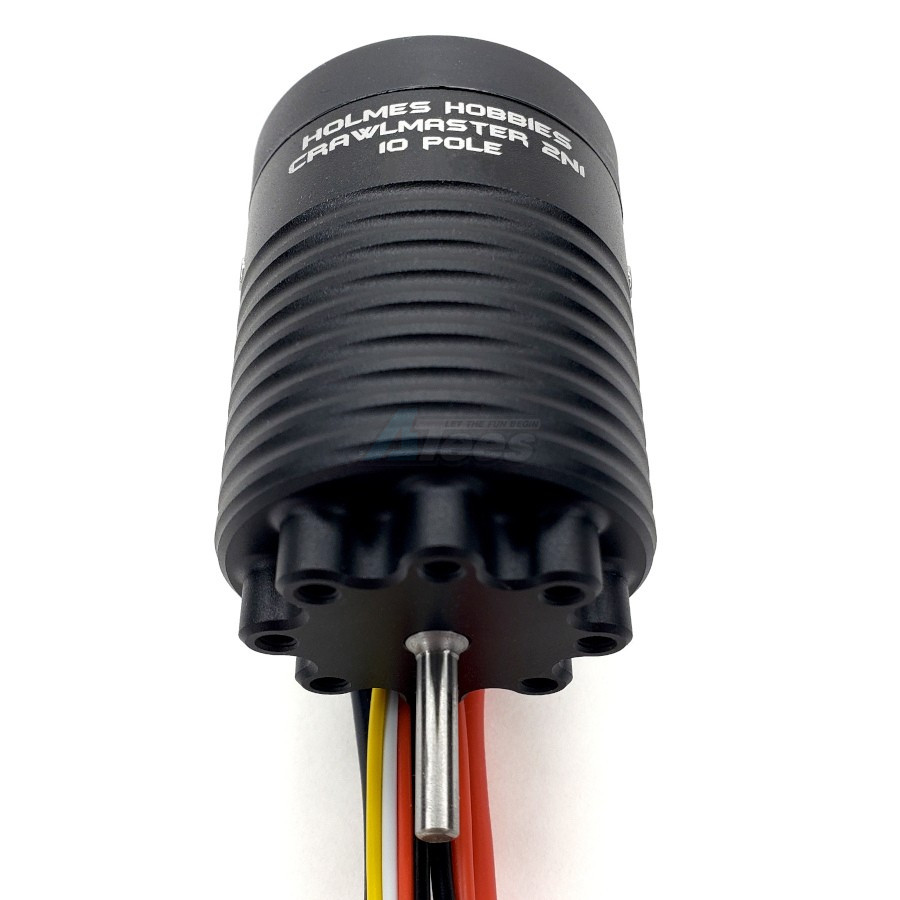

The Holmes Hobbies Crawlmaster 2n1 features our custom brushless 10 pole inrunner stator and large diameter high strength rotor for maximum torque and rpm control, ultra compact 50mm long aluminum element sealed housing, beefy bearings, and integrated ESC for plug and play fun! Our exclusive 10 pole 12 slot magnetics are designed for rock crawlers and scale trucks, dominate the trail like never before!
The Crawlmaster 2n1 is shorter than other 2n1 motors, but does not sacrifice power or torque! It has a full 540 class stator that we designed compact, don't let the short case fool you! We use the highest quality materials mated with our latest magnetic designs, so this system is made for competition yet suitable for your longest trail sessions too!
Features:
2n1 motor with ESC
Perfect for 1/10 crawlers and scale trucks
Massive 21mm diameter high torque rotor
Compact and lightweight waterproof inrunner design

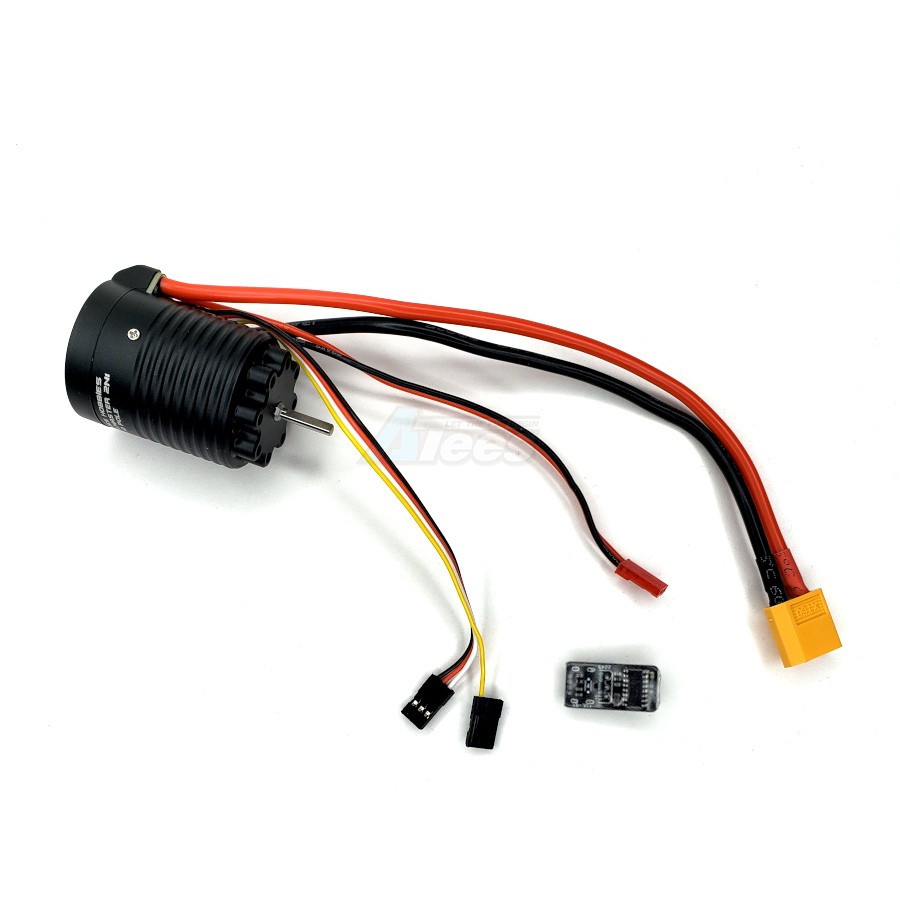

Prewired with XT60 plug and JST for accessory power
Aux wire drag brake control
Ultra smooth startup
Comes with AM32 firmware installed and tuned
Includes USB programmer
Specifications:
Type: 540 Sensorless Brushless Inrunner with integrated 40 amp ESC
5 amp 7.4 volt BEC
kV Rating: 3000
Input Voltage: 2-4S, with 3s max recommended
Slot: 12
Pole: 10
Length: 50mm
Diameter: 36mm
weight: 154g
Shaft diameter x length: 3.175mm x 15mm
No load Current: 2.2a at 10v
Terminal Resistance of motor: 19.2mOhm
Package total weight: 195.00 grams (incl. packaging)
Package size: 9.00 x 11.00 x 7.00cm
Factory description: Holmes Hobbies Crawlmaster 2n1 Brushless Crawler System 3000kv
The Holmes Hobbies Crawlmaster 2n1 features our custom brushless 10 pole inrunner stator and large diameter high strength rotor for maximum torque and rpm control, ultra compact 50mm long aluminum element sealed housing, beefy bearings, and integrated ESC for plug and play fun! Our exclusive 10 pole 12 slot magnetics are designed for rock crawlers and scale trucks, dominate the trail like never before!
The Crawlmaster 2n1 is shorter than other 2n1 motors, but does not sacrifice power or torque! It has a full 540 class stator that we designed compact, don't let the short case fool you! We use the highest quality materials mated with our latest magnetic designs, so this system is made for competition yet suitable for your longest trail sessions too!
Features:
2n1 motor with ESC
Perfect for 1/10 crawlers and scale trucks
Massive 21mm diameter high torque rotor
Compact and lightweight waterproof inrunner design
Prewired with XT60 plug and JST for accessory power
Aux wire drag brake control
Ultra smooth startup
Comes with AM32 firmware installed and tuned
Includes USB programmer
Specifications:
Type: 540 Sensorless Brushless Inrunner with integrated 40 amp ESC
5 amp 7.4 volt BEC
kV Rating: 3000
Input Voltage: 2-4S, with 3s max recommended
Slot: 12
Pole: 10
Length: 50mm
Diameter: 36mm
weight: 154g
Shaft diameter x length: 3.175mm x 15mm
No load Current: 2.2a at 10v
Terminal Resistance of motor: 19.2mOhm
Product weight: 195.00 grams
Package size: 9.00 x 11.00 x 7.00cm
Factory description: Holmes Hobbies Crawlmaster 2n1 Brushless Crawler System 3000kv
