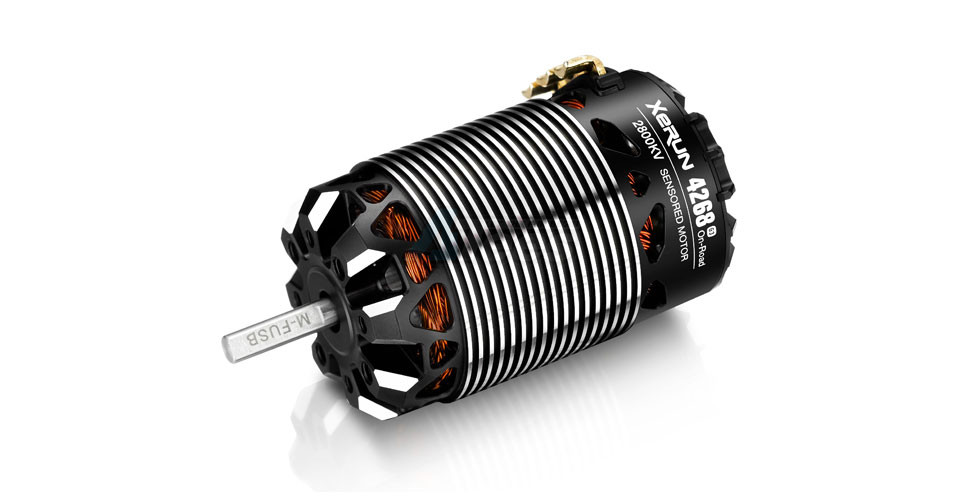

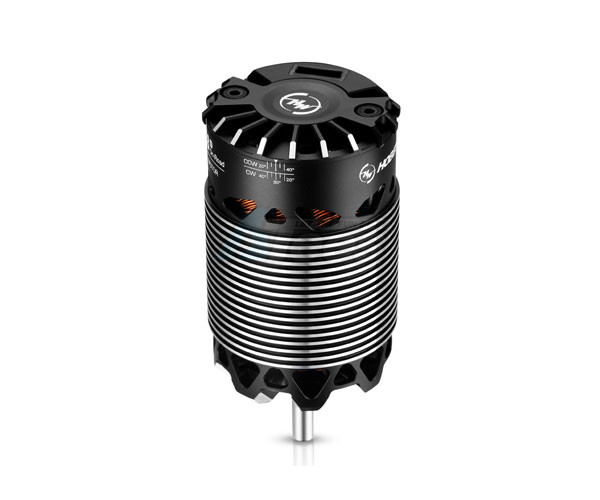

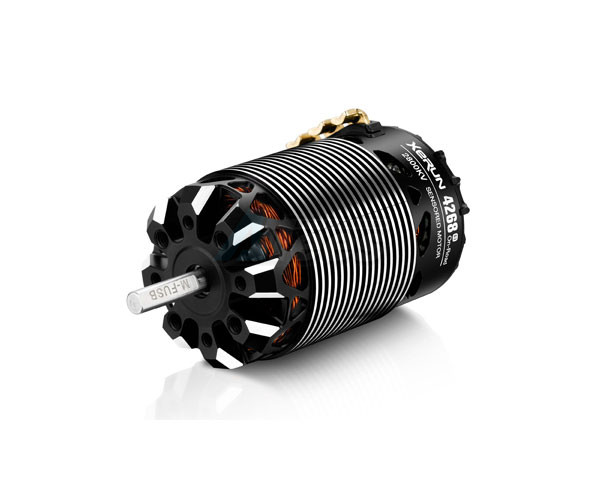

 Hobbywing 1/8th Sensorless Brushless Motor XERUN-4268SD-2800KV-BLACK-G3-OnRoad
All
Prev
Next
Showing #10010 of All Parts


LOADING IMAGES

Request Additional Photos
Innovation Powered By Passion
PART: #HW/30401909
**Discount shipping applies to this item.
OUR INVENTORY:
In Stock and Ready To Ship!
USD $129.99
Best Price Guarantee

Add To Cart
Shipping Options

Request a Video Intro
CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)		 You Save Click To Order
2 USD $126.09 USD $7.80 ADD
TAGGED CATEGORIES:
Motors (Brushless)
PRODUCT INFORMATION:
  • Features:
    • 1/8th brushless power system with the implementation of a pure signal sensor mode circuit.
    • 1/8th power system & Turbo Timing technology
      • Note: When the G3 Series motors are paired with XR8 Pro G2 ESC, the turbo feature can be set to the maximum of 48°.
    • The mechanical turbo timing of motor can be accurately adjusted in both directions (CW / CCW).
    • The efficiency has improved greatly, effectively reducing the temperature increase.
    • The G3 Series is Fail-Safe and reliable, using Hobbywing's new motor Hall sensor technology.
    • Excellent dustproof design.
    • The design of 4268SD G3 is optimized, which reduces the overall weight of the motor.
    • Low rpm (no current) torque
    • Made of 7075 aluminum bar processed by precision CNC.

    Specification:
    • Scale: 1/8th
    • Brushed/Brushless: BL
    • Sensored/Sensorless: SD
    • Pole Count: 4

    Relevant Parameters:
    • KV Rating: 2800KV
    • LiPo Cells: 2-4S
    • No-load Current(A): 6.1A

    Size & Weight:
    • O.D.(mm): 42(1.654in)
    • Length (mm): 67.8(2.669in)
    • Shaft Diameter (mm): 5.0(0.197in)
    • Weight (g): 300g
    • Front Bearing: D16*D5*T5
    • Rear Bearing: D11*D5*T5

    Other Parameters:
    • Timing: 20-40 Degrees(Adjustable)
    • Vehicle Applications: 1/8th On-road
  • Package total weight: 387.00 grams (incl. packaging)
  • Package size: 11.00 x 15.00 x 7.50cm
  • Factory description: Hobbywing 1/8th Sensorless Brushless Motor XERUN-4268SD-2800KV-BLACK-G3-OnRoad
  • Manufactured by Hobbywing
  • Manufacturer number: HW/30401909
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
View ATees.com Glossary of Terms

Find something wrong in this description?
Help us fix it! Report An Error

1/8th Sensorless Brushless Motor XERUN-4268SD-2800KV-BLACK-G3-OnRoad by Hobbywing
