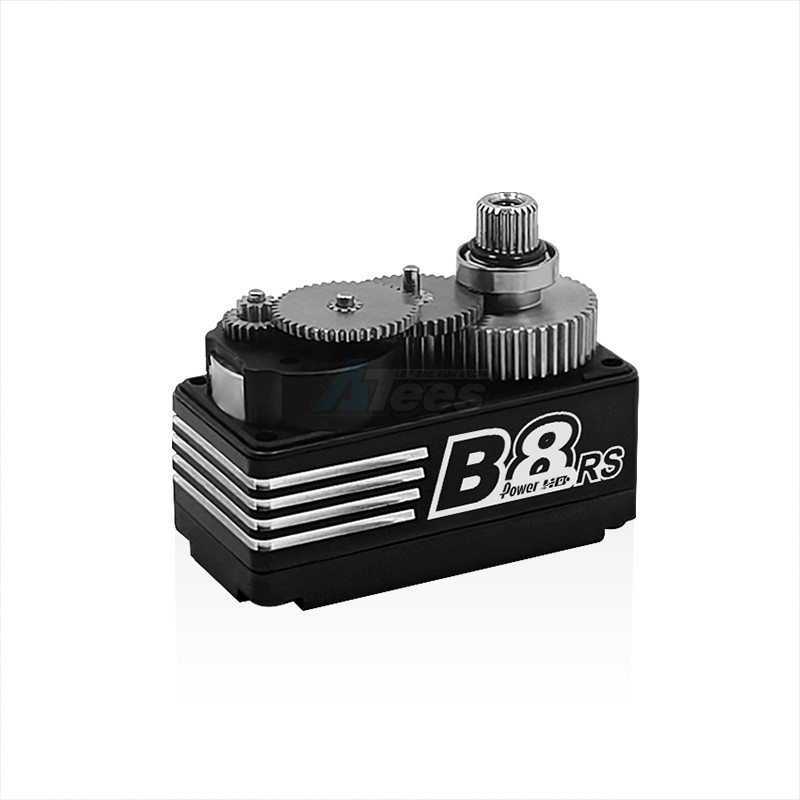

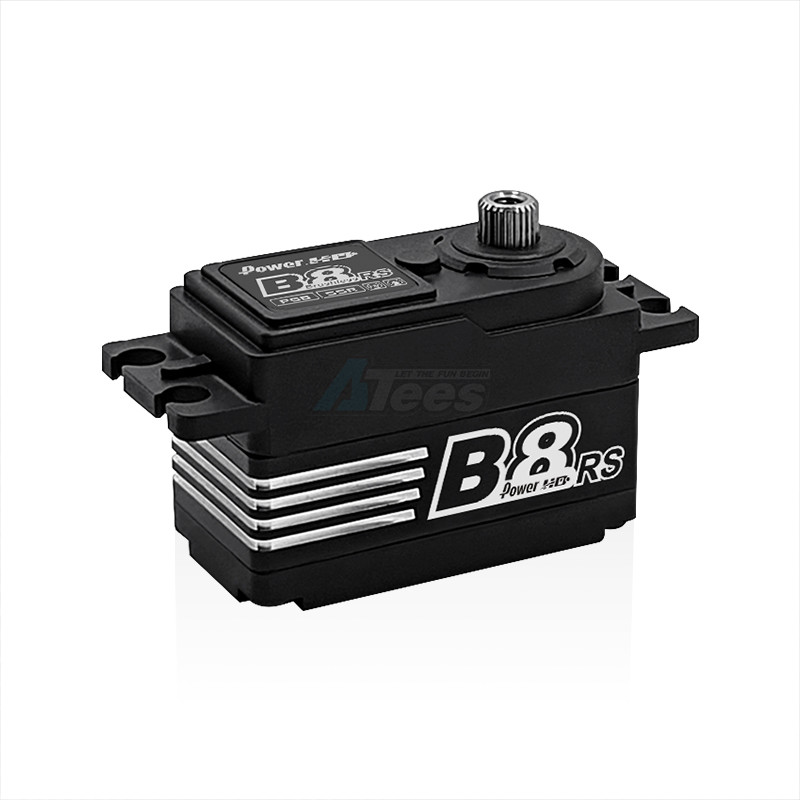

PART: #PH/B8-RS
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
TAGGED CATEGORIES:
- Features:
- B8-RS was fine-tuned in collaboration with the top 1/10 on-road and electric-buggy pro drivers.
- Voltage range: 6.0~8.4V (at 8.4V delivers 30kg.com torque at 0.075 sec speed)
- 18cm black servo lead, steel gears
- Ultra-light at just 55g
- All engineered for ultra-light weight setups, low current draw, massive torque, and razor-sharp response at a friendlier price point
- Supports high-speed protocols on all major radios:
- Noble NB4+ Pro: NOR/SR/SFR
- Futable: NOR/SR/UR
- Sanwa: NOR/SHR/SSR/SUR/SXR
- Programmable via Power HD PG-CB63 servo program box
Specifications:
- Torque: (6.0V): 20.0 kg-cm / (277.7 oz/in)
- Torque: (7.4V): 26.0 kg-cm / (361.1 oz/in)
- Torque: (8.4V): 30.0 kg-cm / (416.6 oz/in)
- Speed: 0.097 sec (6.0V) / 0.085 sec (7.4V)
- Speed: 0.075 sec (8.4V)
- Operating Voltage: 6.0 ~ 8.4 DC Volts
- Weight: 55 g (1.94 oz)
- Bearing Type: Ball Bearing x 2
- Motor Type: Brushless Motor
- Gear Type: 7075+Steel
- Max current: 3.0A
- Working frequency: 1520μs / 333Hz
- Size: 41.0 x 20.0 x 29.0 mm (1.61 x 0.79 x 1.14 in)
- Compatible with the program box only
- B8-RS was fine-tuned in collaboration with the top 1/10 on-road and electric-buggy pro drivers.
- Package total weight: 132.00 grams (incl. packaging)
- Package size: 9.00 x 13.00 x 5.00cm
- Factory description: Power HD HV Brushless Programable Digital Servo 30Kg/0.075Sec@8.4V
- Manufactured by Power HD
- Manufacturer number: PH/B8-RS
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
