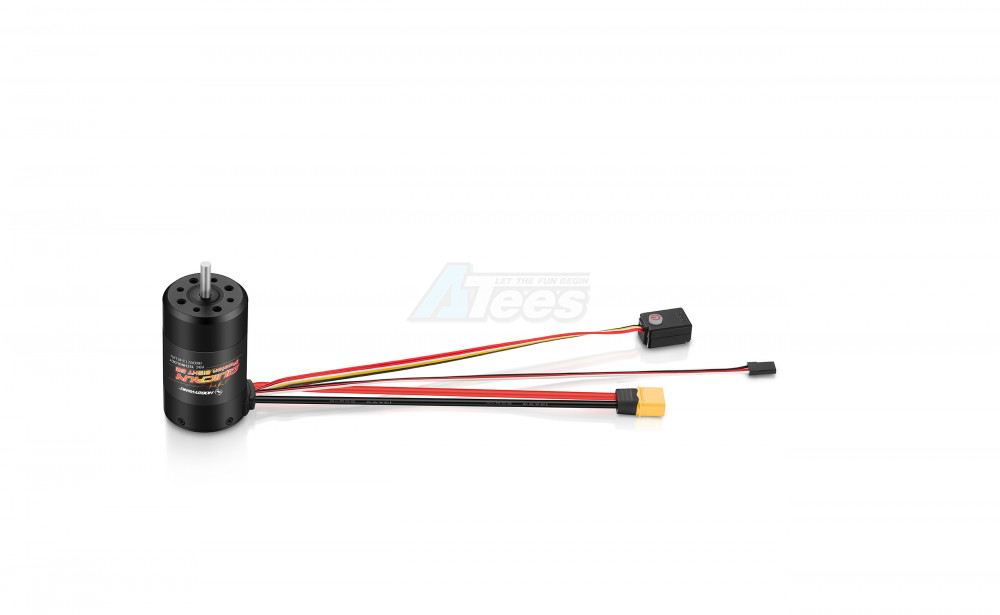

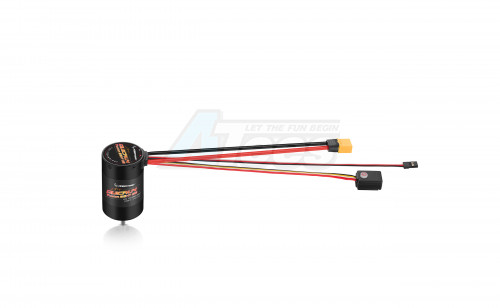

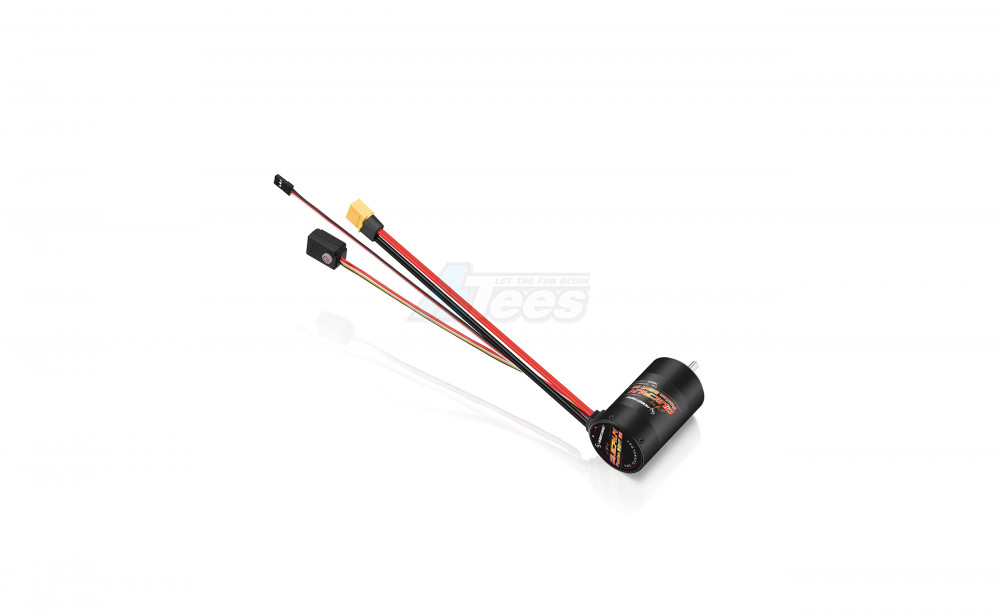

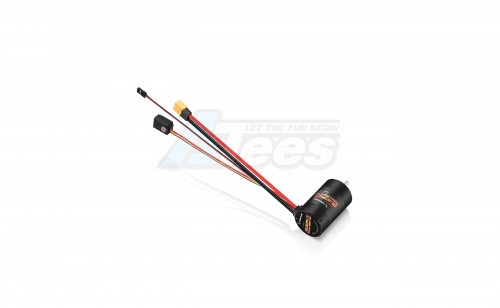

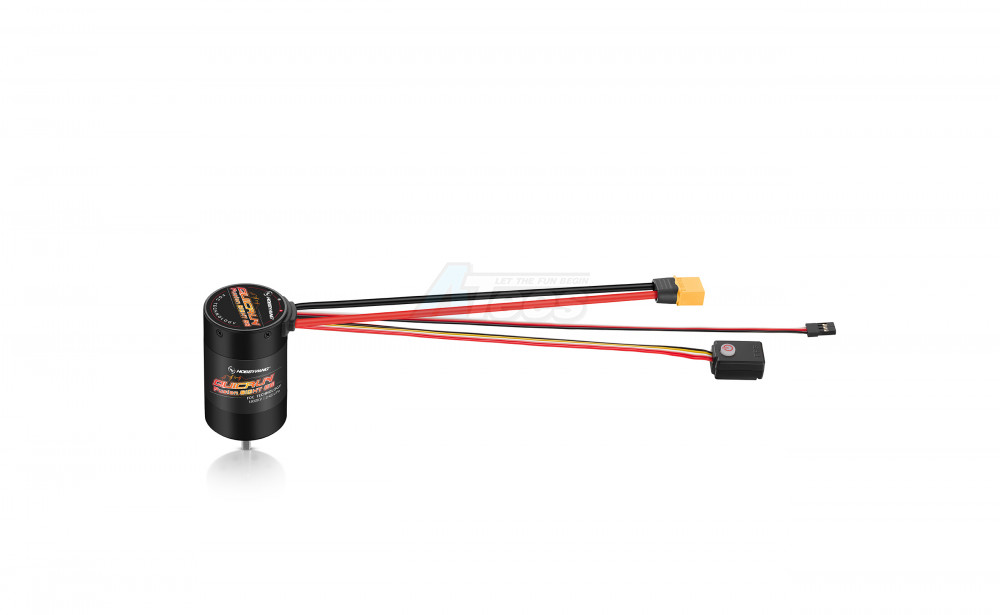

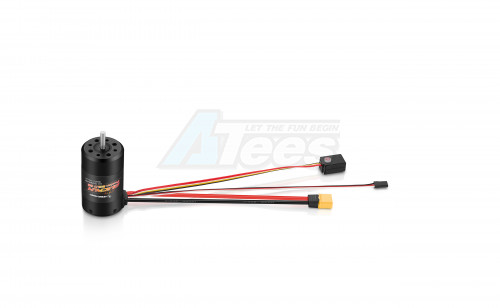

The Fusion 8IGHT SE is FOC integrated power system, specifically designed for 1/8th scale models. Its compact frame layout measures 41×69mm, making it a powerful yet space-efficient solution for users. The integrated design creates an ultra-easy-to-install system that makes for an extremely clean setup.
4S 1/8th Crawler ESC
The ESC is designed to support up to 4S LiPo
Maximum continuous output current of up to 60A
Its compact design makes it suitable not only for 1/8th climbing models, but also for 1/7th light-load climbing models.
FOC for Super Linearity & High Torque & Extreme Mute
The Fusion 8IGHT SE adopts FOC driving mode.Low speed torque is extremely powerful and smooth providing drivers ultra fine control and response under load. FOC provides superior response to standard brushless or brushed motor setups. In addition to ultra fine low speed power, the system is extremely quiet, nearly silent when in operation.
Intelligent Torque Output & Speed Closed-loop Control for Easy Control
The ESC intelligently adjusts torque output to match driving conditions, automatically increasing torque to overcome resistance and accelerate uphill.
Reducing torque to stabilise vehicle speed when descending. This smart torque management ensures precise speed control and smooth performance, delivering a consistently responsive driving experience.
Suitable for all weather and conditions
The entire power system is rated IP67, offering outstanding waterproof and dust-proof performance. This allows drivers to tackle any terrain ranging from Ice, snow, sand and water, knowing their system will perform flawlessly.
Supports Three Operating Modes
The system supports multiple operating modes to meet various application needs.
Fixed Speed Mode (Direct Forward and Reverse)
Normal Mode without Fixed Speed Functionality (Forward and Reverse with Brake)
Normal Mode without Fixed Speed Functionality (Direct Forward and Reverse)
Supports LED / LCD Program Boxes
The ESC is compatible with both basic LED program box and advanced LCD program box.
Variety of Parameters
The Fusion 8IGHT SE offers a wide range of customisable parameters, with a total of 11 adjustable settings to accommodate diverse application requirements and fine-tune performance.
Specifications:
Scale: 1/8th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Cont./Peak Current: 60A/200A
Input Voltage: 2-4S LiPo,6-12 Cells NiMH
BEC BEC Output: 6V/7.4V adjustable,continuous current 4A (Switch mode)
