 Boom Racing Front Portal Axle Conversion Kit for BRX80 PHAT™ Axle

 All
Prev
Next
Showing #4539 of All Parts

Your Radio Control Car Specialist
PART: #BRPT8022KIT
This item ships Free WORLDWIDE. Details
OUR INVENTORY:
In Stock and Ready To Ship!
USD $85
SALE!
USD $79.8
Best Price Guarantee

Add To Cart
Shipping Options

CUSTOMER REVIEWS

This product currently has 0 reviews

Currently all feedbacks are left by AsiaTees customers.

Quantity Discount
Units at this Price ATees' Low Price
(Per Unit)
You Save Click To Order
2 USD $77.41 USD $4.79 ADD
TAGGED CATEGORIES:
PRODUCT INFORMATION:
  • This is a set of front portal axle conversion kit for the BRX80 PHAT™ axle. The portal gearbox has four heavy-duty steel gears (doubles the contact mesh) each for strength and durability.

    Features:
    • Additional 15mm / 0.59" ground clearance at the pumpkin
    • CNC aluminum portal knuckle & cover
    • BADASS™ heavy-duty steel front universal driveshafts
    • BADASS™ heavy-duty steel front portal driveshafts
    • Four heavy-duty hardened steel metal gears in each portal gearbox (increased contact mesh for durability and strength)
    • Anti-twist steel brackets to prevent axle twist (optional 10 deg bracket available)
    • Full rubber sealed bearings
    • Full 12.9-grade hardware
    • Compatible with PHAT™ Axle brake disc and caliper (caliper requires optional adapter)
    • Knuckle arms from the BRX80 straight axle are compatible with the portal knuckle.

    Specification:
    • Width: 173.5mm / 6.83" pin-to-pin (BRX80 portal front and rear axles have the same widths)
    • Requires 44mm / 1.73" wheel barrel clearance (to clear the entire portal gearbox)
    • Portal gearbox ratio: 1:1
    • Weight: 320g
    • Portal Gearbox Size:
      • Width: 23.5mm
      • Height: 30.5mm (21.5mm above shaft / 9mm below)

    Fits:
    • BRX80 Front PHAT™ Axle
    • 1.55" / 1.9 / 2.2" wheels (will fit 1.55" wheels depending on offset)

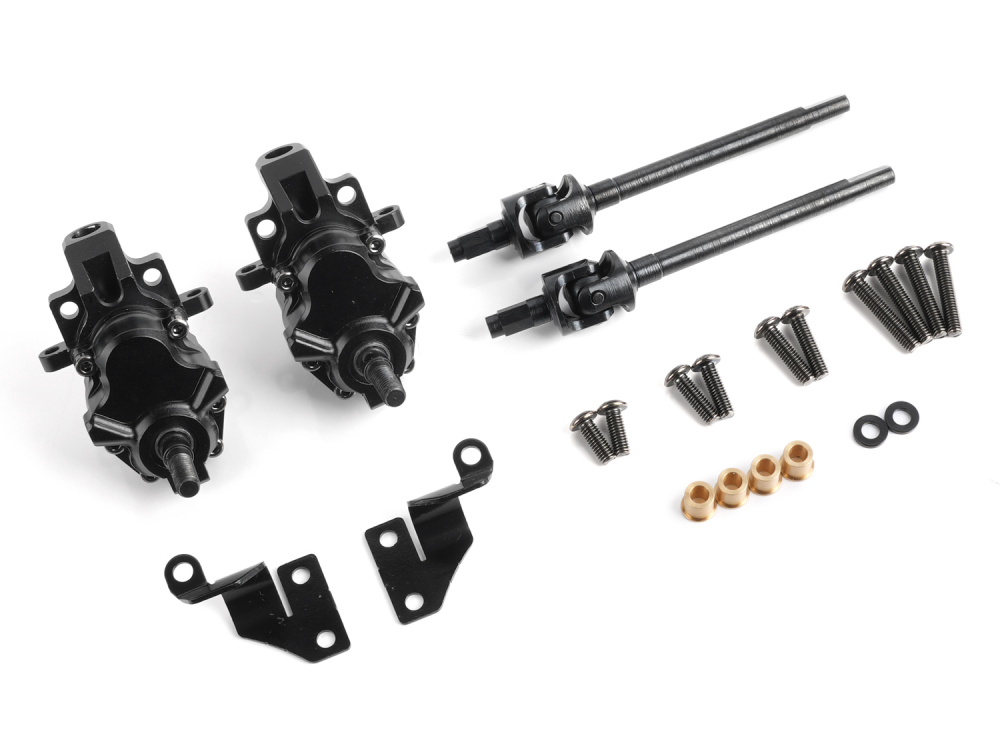

    Includes:
    • 1x Left Side Portal Conversion Unit
    • 1x Right Side Portal Conversion Unit
    • 2x BADASS Front Universal Driveshaft for BRX80 Portal PHAT™ Axle
    • 1x Left Side Steel Anti-Twist Bracket
    • 1x Right Side Steel Anti-Twist Bracket
    • 4x Brass Washer
    • 2x Spacer
    • Full Rubber Sealed Bearings
    • Full 12.9-Grade Hardware

    Bearing Sizes:
    • D4x7x2.5 #BBZMR742RS x10
    • D5x10x4 #BBZMR1052RS x2
    • D5x9x3 #BBZMR952RS x2
    • D4x8x3 #BBZMR842RS x2

    Requires:
    • BRX80 Front PHAT™ Axle

    Optional
    • Brass Front Knuckles & Knuckle Covers for AR44/BRX70/BRX80/BRX90 Portal PHAT™ Axle BRPT009
  • Package total weight: 116.20 grams (incl. packaging)
  • Factory description: Boom Racing Front Portal Axle Conversion Kit for BRX80 PHAT™ Axle
  • Manufactured by Boom Racing
  • Manufacturer number: BRPT8022KIT
  • This item is eligible for in-store promotions
  • Nobody beats our price! See our Best Price Guarantee, or your money back!
  • Questions about this product? Ask Our Technical Support
  • You may Request Additional Product Information for this product.
  • Looking for screws / bolts to assemble this product? Email Us
