PART: #FT/FUR-2735
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||
CUSTOMER REVIEWS
This product currently has 0 reviews
Currently all feedbacks are left by AsiaTees customers.
TAGGED CATEGORIES:
- Compact. Powerful. Born to Race.

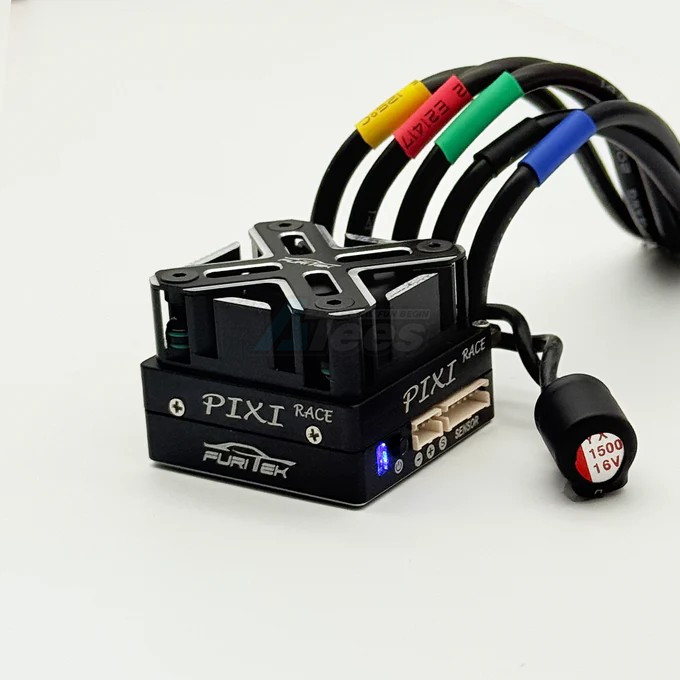

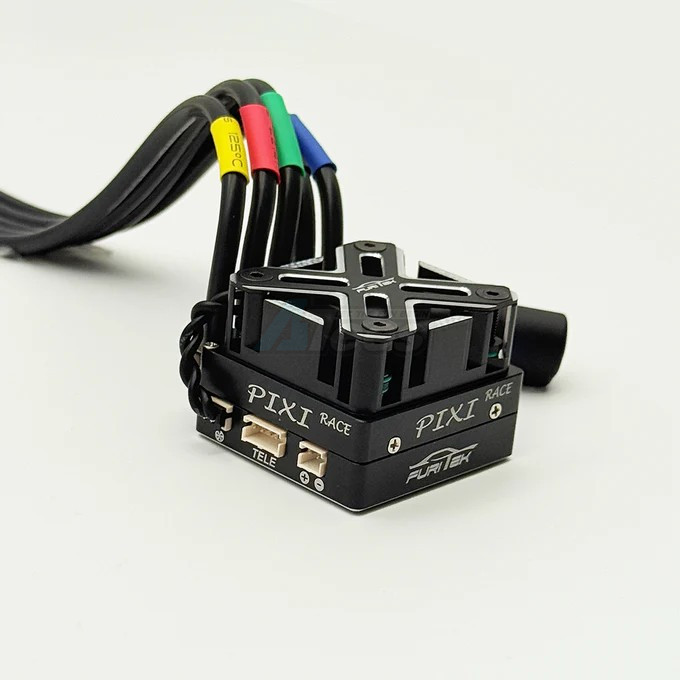

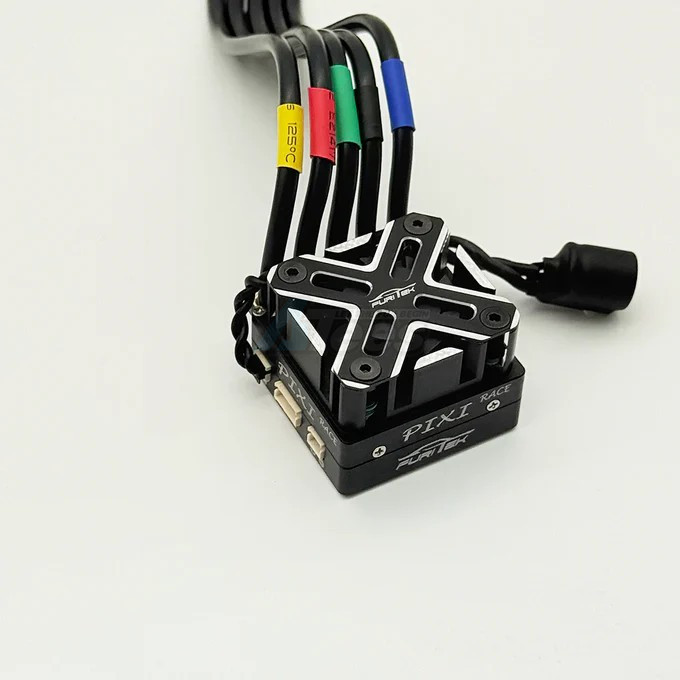

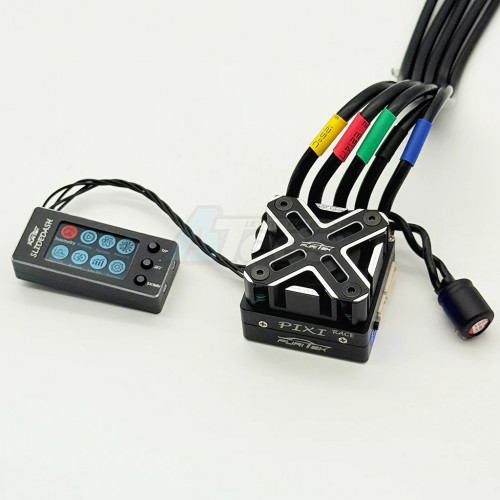

The Furitek PIXI RACE is a next-generation 180A sensored ESC built for serious 1/10 Stock and Modified racing.
Designed for maximum performance in the smallest form factor, the PIXI RACE delivers full-size race power in a micro 34.7 × 34.7 × 25 mm housing, weighing just 45 g (without wires) — one of the smallest and lightest competition ESCs ever made.
Despite its compact size, it’s fully capable of handling motors down to 4.5T, giving racers the torque and RPM needed for high-speed Modified classes while maintaining absolute throttle precision and control.
Built to Perform
At its core is a custom racing firmware with a true Blinky Mode for Stock Class legality — ensuring zero boost and zero timing at all times.
No tricks, no hidden power — just clean, regulated racing output trusted by competitive drivers.

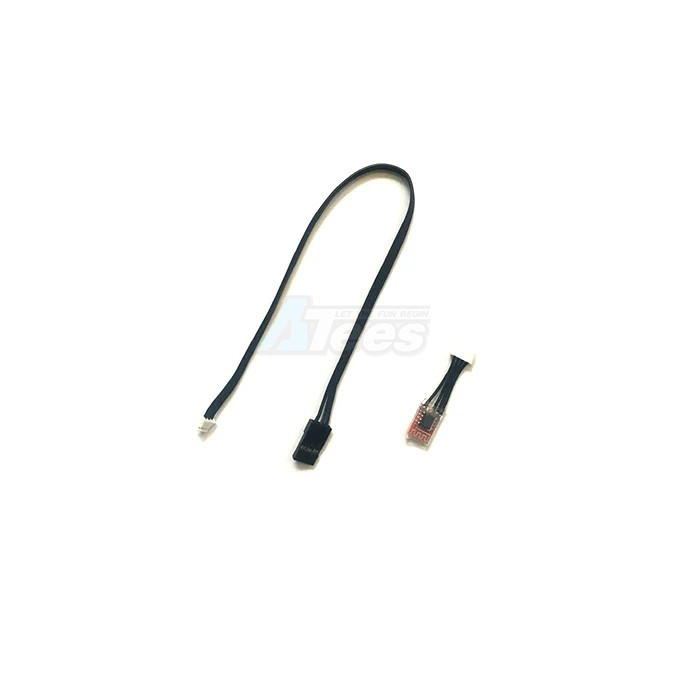

A dedicated external WiFi Module provides real-time tuning and firmware updates through the Furitek App on iOS and Android.
Smart Cooling & Connectivity
Equipped with an integrated internal micro-fan, the PIXI RACE maintains stable thermal performance even during finals,
and includes a dedicated external FAN port for motor cooling — keeping your setup safe under extreme load.
It comes pre-wired with premium 12 AWG high-strand silicone wires, offering the perfect balance between low resistance and flexible routing inside tight race chassis.
Race-Ready Intelligence
A 32-bit high-speed MCU ensures instant throttle response and ultra-smooth power delivery.

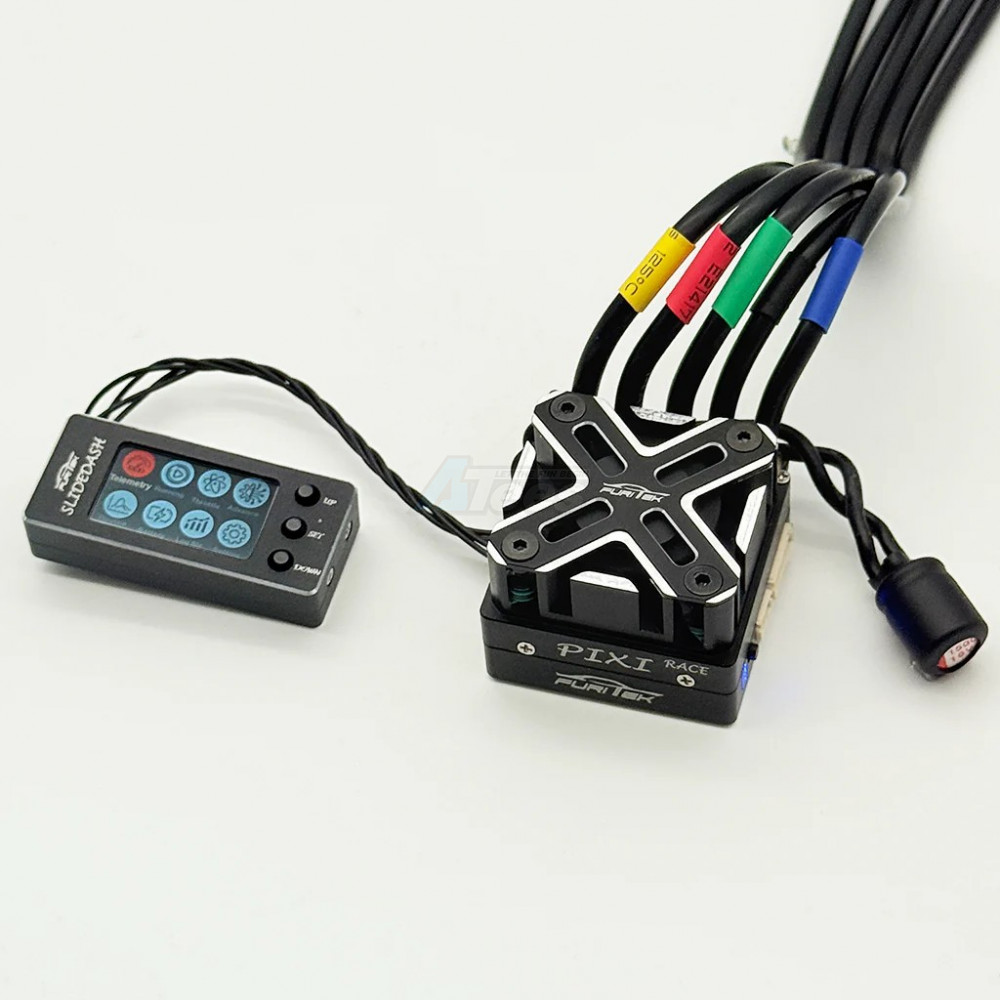

The ESC is fully compatible with the Furitek SlideDash OLED Display (sold separately), enabling on-car tuning, telemetry, and real-time monitoring without the need for a phone.
Technical Highlights:
- Continuous Current: 180 A
- Peak Current: 800 A
- Motor Limit: Supports down to 3.5 T (Modified Class) / Unlimited (Stock Blinky)
- BEC Output: Adjustable 6 V–7.4 V / 10 A Peak
- PWM Frequency: Adjustable up to 64 kHz
- Input Voltage: 2S LiPo
- Cooling: Integrated internal micro-fan + external motor FAN port
- Wiring: Pre-installed 12 AWG high-strand silicone wires
- Connectivity:
- WiFi Module (optional) – Wireless tuning & firmware updates via Furitek App
- SlideDash OLED Display (sold separately) – Telemetry & on-car tuning
- Firmware: Upgradable
- CPU: 32-bit high-speed MCU
- Dimensions: 34.7 × 34.7 × 25 mm (1.37 × 1.37 × 0.98 in)
- Weight: 45 g (1.59 oz, without wires)
Race Features:
- True Blinky Mode for Stock Class legality
- Turbo & Boost Timing for Modified racing
- Throttle & Brake Curves fully adjustable
- Pre-Run Self-Diagnostic Check for voltage and sensor status
- Dust-Resistant Architecture for long-term durability
- Compact size. Explosive performance. Total control.
- The Furitek PIXI RACE proves that micro size can deliver macro power-handling 3.5T motors with ease, while offering smart tuning, cooling flexibility, and race-ready precision.
Tips:
- Please double-check power connector polarity before soldering!
- Always verify + and – before connecting power
- Use proper tools and take your time to avoid mistakes
- Your attention to detail can save your electronics!
- Package total weight: 142.00 grams (incl. packaging)
- Package size: 9.00 x 12.00 x 6.00cm
- Factory description: Furitek Pixi Race 1/10 180A Sensored Esc w/ Wifi Module & Internal Fan - Stock/mod Competition Esc
- Manufactured by Furitek
- Manufacturer number: FT/FUR-2735
