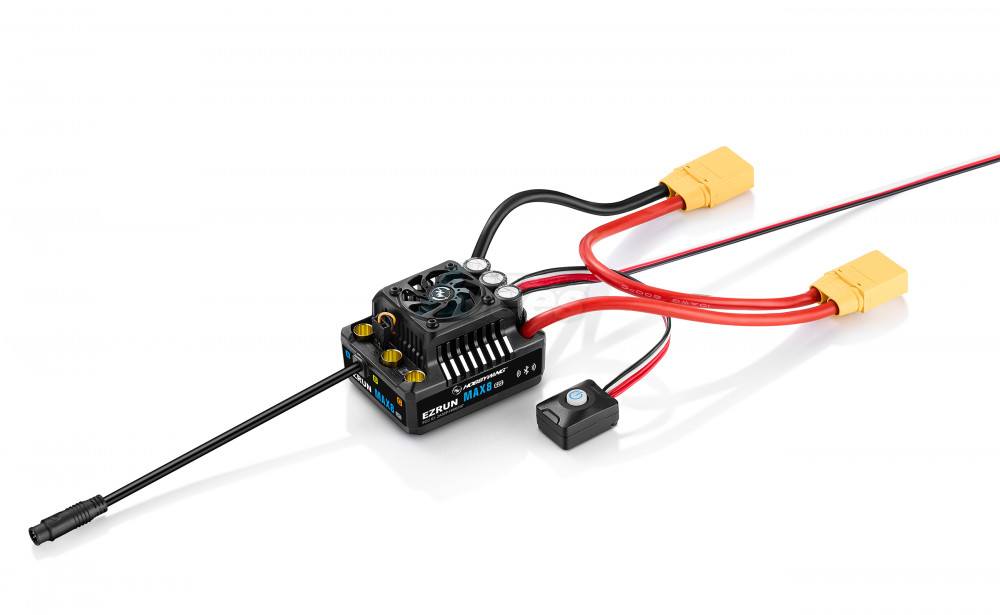

The ESC has power, yet smooth and linear throttle response. This balance of power and control allows drivers to drive their vehicles at the limit comfortably.
Based on the MAX8 G2 ESC, the brand new G2S ESC is equipped with optimized hardware design application such as intelligent freewheeling technology. The stability and reliability of the ESC has been further improved.
The ESC has a built-in Bluetooth module. It allows you to connect to the mobile APP directly without plugging any device. It is simple and convenient to perform parameter settings, data reading, firmware upgrades other operations.
Note: The data includes throttle amount, voltage, current, temperature, speed, etc.
The ESC has a built-in data recording module. Store up to 10 minutes of your most recent run. Using the HW Link V2 App, you can view the data saved to the ESC. In addition, the module allows you to view Real-Time Data from the ESC for bench top testing and viewing of the data outputs.
Note: Due to the transmission distance of bluetooth, the effective distance is only about 5m!
The ESC fan does not run when the ESC temperature is low. The fan automatically turns on when the ESC temperature reaches the preset value. The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.
A frameless fan with patented technology is used. The large flow of air from the side of the fan effectively blows the heat away from the integrated housing radiator to ensure that the ESC is always at the optimal operating temperature.
High level of protection, IP67 excellent waterproof and dust-proof performance. All-weather operation capabilities can cope with harsh environments and various climate conditions.
1/8th power system turbo timing technology. Turbo timing that is adjustable up to 32 degrees. Using turbo allows motor RPM to be increased through advanced ESC electronic timing.
The Capacitor protection prevents damage to the power caps from overheating from overloads or extreme conditions. This protects the ESC from damage.
The built-in super BEC allows builders to use high-power, high-voltage servos. Maximum output current of up to 15A and output voltage can be switched in three levels of 6V/7.4V/8.4V.
The proven Hobbywing waterproof sensor harness provides an element-proof solution for sensor-based systems. Using a Hobbywing Adaptor (optional) normal/standard sensor motors can be used as well.
Note: Supports normal adaptor-sensored motors, it requires additional adapter wires for other motors.
Vehicles: 1/8th On-road, Short course truck, Monster truck
KV Rating/T Count: With 4S Lipo: KV≤3000; With 6S Lipo: KV≤2400 4278 size motor

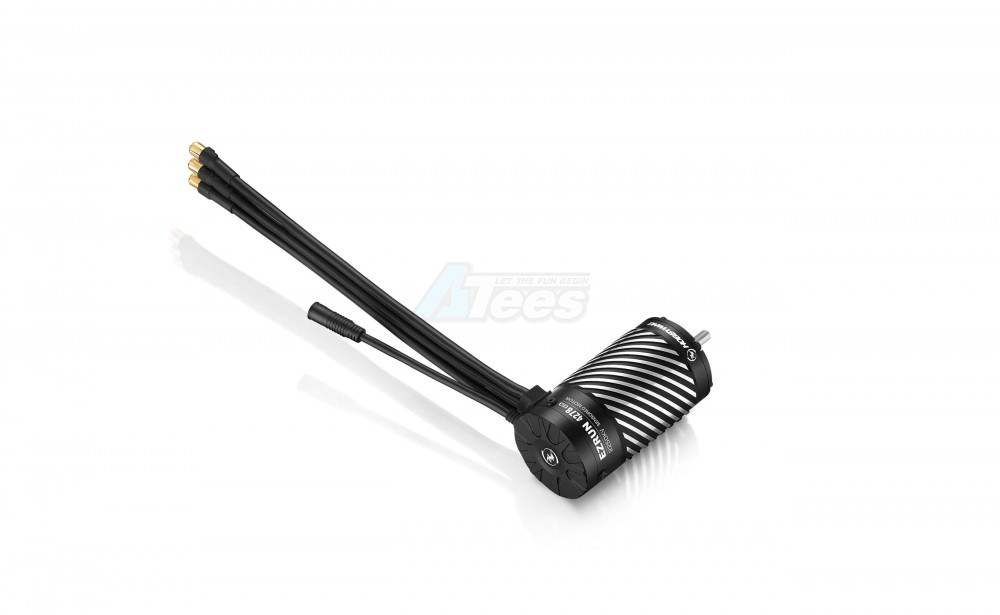

EZRUN 4278SD G2R Motor
Features:
The motors are powerful and linear. When paired with the matching ESC, the performance is unmatched.
These motors are paired perfectly with the EZRun MAX8 G2S. The ESC can identify the matching motor, and provide the best performance. When paired with the matching ESC, the overheat protection can be used to prevent any motor damage from overheating.
The motor supports a maximum speed of up to 60,000RPM, which is a 9% increase compared to the G2 motor. The rotor's explosion-proof capability has been further enhanced.
The motor features Hobbywing's patented waterproof design for both the output shaft position and wire outlet housing. Combined with a new type of induction line interface, it achieves an IP67 protection rating, ensuring outstanding waterproof and dustproof performance. It effortlessly withstands various weather conditions and harsh environments.
It adopts high-hardness aluminum alloy CNC shell, high-quality bearings of first-line brands, ultra-thin silicon steel sheets of first-line brands, high temperature-resistant oxygen-free copper wires, and high-toughness alloy output shafts to provide excellent performance for the motor. Performance provides a solid guarantee.
Specification:
Scale: 1/8th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4
Relevant Parameters:
KV Rating: 2250KV
LiPo Cells: 3-6S Lipo
No-load Current(A): 5.3A
Size & Weight:
O.D.(mm): 42
Length (mm): 78
Shaft Diameter (mm): 5
Weight (g): 465g
Front Bearing: D16*D5*T5
Rear Bearing: D11*D5*T5
Other Parameters:
Recommended ESC: EZRUN MAX8 G2S
Vehicle Applications: 1/8th Truck, Monster Truck
Package total weight: 867.00 grams (incl. packaging)
The ESC has power, yet smooth and linear throttle response. This balance of power and control allows drivers to drive their vehicles at the limit comfortably.
Based on the MAX8 G2 ESC, the brand new G2S ESC is equipped with optimized hardware design application such as intelligent freewheeling technology. The stability and reliability of the ESC has been further improved.
The ESC has a built-in Bluetooth module. It allows you to connect to the mobile APP directly without plugging any device. It is simple and convenient to perform parameter settings, data reading, firmware upgrades other operations.
Note: The data includes throttle amount, voltage, current, temperature, speed, etc.
The ESC has a built-in data recording module. Store up to 10 minutes of your most recent run. Using the HW Link V2 App, you can view the data saved to the ESC. In addition, the module allows you to view Real-Time Data from the ESC for bench top testing and viewing of the data outputs.
Note: Due to the transmission distance of bluetooth, the effective distance is only about 5m!
The ESC fan does not run when the ESC temperature is low. The fan automatically turns on when the ESC temperature reaches the preset value. The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.
A frameless fan with patented technology is used. The large flow of air from the side of the fan effectively blows the heat away from the integrated housing radiator to ensure that the ESC is always at the optimal operating temperature.
High level of protection, IP67 excellent waterproof and dust-proof performance. All-weather operation capabilities can cope with harsh environments and various climate conditions.
1/8th power system turbo timing technology. Turbo timing that is adjustable up to 32 degrees. Using turbo allows motor RPM to be increased through advanced ESC electronic timing.
The Capacitor protection prevents damage to the power caps from overheating from overloads or extreme conditions. This protects the ESC from damage.
The built-in super BEC allows builders to use high-power, high-voltage servos. Maximum output current of up to 15A and output voltage can be switched in three levels of 6V/7.4V/8.4V.
The proven Hobbywing waterproof sensor harness provides an element-proof solution for sensor-based systems. Using a Hobbywing Adaptor (optional) normal/standard sensor motors can be used as well.
Note: Supports normal adaptor-sensored motors, it requires additional adapter wires for other motors.
Vehicles: 1/8th On-road, Short course truck, Monster truck
KV Rating/T Count: With 4S Lipo: KV≤3000; With 6S Lipo: KV≤2400 4278 size motor
EZRUN 4278SD G2R Motor
Features:
The motors are powerful and linear. When paired with the matching ESC, the performance is unmatched.
These motors are paired perfectly with the EZRun MAX8 G2S. The ESC can identify the matching motor, and provide the best performance. When paired with the matching ESC, the overheat protection can be used to prevent any motor damage from overheating.
The motor supports a maximum speed of up to 60,000RPM, which is a 9% increase compared to the G2 motor. The rotor's explosion-proof capability has been further enhanced.
The motor features Hobbywing's patented waterproof design for both the output shaft position and wire outlet housing. Combined with a new type of induction line interface, it achieves an IP67 protection rating, ensuring outstanding waterproof and dustproof performance. It effortlessly withstands various weather conditions and harsh environments.
It adopts high-hardness aluminum alloy CNC shell, high-quality bearings of first-line brands, ultra-thin silicon steel sheets of first-line brands, high temperature-resistant oxygen-free copper wires, and high-toughness alloy output shafts to provide excellent performance for the motor. Performance provides a solid guarantee.
