Conversion from BRX01 to BRX01 AWB

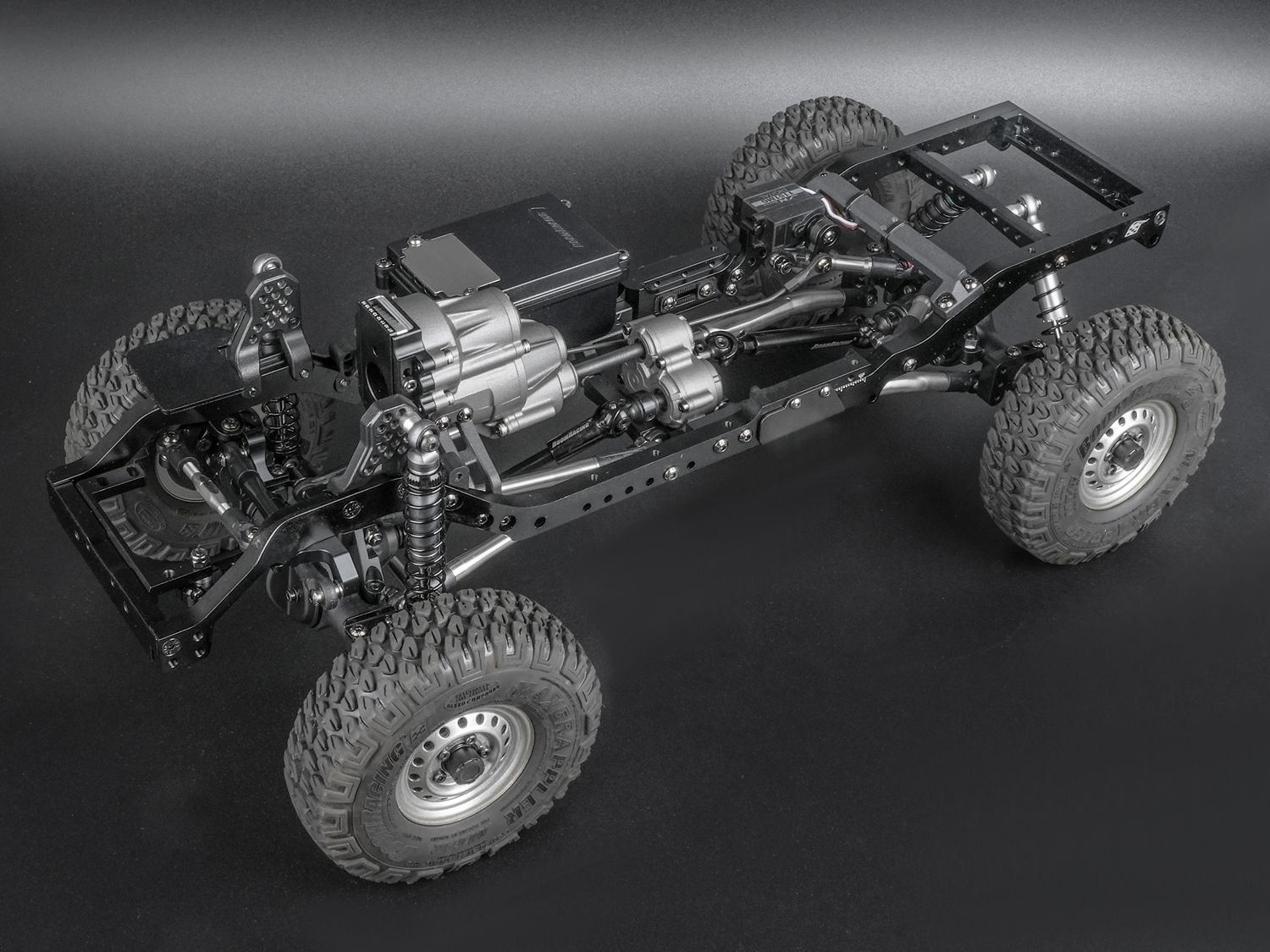

First, the BRX01 AWB and the original BRX01 share most of the same components. That is why the new chassis carries the BRX01 name. The main addition is its adjustable wheelbase. Many parts from the BRX01 AWB chassis are fully compatible with the BRX01.

If you are thinking about refreshing your BRX01 with the latest Boom Racing parts, this guide will walk you through what you need.

The primary difference between the two chassis is the rails. The drivetrain components remain almost identical.

To convert your BRX01 into the BRX01 AWB, you will need:

Front rails
BRLC70211
Rear rails (choose one)
Standard 265 to 285mm / 10.4 to 11.2 Inch BRLC70212
XL 285 to 305mm / 11.2 to 12.0 Inch BRLC70213
2XL 305 to 325mm / 12.0 to 12.8 Inch BRLC70235
Rear lower barrel links
BRLC70232
Rear lower link spline shafts (choose one)
Standard 265 to 285mm / 10.4 to 11.2 Inch BRLC70229
XL 285 to 305mm / 11.2 to 12.0 Inch BRLC70229-XL
2XL 305 to 325mm / 12.0 to 12.8 Inch BRLC70229-2XL
Rear upper links
BRLC70228
Rear center driveshaft (choose one)
Standard 265 to 285mm or 10.4 to 11.2 Inch BRKD003-94
XL 285 to 305mm or 11.2 to 12.0 Inch BRKD003-94 / BRKD003-107 / BRKD003-119
2XL 305 to 325mm or 12.0 to 12.8 Inch BRKD003-119 / BRKD003-142
Mini servo mount
BRLC70223R (plus M3x6 RS x1 and M3x8 RS x2)
Chassis side brackets
BRLC70214 (plus M2.5x6 RS x8)
Slotted plates
BRLC70215
Slotted washers
BRLC70216 (plus M3x12 RS x4)
Center crossmember
BRLC7064B (plus M3x8 RS x2)
Receiver box
BRLC70221 (plus M3x8 CSS x2, M2.5x6 RS x2, M3x8 RS x4)
Front ESC plate
BRLC70222 (plus M3x8 RS x2; not required if using a 2 in 1 motor and ESC)
