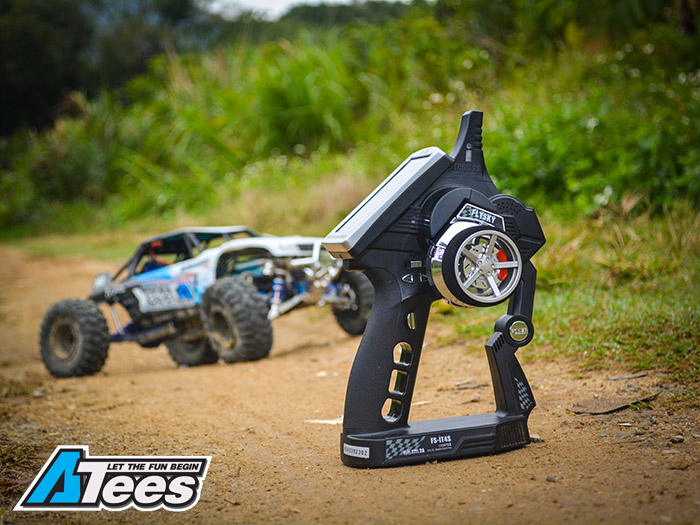

FlySky iT4S - Easiest 2.4Ghz Pistol Grip Transmitter Ever


SHOP THIS PRODUCT

The iT4S is FlySky's latest AFHDS-2A system. This 2.4GHz transmitter comes with a newly designed receiver and other telemetry sensors. The interface of the iT4S is incredibly easy. Almost reminiscent of an iPhone's screen, the iT4S has different options like servo reversing, end point/sub-trim adjustments, steering exponential, speed adjustment, steering mix adjustments, throttle exponential/adjustments, and more! It also has ABS Braking Programming. There are a ton of options to use in the iT4S and it's very useful at explaining what each of these functions do.

The transmitter has a 20 model memory for those of you who like to stock up on a lot of cars. It has a race timer, servo moment display, and key programming. It can handle 4 channels and is suitable for cars and boats.

One of the biggest questions we get is how is the iT4S different than their previous version, the iT4. Well, there are a few key differences.

  1. Supports three types of receiver frequencies:AFHDS, 2A/AFHDS, 2/AFHDS; versus two types of receiver frequencies: AFHDS & 2/AFHDS
  2. The hardware used is based on the FS-i10 hardware, compared to the older iT4 hardware.
  3. 300m Remote Distance, compared to the previous 200m Remote Distance.
  4. RX can click on status bar to use sensor operations, whereas previous versions only show your RX status
  5. Servo Frequency Can Be Adjusted Within 20-400Hz, whereas before it's fixed to a maximum of 100Hz
Here are some specs for the iT4S:

Specifications:
  • Channels: 4
  • Model type: car/boat
  • RF Range: 2.4055 - 2.475GHz
  • Bandwidth: 500KHz
  • RF Channel: 140
  • RF Power: less than 20 dBm
  • Modulation type: GFSK
  • Sticks resolution: 4096
  • Low voltage warning: less than 3.7V
  • DSC port: Micro-USB PPM
  • ST Range: 90 L:45 R:45
  • TH Range: 45 F:35 B:15
  • Weight: 398g
  • Dimensions: 157*116*258mm
  • Servos Not Included

  • Package Includes:
  • FS-iT4S 2.4Ghz Transmitter
  • Flysky 2.4Ghz Receiver
  • FS-CEVO4 Asbus receiver
  • FS-CPD01 magnetic rotation speed telemetry module
  • FS-CPD02 optical rotation speed telemetry module
  • FS-CVT01 external voltage telemetry module
  • FS-CTM01 temperature telemetry module
  • FS-B1200 3.7v lipo battery pack for transmitter
  • USB cable, Soft rubber handle & CD manual

  • Click the Shop Now button to pick yours up, avialable in Silver or Gun Metal!
